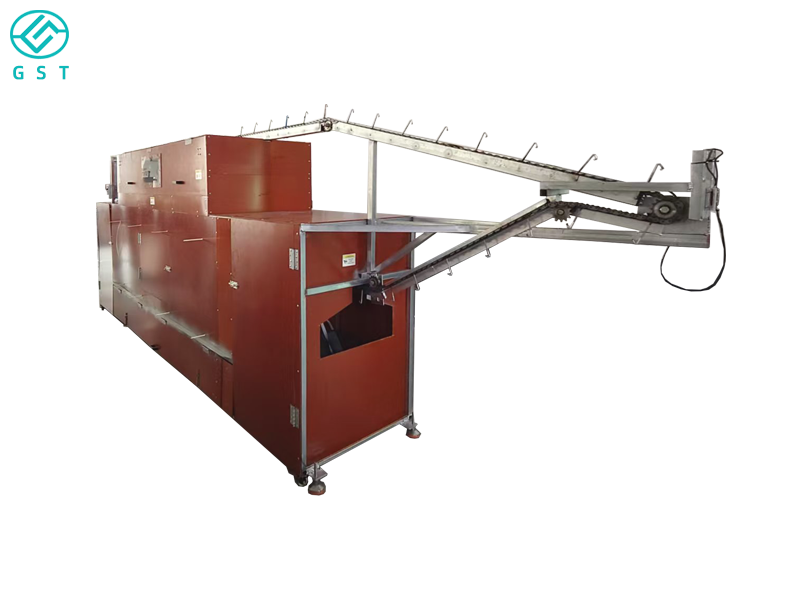

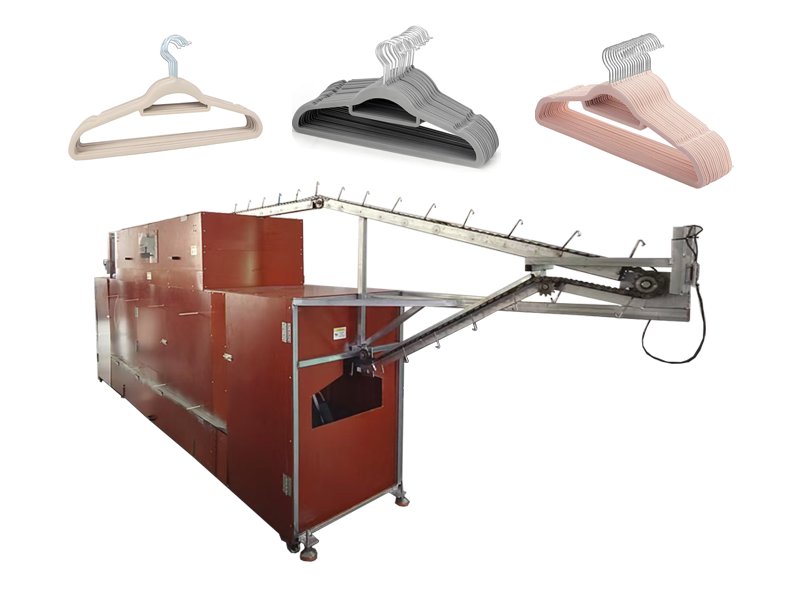

The automatic hanger flocking production line is an integrated automated system designed specifically for the mass production of hanger surface flocking. It integrates automatic hanger loading, elec
The automatic hanger flocking production line is an integrated automated system designed specifically for the mass production of hanger surface flocking. It integrates automatic hanger loading, electrostatic spray flocking, drying and shaping the flock, dust removal and cleaning, automatic unloading, and finished product collection. It automates the entire flocking process from raw hanger components to finished products, significantly improving production efficiency and product consistency.
Core Functions and Technical Highlights:

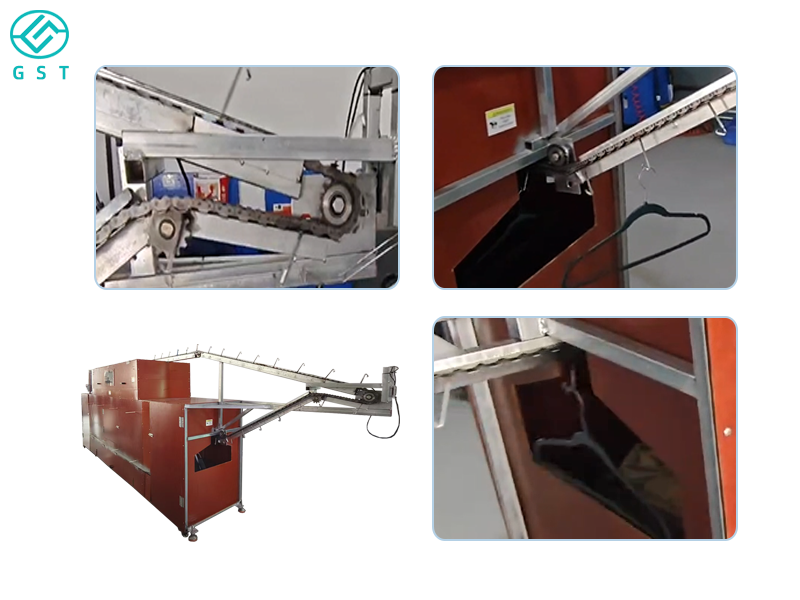

Automatic Feeding and Positioning: Hangers are fed into the flocking station via an automated conveyor system, offering precise, efficient, and stable positioning, eliminating manual loading.
Electrostatic Spray Flocking: Electrostatic spray flocking technology is used in a dedicated flocking chamber to evenly adhere fibers to the hanger surface, resulting in a dense, visually appealing, and tactile flocking effect.
Efficient Drying/Shaping Module: After flocking, the hangers enter a hot air drying tunnel or infrared shaping zone to rapidly solidify the flocking layer, ensuring a secure, crack-free, and flaky flock.
Dust Removal and Finishing System: To ensure the clean quality of flocked products, the equipment is equipped with a dust removal, air blowing, or vacuum cleaning system to remove excess lint and dust, ensuring neat, clean products as they exit the line.
Automatic Unloading and Collection: Finished hangers automatically exit the line and enter the collection or packaging stage. This system can be equipped with a baler or case packer, making it suitable for large-scale production.
Modular Design, Flexible Specifications: The entire line is modularized to accommodate different hanger specifications, flocking colors, and materials, allowing customers to quickly change models and meet small-batch, multi-specification requirements.
Intelligent Control System: Utilizing PLC control and touchscreen operation, it features comprehensive features such as parameter presets, operating status monitoring, fault alarms, and data statistics, facilitating production management and quality traceability.
Technical parameters:
Model Number: GST-WJ006A
Machine size: 40 meters long, 1.5 meters wide, 2.5 meters high
Efficiency: 40-50PCS / minute
Control: microcomputer control system
Electricity: AC220V 50HZ
Gas pressure: 0.4-0.6MPA
Customized Support: Yes
