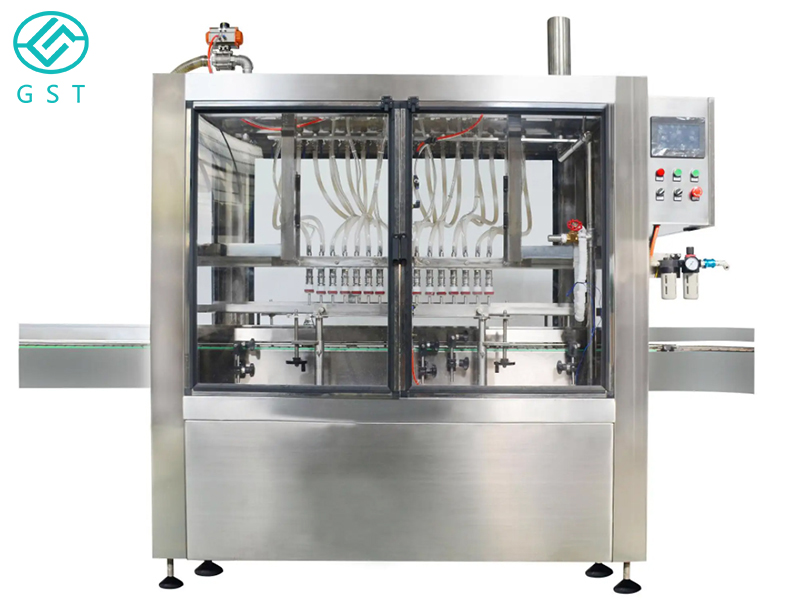

Honey automatic filling machine equipment machine features.
1、It can form an automatic production line for feeding, washing, filling, capping and capping locking for glass and ceramic bottles.
2、The whole machine is made of corrosion-resistant stainless steel, easy to clean and disinfect, in line with the national regulations and requirements on food machinery and food hygiene.
3、The machine adopts imported infrared sensor, with accurate position control.
4、Adopting Jikou PLC and 7-inch touch screen human-machine interface, production parameterized control, simple operation.
5、With height adjustment hand wheel, it is convenient to adjust the height of the filling nozzle to suit different height products.
6、Adopt the overall organic glass outer cover design to prevent impurities into the filling materials, safe and hygienic.
Honey automatic filling machine equipment technical parameters.
Applicable bottle diameter: φ30-80mm
Applicable bottle height: 50-250mm
Filling capacity: 50-1000ml
Number of filling heads: double head filling
Filling method: negative pressure self-flow type
Filling accuracy: ±2mm and other liquid level filling
Production speed: 1000-3600 bottles/hour
Air source: 0.6-0.8MP, 200L/min
Power supply: 220V/50HZ/4Kw
Can be customized according to customer requirements!
