GST-Automatic glue dumping machine for flocked hangers
GST-Automatic glue dumping machine for flocked hangers
GST-Automatic glue dumping machine for flocked hangers
GST-Automatic glue dumping machine for flocked hangers

GST-Automatic glue dumping machine for flocked hangers

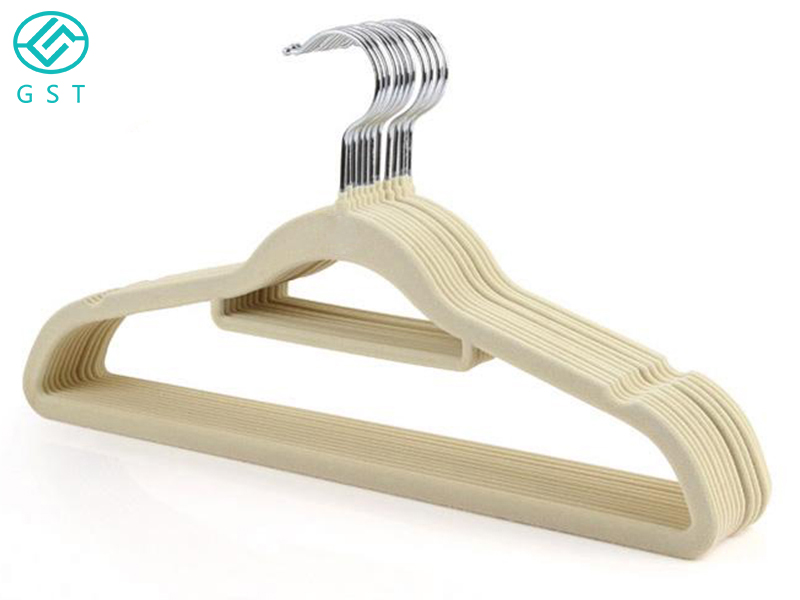

Machine Description. This machine is based on the requirements of the plastic hanger flocking process link and developed, because this production link involves a series of problems such as environmental protection, fire, safety supervision, etc., and the production of the harsh environment, so that some workers are afraid of this work, young people are more focused on the environment, health, hard work and other issues, this product to produce with must quickly improve the automation, and as little as possible to use workers.

Products

  Machine Description. This machine is based on the requirements of the plastic hanger flocking process link and developed, because this production link involves a series of problems such as environmental protection, fire, safety supervision, etc., and the production of the harsh environment, so that some workers are afraid of this work, young people are more focused on the environment, health, hard work and other issues, this product to produce with must quickly improve the automation, and as little as possible to use workers. We have carried out a series of research, development and debugging for this industry, and have now developed a complete automatic flocking line, the whole line is also composed of a single station single machine, and now the glue dumping machine is the front-end machine of the whole line.

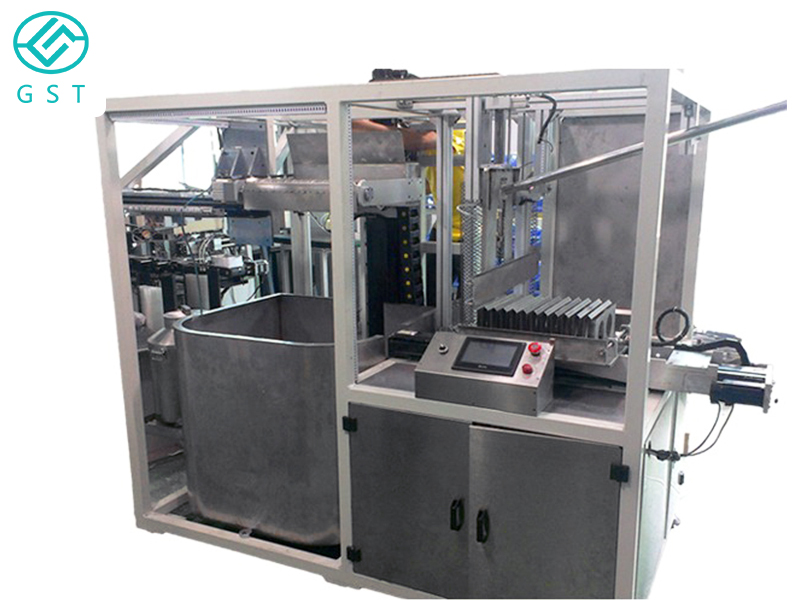

  The function of the machine is: manually hang the hanger on the sliding rod, the machine will automatically take the hanger over to soak the glue, and dump the excess glue, and there will be no glue marks on the surface of the hook; the height of the hanger soaking glue is the same, and the glue on the surface of the hanger is even when the glue is dumped, and there will be no glue flowing due to the glue not being soaked and the remaining glue not being dumped clean; after dumping the glue, it will also automatically enter the flocking machine conveyor belt and then automatically After the glue has been shaken off, the machine automatically enters the flocking box and each hanger is arranged in an orderly manner at intervals to meet the required requirements. The machine shape is all made of square aluminum welded frame, the mechanical processing parts are all processed by the indication, the safety hidden parts are all made of safety protection cover, the appearance is generous and beautiful, strong and durable, corrosion resistant, safe and reliable, the movement part is all made of imported module, imported motor and control system, improve the efficiency, ensure the quality, reduce the cost, give the company win the absolute advantage of peer competition.

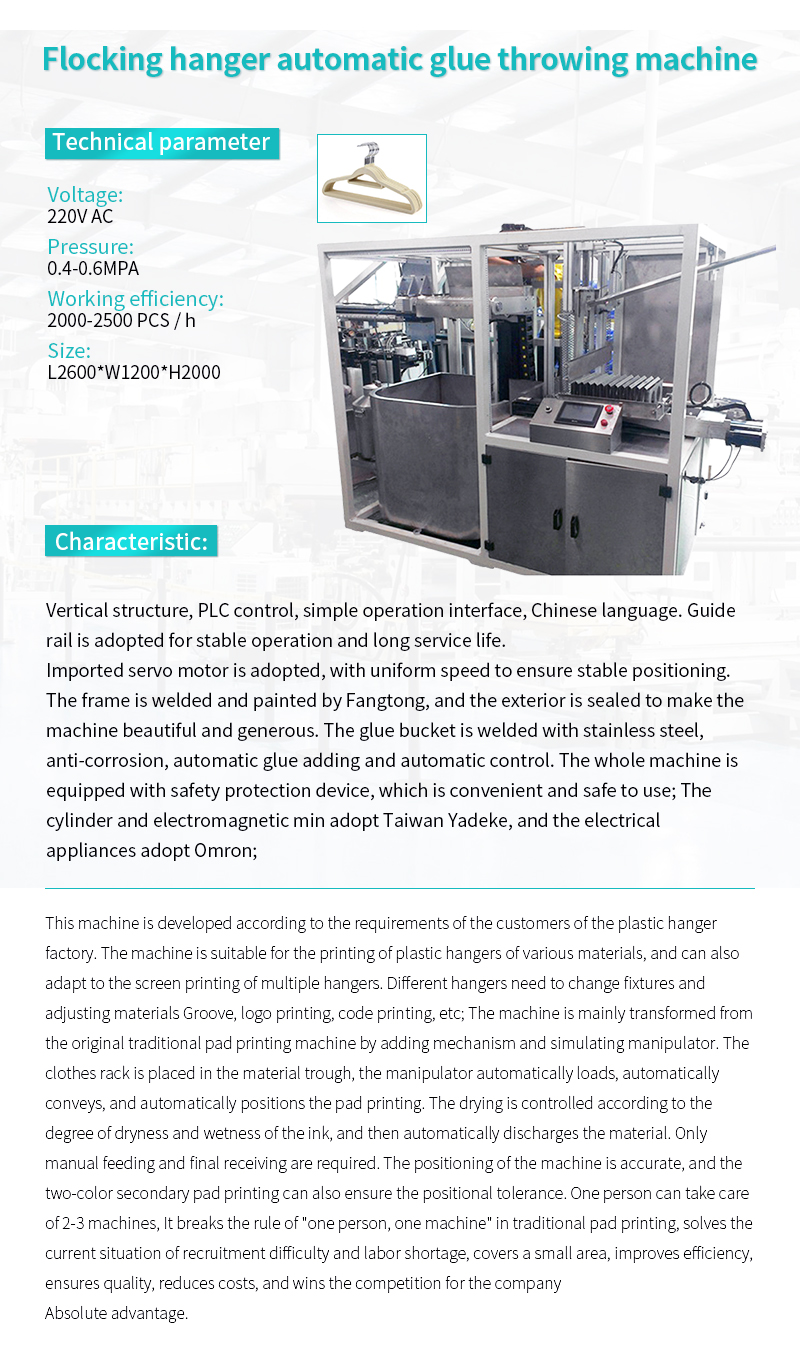

  Technical parameters.

  1. Vertical structure, PLC control, simple operation interface, Chinese language;

  2. Using guide rail, smooth running, long service life;

  3. Imported servo motor, uniform speed, to ensure smooth positioning;

  4. The frame is welded and baked with square pass, and the door is sealed on the outside, which makes the machine beautiful and generous;

  5. The glue barrel is welded with stainless steel, anti-corrosion, automatic glue filling and automatic control;

  6. The whole machine is equipped with safety protection device, easy to use and safe;

  7. The cylinder and solenoid valve are made by Taiwan Atech, and the electrical appliances are made by Omron;

  8. Voltage: 220V AC Pneumatic pressure: 0.4-0.6MPA;

  9. Work efficiency: 2000-2500pcs/ H, size: L2600*W1200*H2000.
