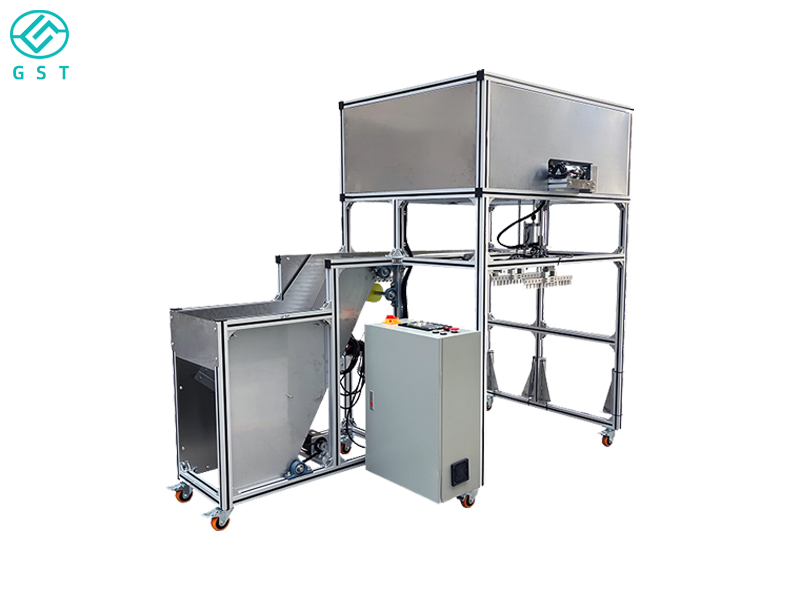

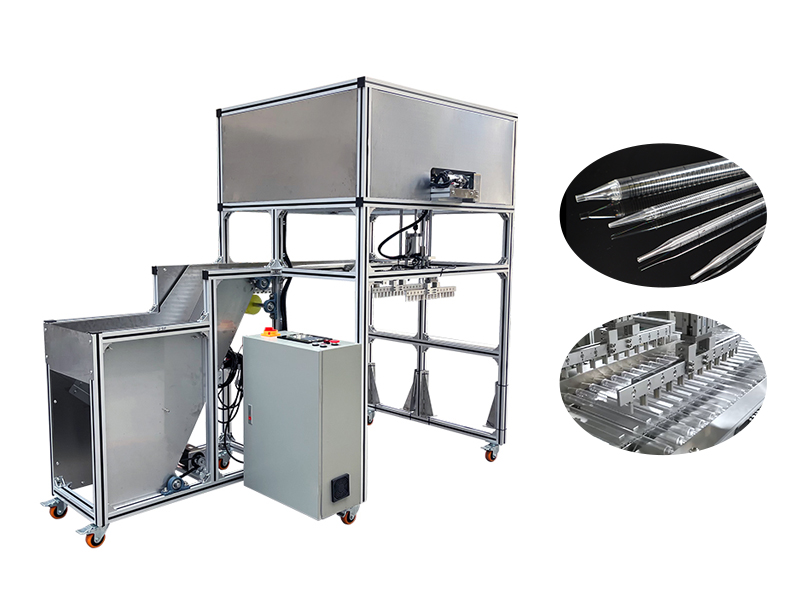

The automatic pipette loader is a highly efficient feeding device designed specifically for laboratory consumables and medical device production lines. It automatically transports, organizes, and accurately directs loose pipettes to subsequent processing steps. This device combines mechanical feeding, precision guidance, and sensor detection to achieve rapid, continuous, and high-precision pipette loading.
Key functions and features include:

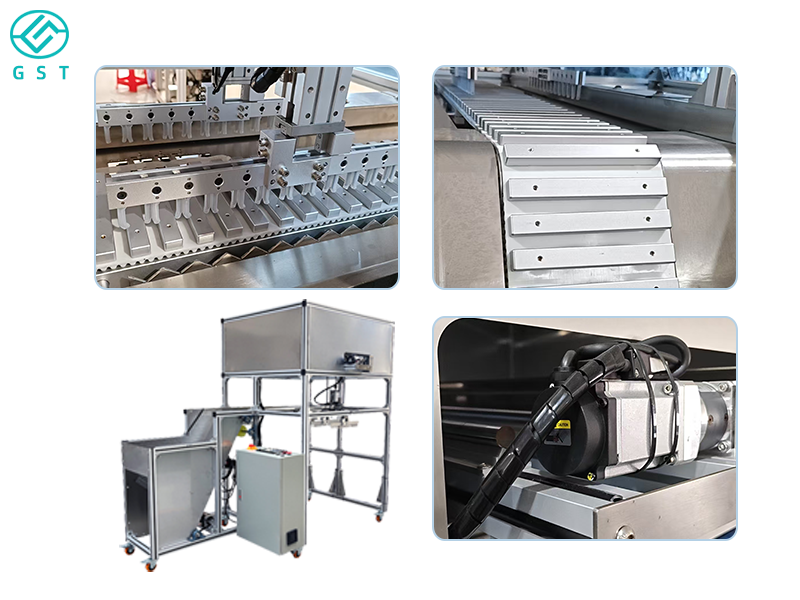

High-speed and stable feeding: Utilizing a robotic arm and guide rail conveyor system, pipettes are automatically sorted, oriented, and delivered to their target locations with precise spacing, ensuring stable reception by downstream equipment.
Compatible with various specifications: It supports interchangeable pipettes of varying sizes, with flexible interchangeable fixtures and guides.
Automatic deviation correction and inspection: Equipped with photoelectric or visual sensors, it detects deviations, misalignments, or abnormalities in pipette position, automatically correcting or rejecting them, improving loading accuracy and reliability.
Modular design for easy integration into the entire production line: Its modular structure and standardized interfaces allow seamless integration with screen printers, welding machines, testing machines, assembly lines, and other equipment, creating a complete automated production line.
Simple controls and user-friendly operation: Equipped with a PLC and human-machine interface (HMI), parameters such as feed speed, interval, feedback monitoring, and fault alarms can be configured, facilitating commissioning and maintenance.
Durable materials and clean design: The machine body is constructed of stainless steel or aluminum alloy, meeting cleanroom requirements and facilitating easy cleaning and maintenance.
Technical parameters:
model number: GST-YYG108A
Pipette capacity: 1-100ml
sizes: L1950*W1100*H2000(mm)
production capacities: 300pcs/min
power (output): 1.5kw
Customized Support: Yes
