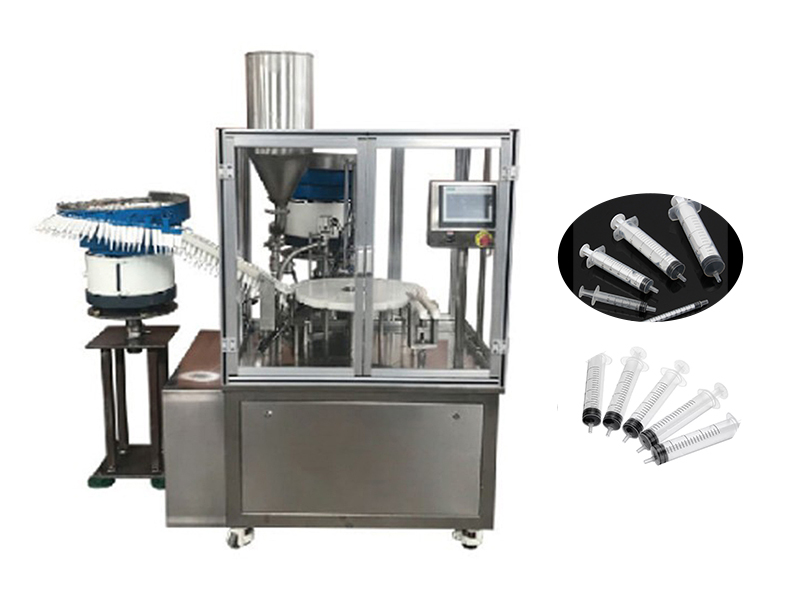

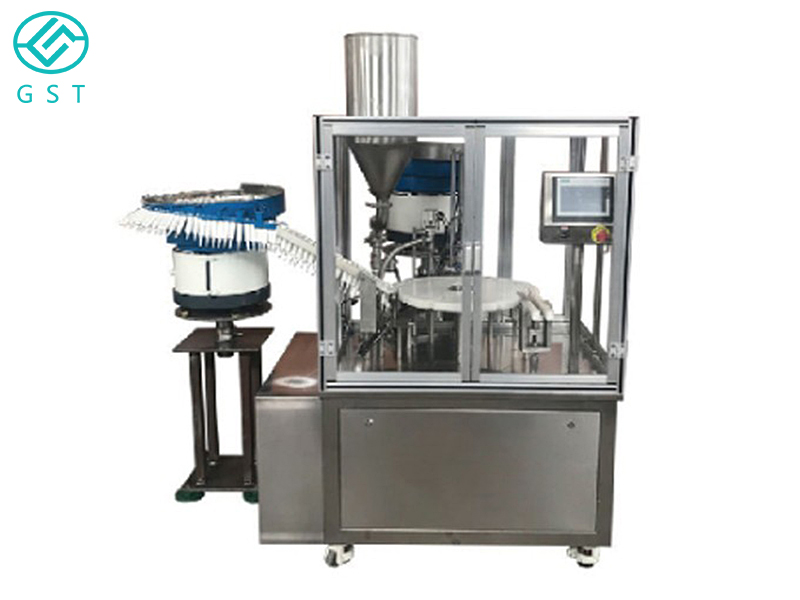

The syringe automatic assembly machine is a highly efficient, intelligent production device specifically developed for the medical device industry, suitable for the rapid and precise assembly of dis
The syringe automatic assembly machine is a highly efficient, intelligent production device specifically developed for the medical device industry, suitable for the rapid and precise assembly of disposable syringes.
Utilizing a fully automated control system, this machine automatically loads, assembles, and inspects components such as syringe barrels, plungers, and seals. This significantly improves production efficiency, reduces manual operations, and effectively reduces labor costs and human error.
Equipped with advanced visual inspection and sensing systems, the machine monitors assembly accuracy in real time, ensuring that each syringe meets the strict standards of the medical industry. Furthermore, the machine boasts a rational design, a compact footprint, and easy operation and maintenance, making it suitable for large-scale continuous production.
Due to its high stability and high production capacity, the syringe automatic assembly machine is widely used by medical consumables manufacturers, making it an ideal choice for implementing intelligent manufacturing and enhancing product competitiveness.
Product Description:

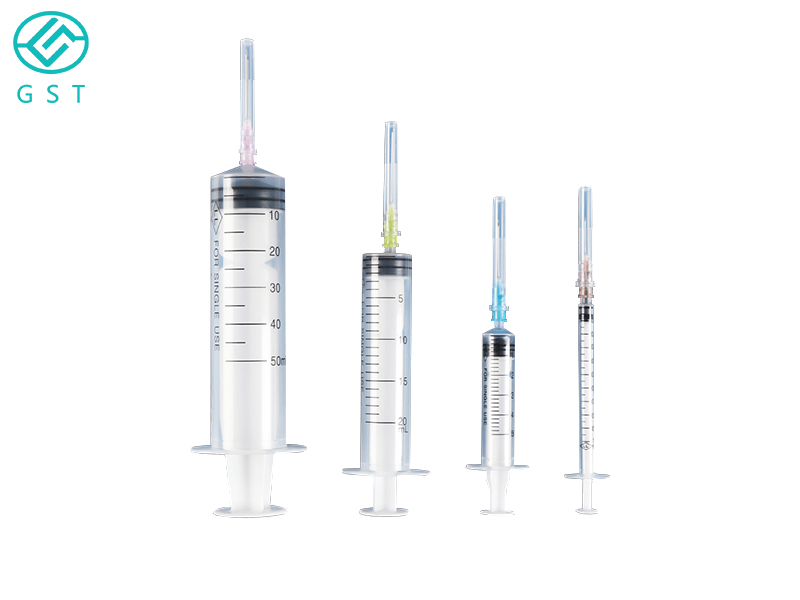

This machine is customized to meet the customer's requirements for syringe barrels, silicone, plungers, bottom caps, and other products. This machine integrates mechanical, pneumatic, electronic, and automated functions, offering high levels of automated assembly, precise accuracy, excellent adaptability, and consistent quality. It is an ideal automated assembly tool for manufacturers of syringes for pharmaceuticals, cosmetics, gels, and liquids.

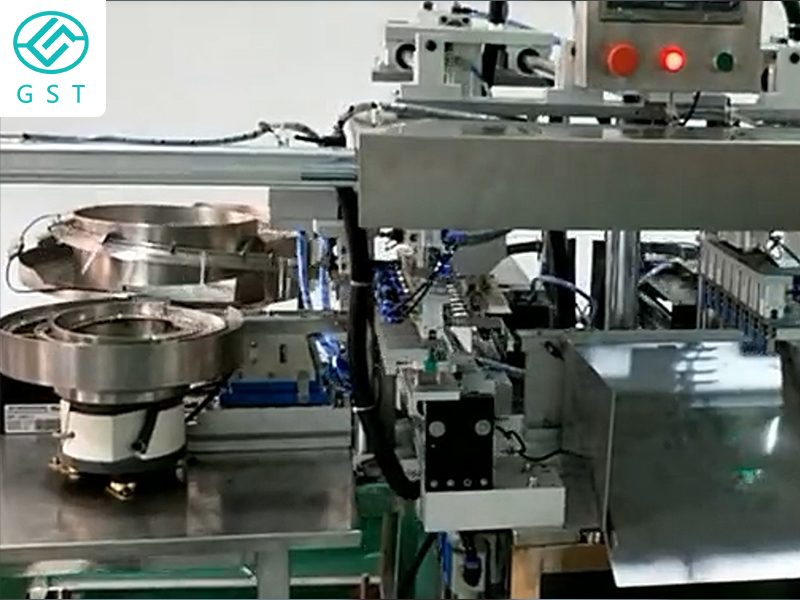

The machine automatically arranges plastic tubes for entry into the main machine, automatically inspects the tubes, automatically discharges the material for silicone assembly, and automatically removes and screws the caps on the vibrating plate before automatically inserting the push rod. The machine boasts stable operation, low defect rates, easy maintenance, and is safe and reliable, complying with GMP standards for pharmaceutical tube production and gel filling.
Product Features:
1) Easy to operate and precise assembly;
2) Components and standard parts are sourced from renowned brands, ensuring stable production;
3) Specially designed joints ensure easy maintenance;
4) Key components are constructed of specialized materials for durability;
5) The frame cover is constructed of 304 stainless steel, meeting GMP requirements.
Technical Parameters:
1) Output: 40-60 pieces/min (adjustable);
2) Filling Accuracy: ±98% (depending on the material);
3) Number of Filling Heads: 2;
4) Finished Product Qualification Rate: ≥99%;
5) Power Supply: 220V, 50Hz;
6) Air Pressure: 0.3Mpa-0.4Mpa;
7) Dimensions: 3200*1200*1800;
8) Weight: Approximately 1000KG.
