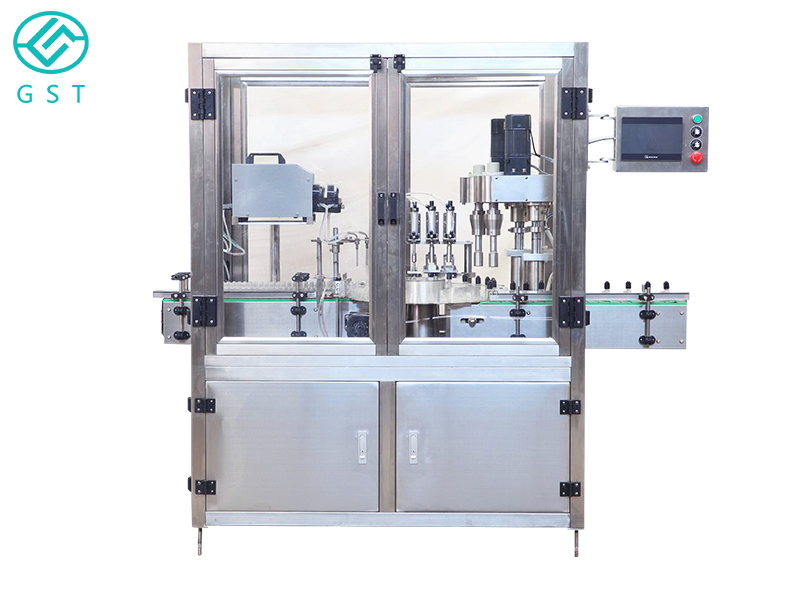

The automatic syringe filling machine is a high-precision automated production equipment specifically developed for the medical device industry. It is widely used in the production of syringes, medi
The automatic syringe filling machine is a high-precision automated production equipment specifically developed for the medical device industry. It is widely used in the production of syringes, medical consumables, and related products. This equipment utilizes a fully automated control system, enabling continuous operation from syringe positioning, dosing, filling, and sealing, significantly improving production efficiency and ensuring consistent and stable product quality.
Utilizing advanced servo drives and a precision metering system, the machine can flexibly adjust the filling volume based on customer needs, with minimal error margins, ensuring the precise dosage of each syringe. Constructed from stainless steel and medical-grade materials, the machine complies with international medical device production standards such as GMP and ISO, offering excellent corrosion resistance and easy cleanability, ensuring a safe and hygienic production process.
The automatic syringe filling machine is also equipped with an intelligent human-machine interface (HMI) for easy operation. It features fault alarms, automatic detection, and data logging, providing strong support for manufacturers to achieve digital and intelligent management. Whether for large-scale production or customized applications, this equipment can meet the diverse application needs of different customers.
Choosing an automatic syringe filling machine not only reduces labor costs and human error, but also significantly increases production capacity and product qualification rates, making it an ideal choice for medical device manufacturers seeking automation upgrades.
Product Description:
This automatic production line is based on the customer's existing semi-automatic syringe filling line. It integrates mechanical, pneumatic, and automated systems to increase the level of automation. Syringe barrels, end caps, and stoppers are automatically loaded via a loading line and vibrating plate. These are cleaned and siliconized, followed by stopper assembly. After completion, the syringes enter the filling area for metered filling. After filling, the end caps are tightened, and the syringes enter the inspection area for testing. Defective products are removed, and qualified products are placed on sterilization trays for tray loading. The finished product is then automatically finished, completing the filling line.
This automatic production line offers stable operation, low defect rates, easy maintenance, safety, and reliability, meeting GMP standards for pharmaceutical tube production and gel filling and packaging.
Machine Features:
1) The production line utilizes high-standard European rigid structure;
2) PLC and touchscreen control for simple and intuitive operation;
3) High-efficiency electronic cams and precision mechanical cams unify the main drive, improving stability and durability;

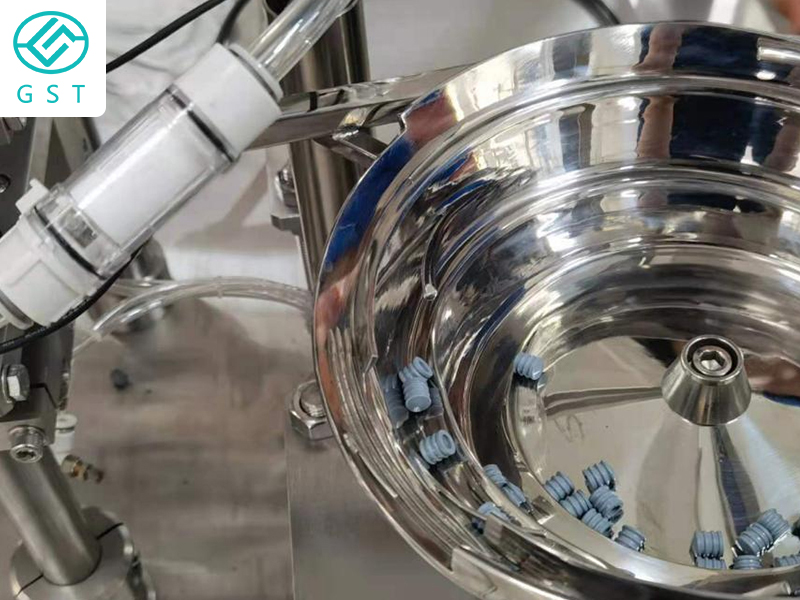

4) Vibration feeding improves feeding efficiency.
Technical Parameters:
Power Supply: 380VAC, 50/60Hz, 2/3 Phase;
Power: 1.5kW
Operating Speed: 150-200 pcs/min
Machine Weight: 5000kg
Air Supply: 5-6kgf/cm²
Dimensions: L6800*W1400*H1800mm
