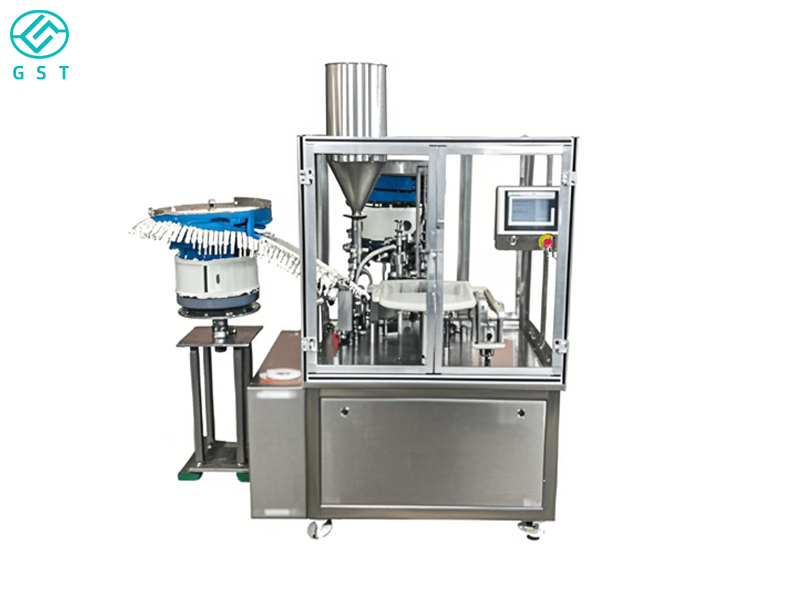

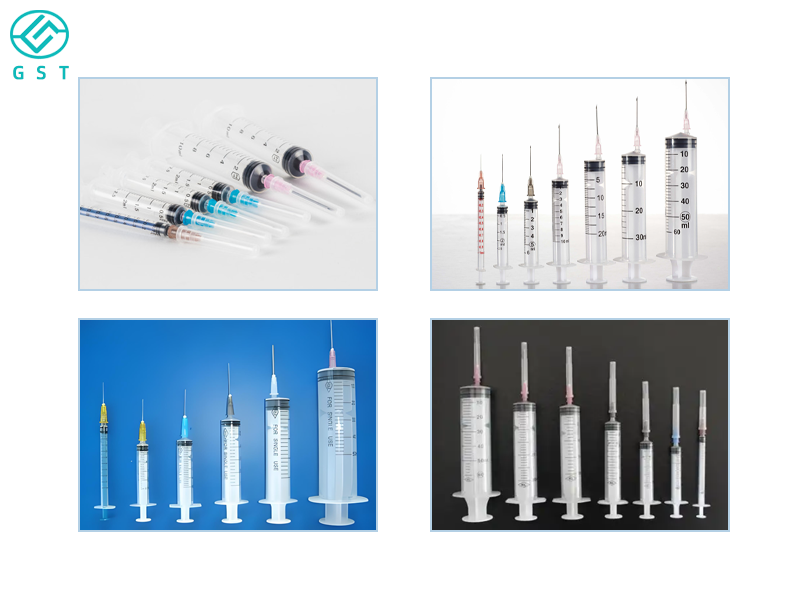

The syringe automatic assembly machine is a highly efficient and intelligent assembly device designed specifically for the medical device industry. It is suitable for the automated assembly of disposable syringes, insulin syringes, prefilled syringes, and other products.

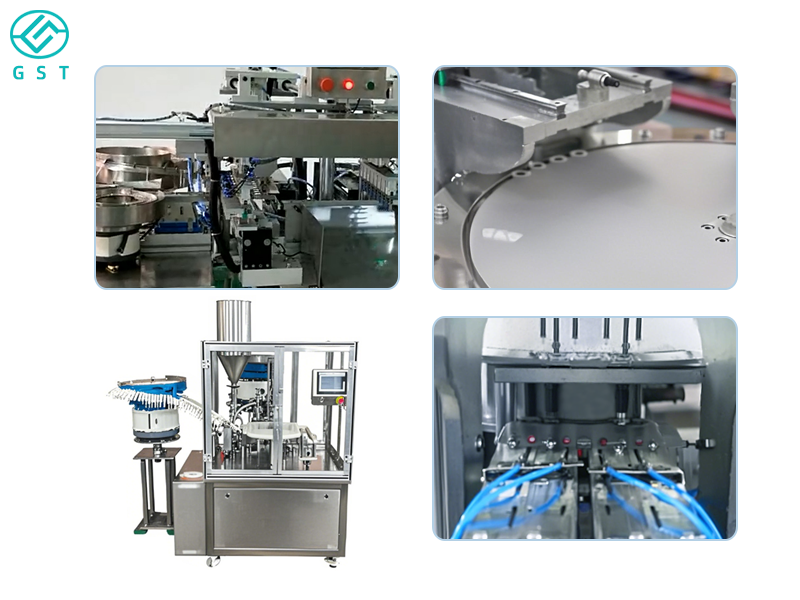

The machine utilizes a modular design and a fully servo-driven system, enabling fully automated and precise assembly of multiple processes, including syringe barrels, needle caps, plungers, and rubber stoppers. It also integrates automated inspection, counting, and rejection functions to effectively ensure product quality.
Equipped with advanced visual recognition and position correction systems, the machine provides real-time monitoring and data feedback for key assembly steps, ensuring high consistency and stability in the finished syringe assembly. The fully enclosed production process complies with medical device manufacturing standards such as GMP and ISO13485, minimizing the risk of contamination from human contact.
The human-machine interface (HMI) allows for flexible adjustment of production parameters and supports rapid changeovers for multiple syringe specifications, significantly improving production efficiency and reducing labor costs. Whether operating small or medium-sized batches or large-scale production, the syringe automatic assembly machine provides an efficient, safe, and intelligent one-stop solution for medical consumables manufacturers.
Product features:
1) The machine is easy and simple to operate, accurate assembly;.
2)Components and standard parts are made of famous brand, stable production;.
3)Each joint part is specially designed for easy maintenance.
4) The key parts are made of special materials, durable.
5) The rack sealing plate is made of 304 stainless steel, which meets the GMP requirements.
Technical parameters:
1)Output: 40-60 pcs/min(adjustable).
2) Loading accuracy: ±98% (according to the material distinction);.
3) Number of filling heads: 2 heads.
4)Qualified rate of finished products: ≥99%.
5)Power supply: 220V, 50Hz.
6)Air pressure: 0.3Mpa～0.4Mpa.
7)Overall dimension: 3200*1200*1800.
8)Weight: about 1000KG.
