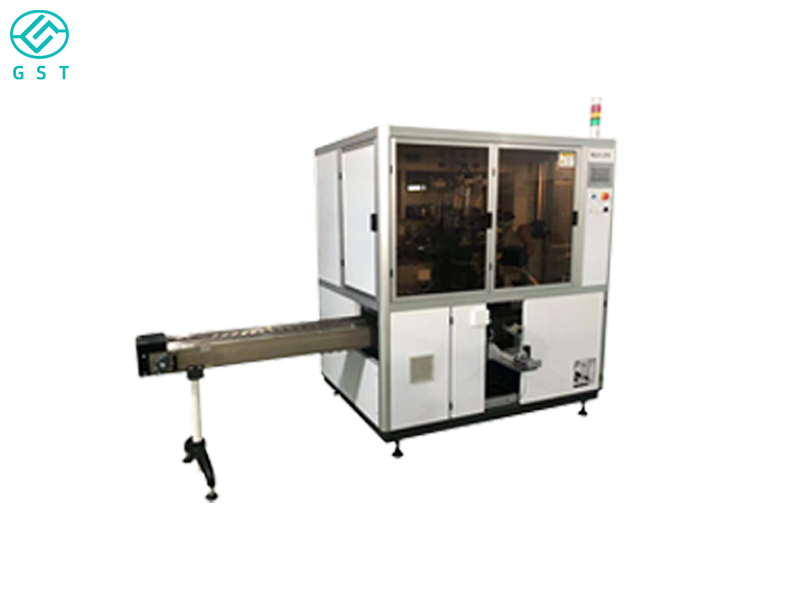

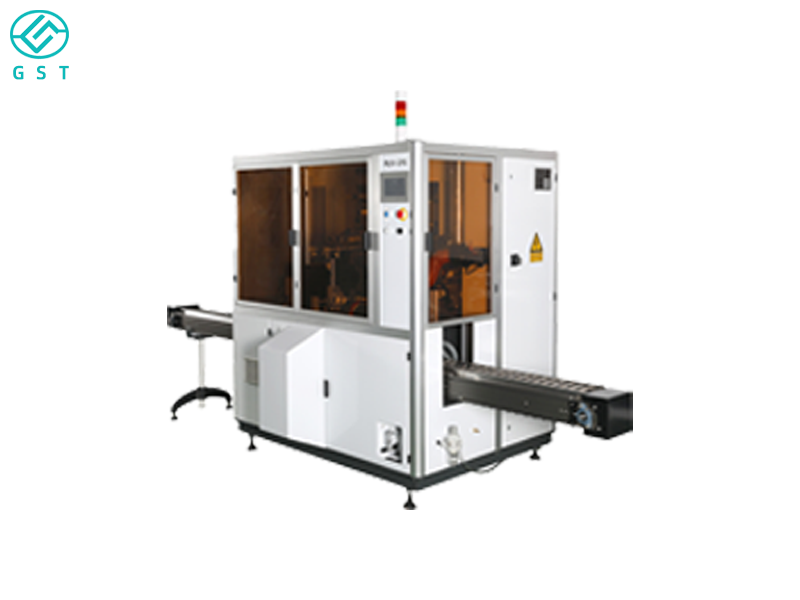

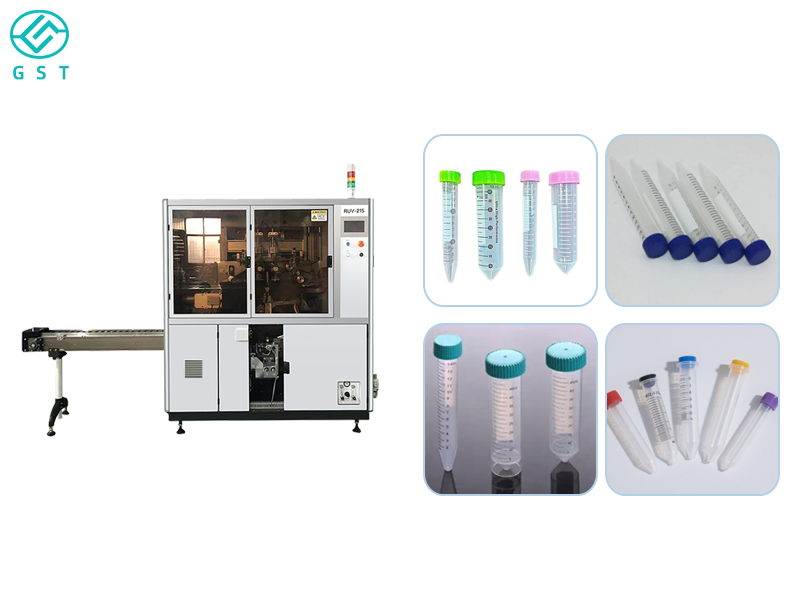

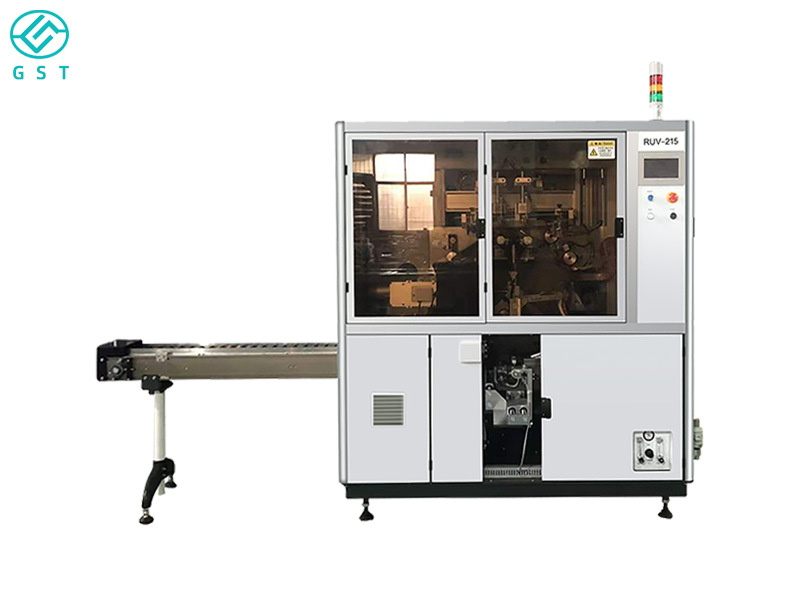

The Centrifuge Tube Curved Surface Automatic Screen Printer is a high-precision automated printing machine designed specifically for centrifuge tubes and other cylindrical and bioplastic tubes. Its core function is to produce high-quality, repeatable screen printing on the curved surfaces of tubes. It is widely used in laboratory consumables, medical devices, and life sciences.
This machine integrates the following processes: automatic loading → positioning and rotation → precision printing → drying and curing → automatic unloading, enabling unattended continuous operation. During the printing process, the centrifuge tubes are rotated around their axis by a fixture or rotating mechanism, ensuring an even distribution of ink across the curved surface, ensuring a clear, sticky, and ghost-free printed image.
Key Features Include:

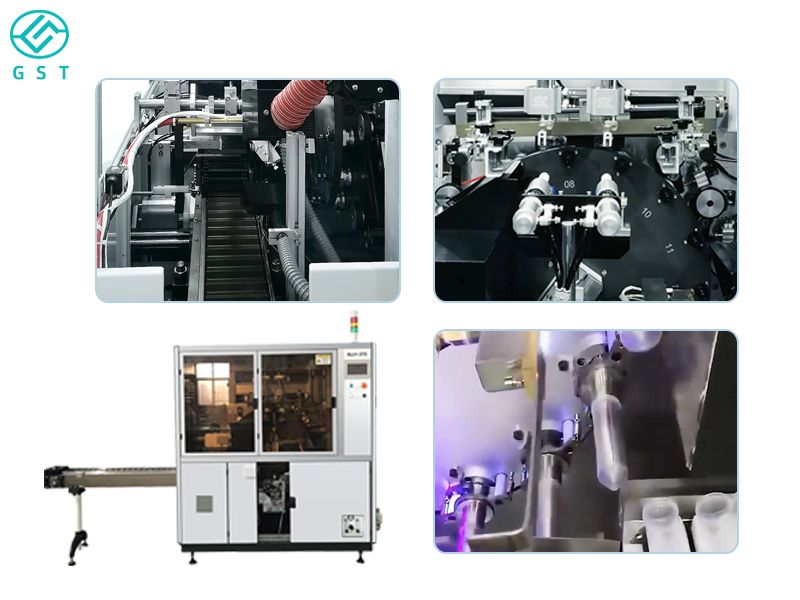

Automatic Loading and Feeding: The machine's built-in automatic loading system neatly guides the centrifuge tubes into the printing position, reducing manual intervention and improving production efficiency.
Stable Mechanical Structure: Utilizing a high-rigidity structure and precision bearings, the machine ensures rotational stability and positioning accuracy, resulting in improved printing precision and repeatability.
Easy Stencil/Template Replacement: The stencil or printing film holder features a quick-release design, facilitating layout switching and maintenance for different tube sizes.
Drying/Curing System: After printing, a cold light or hot air drying system is installed to quickly dry and cure the ink layer, adapting to high-speed production.

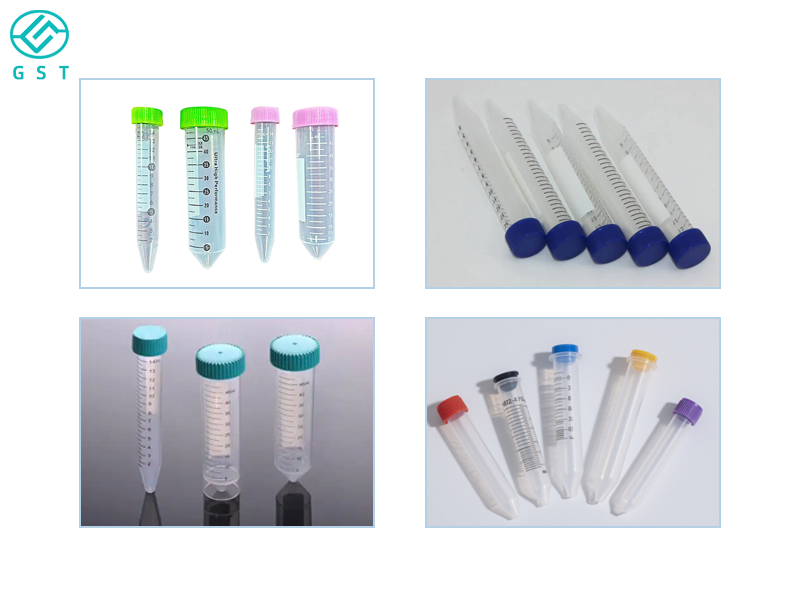

Multiple-Size Compatibility: Supports switching from small to medium-sized tubes (such as 1 ml, 5 ml, 15 ml, 50 ml, etc.) by simply changing the fixture or parameter configuration.
Intelligent Control Interface: Utilizing a PLC + touchscreen control system, it offers easy operation, user-configurable parameters, fault alarms, and real-time monitoring.
High-Efficiency Production Capacity: Operating at high speeds, it can meet mass production needs, significantly reducing printing time and labor costs.
The automatic screen printer for curved surfaces of centrifuge tubes, with its high precision, high automation, and flexible compatibility, provides a stable, reliable, and high-capacity printing solution for laboratory consumables manufacturers. It is a key piece of equipment for achieving consistent automated printing and brand identity.
Technical Parameters:
model number: GST-LXG101A
sizes: L3200*W1600*H1800(mm)
production capacities: 500pcs/min
power (output): 1.5kw
Customized Support: Yes
