Automatic pick-and-place robot for punch presses | High-precision servo-driven automated stamping production line equipment

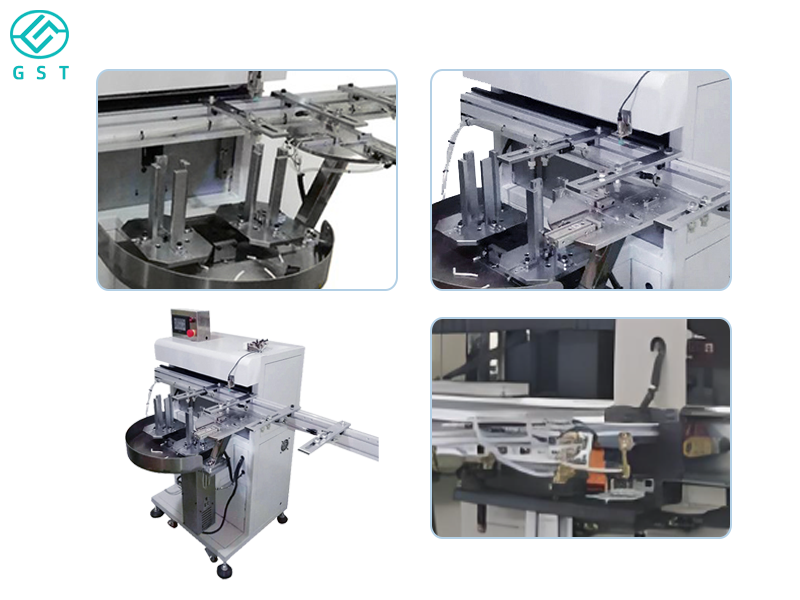

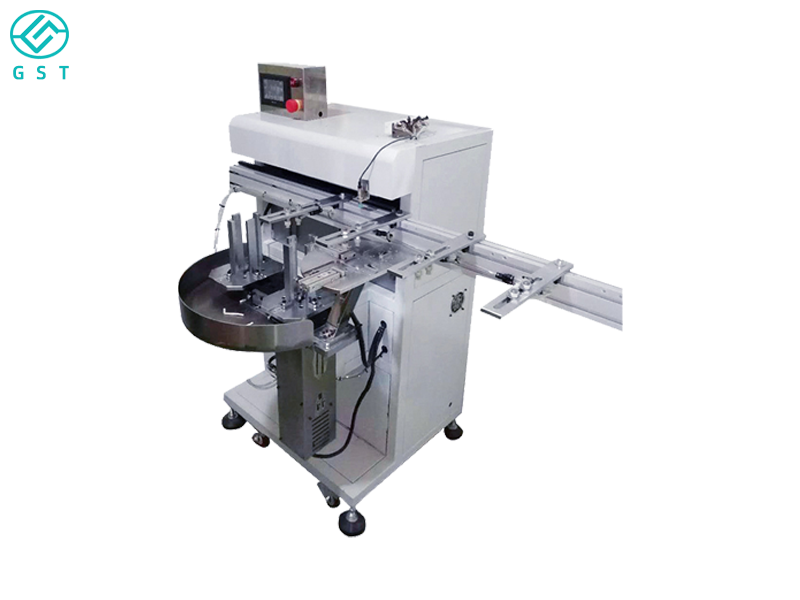

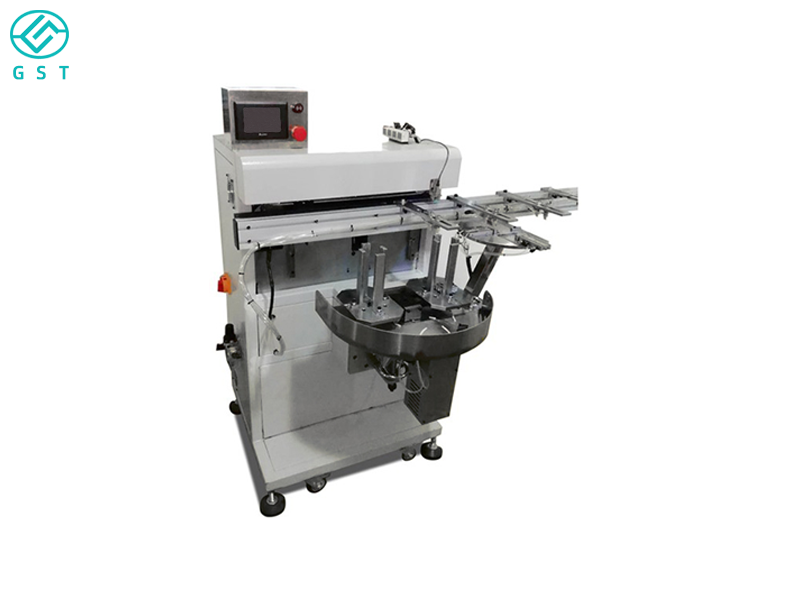

　　The punch press automatic pick-and-place robot features a highly rigid structure, incorporating a servo motor and precision guide rail drive, enabling smooth, precise, and high-speed motion. Driven by an intelligent control system, the robot automatically performs material picking, positioning, and unloading between different punching stations, perfectly coordinating with the punch press cycle to ensure stable and continuous production. This equipment is suitable for automatically loading and unloading various parts, including sheet metal, stamped parts, and molded parts, and is widely used in industries such as home appliances, automotive, electronics, and hardware manufacturing.

　　II. Core Functions and Technical Features

　　High-Speed and Stable Operation: Utilizing a high-performance servo control system and precision synchronization mechanism, it delivers fast response and high repeatability, adapting to a wide range of punch press models and cycle requirements.

　　Intelligent Control System: Equipped with a PLC and touchscreen human-machine interface, it enables multi-station parameter settings, production data statistics, abnormality alarms, and remote monitoring, providing convenient and intuitive operation.

　　Multi-Axis Linkage Design: Supporting four-axis motion (X/Y/Z/R), it enables flexible multi-angle pick-and-place, flipping, and rotation, meeting the handling needs of complex workpieces.

　　Safety Protection System: Integrates multiple protective devices, including infrared detection, air pressure protection, and safety door locks, ensuring the safety of personnel and equipment.

　　Modular and customizable design: Flexible configurations are available to suit different press layouts, workpiece sizes, and production capacity requirements. It supports integration with conveyors, stackers, robotic arms, or vision inspection systems to create a fully automated production line.

　　Technical parameters:

　　Model Number: GST-WJ003A

　　Sizes: L1250*W1100*H1350(mm)

　　Voltage: 220VAC, 50HZ.

　　Pneumatic pressure: 0.4-0.6MPA.

　　Working efficiency: 10-25 times / min.

　　Customized Support: Yes
