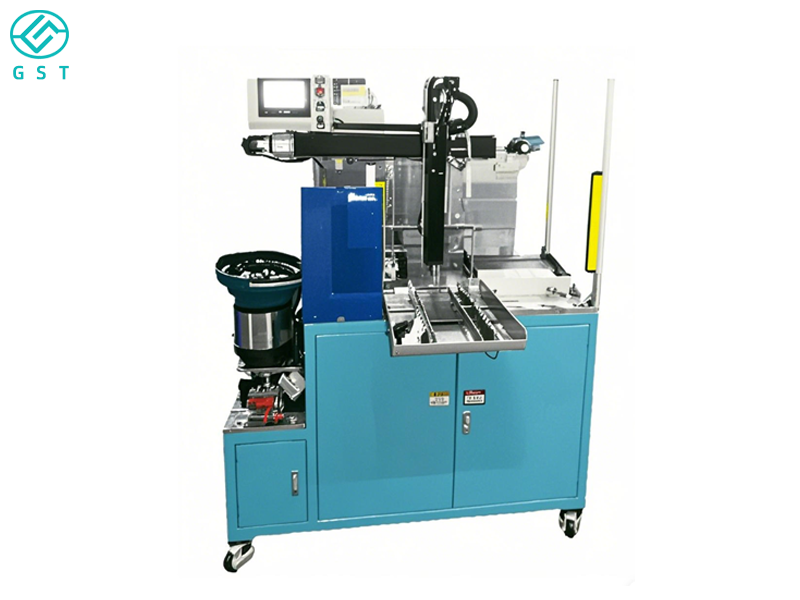

The Rubber Gasket Automatic Pressing Machine is a highly efficient automated assembly machine designed specifically for the rubber gasket press-fitting process in hardware, mold components, and fastener production. It integrates automatic loading, positioning and feeding, gasket pressing, inspection, and rejection, enabling continuous, high-precision, and efficient rubber gasket pressing, significantly improving production efficiency, assembly consistency, and product quality.
Core Functions and Structural Highlights

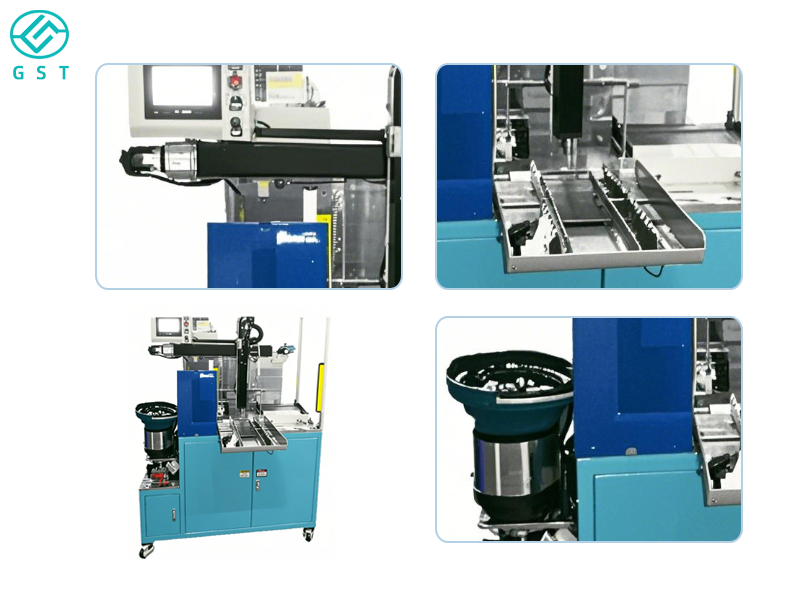

Automatic Loading and Positioning Feeding System: The machine is equipped with a vibrating plate or conveyor belt automatic loading mechanism, which automatically sorts and directs rubber gaskets, metal parts, and other parts to the press-fitting station, ensuring stable production cycles and continuous material feeding.
Precision Pressing Mechanism: Utilizing a servo or pneumatic + servo hybrid drive press head, coupled with a force control system or displacement monitoring device, the press force and depth can be precisely controlled, ensuring accurate positioning and uniform pressure for each assembly.
Quick Changeover for Multiple Specifications: The modular structure allows for quick replacement of fixtures and molds based on gasket specifications and metal part dimensions, accommodating the production of a wide range of product models and enhancing changeover flexibility.
Detection and Rejection Function: Built-in functions such as press depth detection, abnormal force alarm, and missing part detection automatically pause or reject the part if the press fails, the gasket is misaligned, or not compacted, improving yield and assembly reliability.
Intelligent Control and Human-Machine Interface: Equipped with a PLC control system and a touchscreen interface, the press parameters, cycle time, mold changeover program, and data statistics can be set. The equipment also supports production data recording and analysis, providing a basis for lean production.
Clean Structure and Easy Maintenance: Components that come into contact with rubber parts are made of wear-resistant and corrosion-resistant materials. The compact structure and clear access allow for easy cleaning and maintenance, making it suitable for modern hardware manufacturing environments.
Technical parameters:
Model Number: GST-WJ002A
Power supply: 220VAC, 50Hz/60Hz, 20KW.
Air pressure: 0.4-0.6MPA;
Overall dimensions: 1500X*800*1700;
Working efficiency: 15-20 times / min;
Applicable industries: electronic parts, plastic accessories, hardware products industry.
Customized Support: Yes
