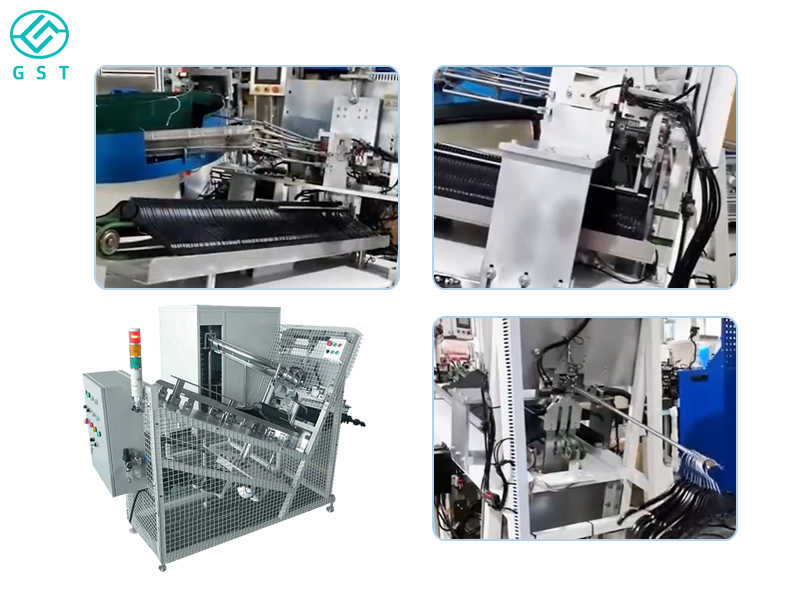

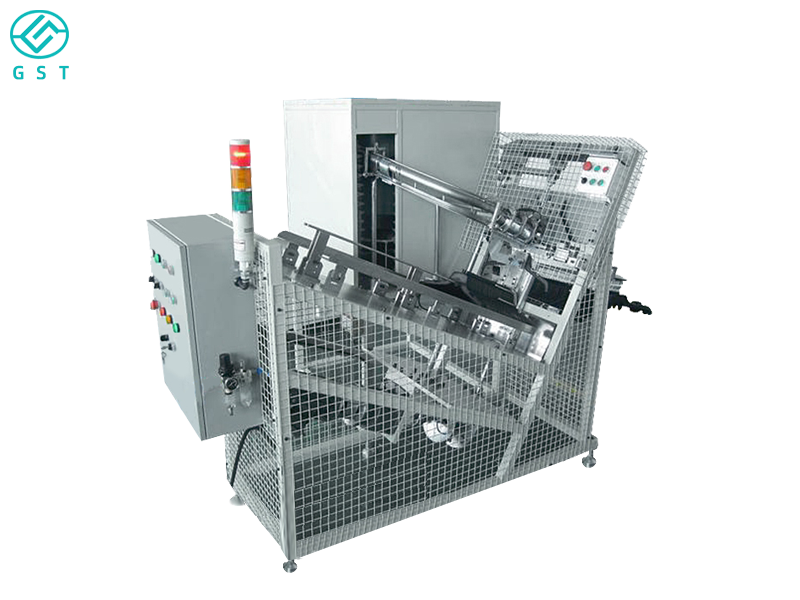

The automatic hanger hook insertion machine is a highly efficient automated device designed specifically for hanger hook assembly. It integrates automatic loading, hanger positioning, hook insertion, lock detection, and discharge, meeting the demands of high-speed and stable hook assembly on plastic, metal, and wooden hangers, significantly improving production efficiency and product consistency.
Key Functions and Structural Highlights:
Automatic Feeding and Positioning System: Hanger components are delivered to the assembly station via an automated conveyor system, ensuring accurate positioning and smooth operation, reducing manual loading and unloading steps.
High-Precision Hook Insertion: A servo- or pneumatic-driven hook insertion mechanism precisely controls the insertion position and depth based on the hanger model and hook type, ensuring a secure hook fit.
Lock Detection: Equipped with sensors or a vision inspection module, the machine automatically detects hook insertion, tilt, and missing parts, automatically rejecting abnormal parts to improve finished product yield.
Modular Quick Changeover Design: The modular fixture and jig structure supports rapid production changeovers for different hanger sizes and hook types, adapting to the needs of high-variety, small-batch, and multi-specification production.
Intelligent Control and Human-Machine Interface: Utilizing a PLC and touchscreen interface, the machine offers user-friendly interaction, making parameter setting, process switching, and production cycle adjustment simple and intuitive. It also features fault alarms, statistics, and data storage.
Sturdy Structure and Easy Maintenance: The machine body is constructed of aluminum alloy or stainless steel, with a well-protected transmission mechanism and easy maintenance, making it suitable for long-term continuous production.
Technical parameters:
Model Number: GST-WJ010A
Sizes: L2000*W1000*H1500(mm)
Production Capacities: 20-40pcs/min
Power (Output): 220V
Customized Support: Yes
