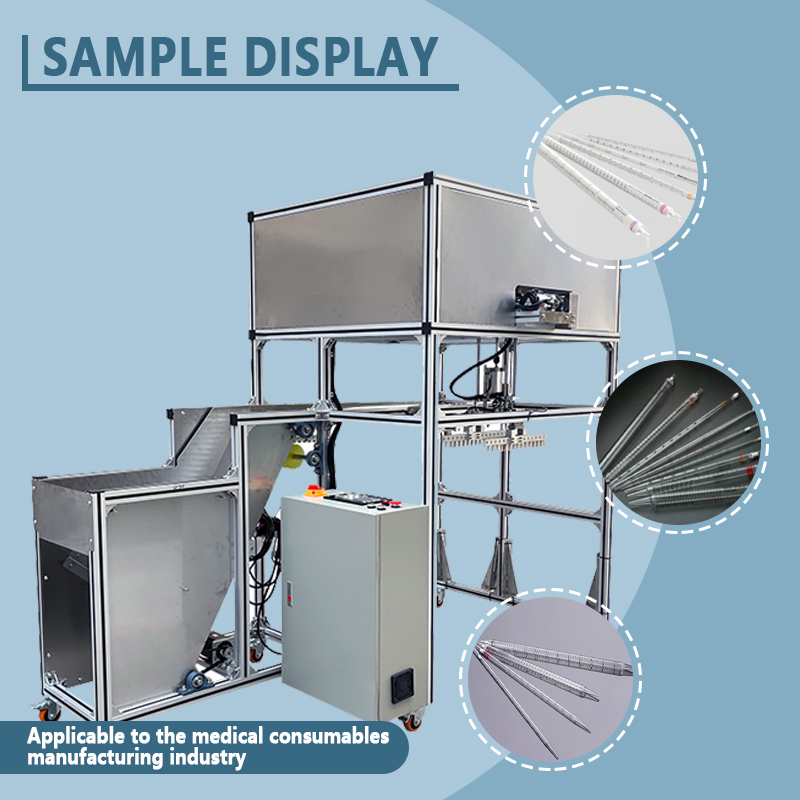

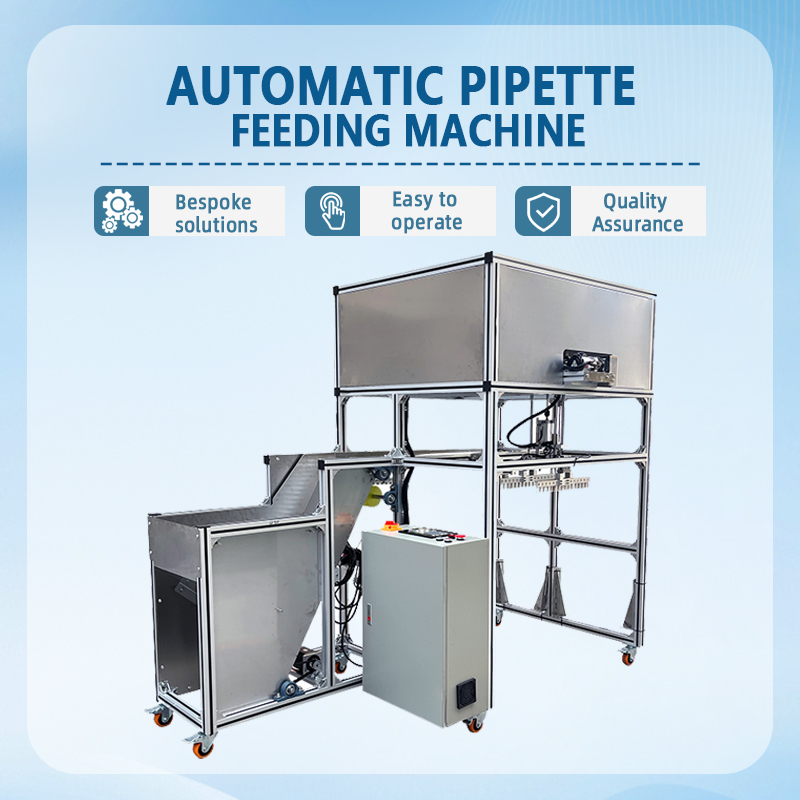

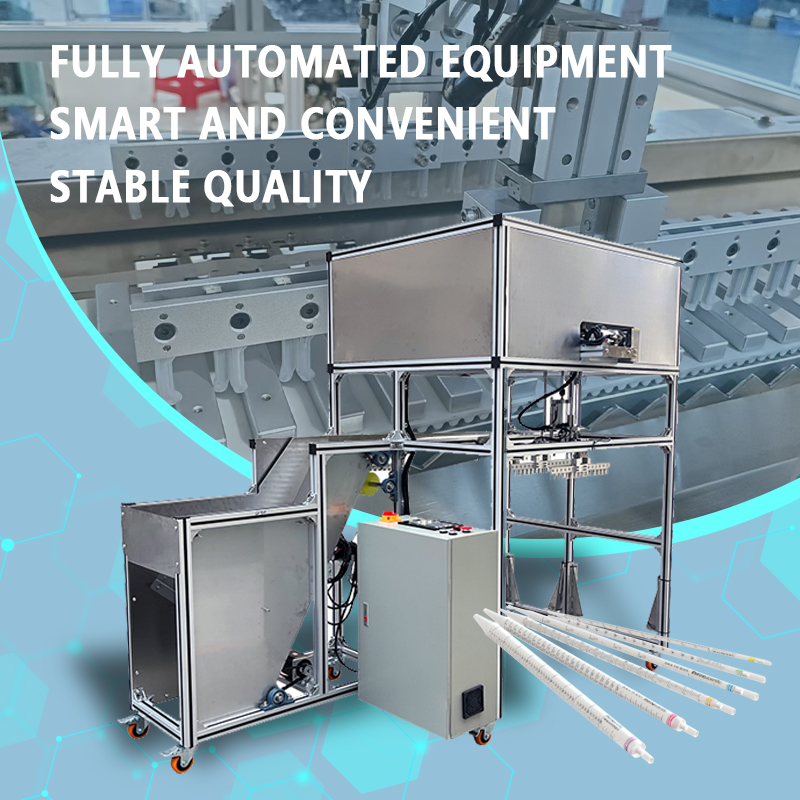

This automatic pipette feeder is designed specifically for the automated sorting and conveying of pipettes (0.1mL–50mL, glass or plastic). It integrates seamlessly with downstream processes such as
This automatic pipette feeder is designed specifically for the automated sorting and conveying of pipettes (0.1mL–50mL, glass or plastic). It integrates seamlessly with downstream processes such as screen printing, labeling, and packaging, completely replacing manual tube placement. By ensuring each slender pipette enters the line in an orderly fashion and is positioned precisely, it helps laboratory consumable manufacturers standardize and optimize their material feeding operations.
The equipment utilizes an automated feeding mechanism—via a hopper lift or vibratory bowl—and employs a multi-stage vibration alignment and directional channeling system to organize the pipettes. They are then precisely discharged to downstream equipment at a set cadence; the entire process is activated with a single button and runs continuously. A single operator can oversee 2–3 feeding machines simultaneously, significantly reducing labor dependency and physical strain.

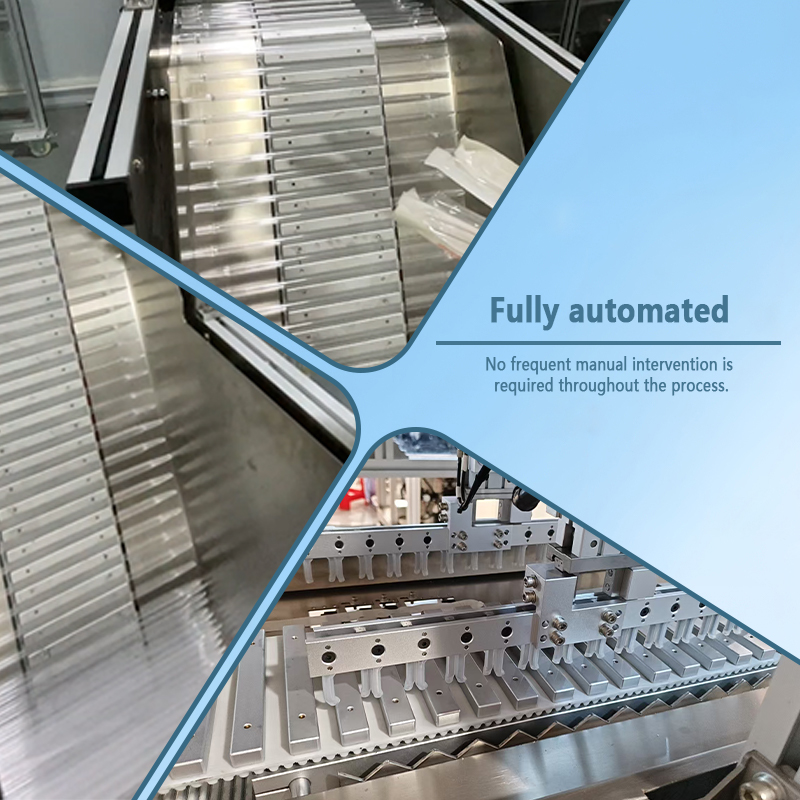

It features anti-static flexible tracks and structures designed to prevent stacking and jamming. The guidance system is optimized for the slender, jam-prone nature of pipettes, resulting in a jam rate of less than 0.1%. Key components undergo wear-resistant and anti-corrosion treatments, enabling 24/7 continuous operation; this ensures an uninterrupted supply and eliminates downtime losses caused by feeding stoppages.
Built-in photoelectric sensors and a PLC system monitor material levels and pipette orientation in real-time, automatically adjusting vibration frequency and replenishment speed. The system triggers an immediate alarm and replenishes stock if the discharge outlet runs low, ensuring a steady supply to downstream processes. It is also equipped with a self-diagnostic system that automatically halts operation and issues alerts upon detecting anomalies, facilitating quick troubleshooting.
Feeding speeds range from 100 to 250 pipettes per minute (depending on diameter and length)—approximately 10–15 times the efficiency of manual placement. A single unit can supply multiple high-speed packaging lines, effectively eliminating production bottlenecks and easily achieving a daily throughput exceeding 150,000 units.
Combining stable alignment technology with intelligent feeding logic, this automatic pipette feeder ensures every slender pipette is perfectly aligned and guided along the correct path. Choose this solution to leave behind the tedium and errors of manual placement and embrace the seamless efficiency of fully automated feeding—accelerating your production line right from the source.
Technical parameters:
Equipment Model: GST-YYG108A
Pipette capacity: 1-100ml
Sizes: L1950*W1100*H2000(mm)
Production Capacities: 300pcs/min
Power (Output): 1.5kw
Customized Support: Yes
