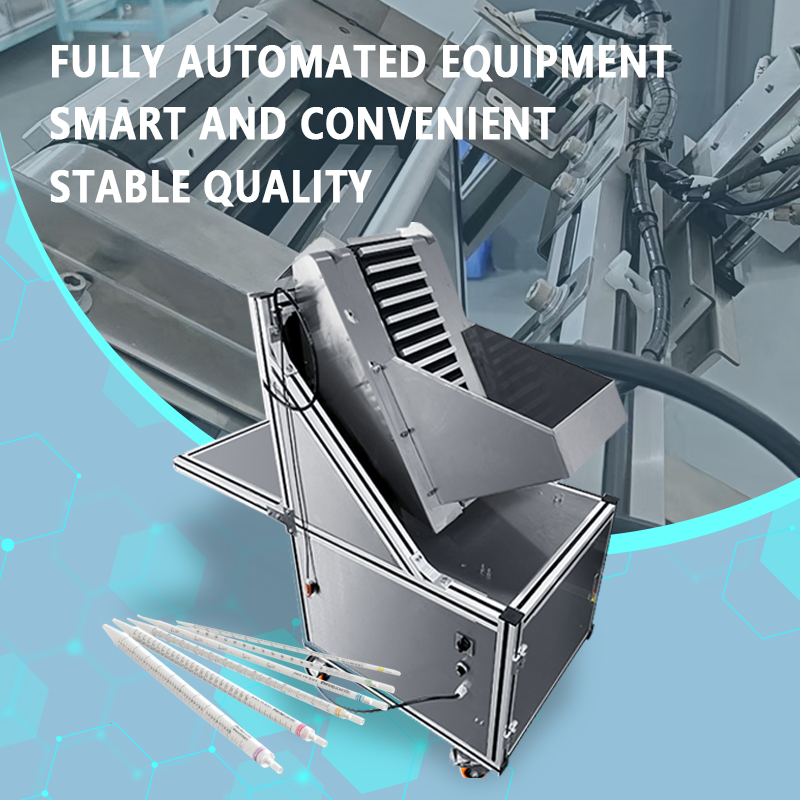

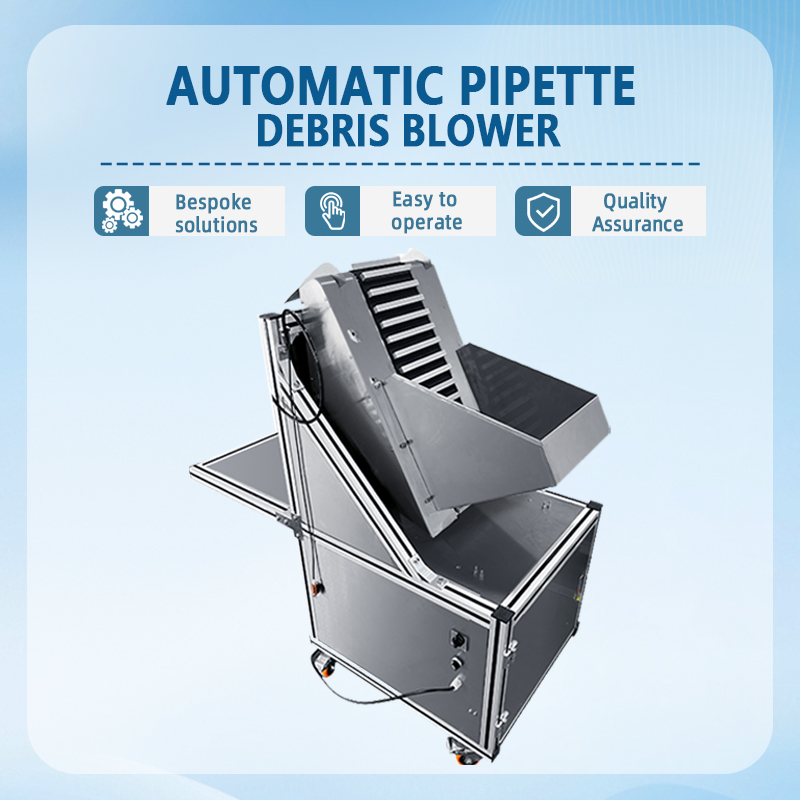

This automatic pipette debris-clearing machine is designed to automatically remove debris and dust from the tips and interiors of pipettes (0.1mL–50mL, glass or plastic) during production. Integrating automatic feeding, precision positioning and air-purging, waste collection, and discharge of finished products, it ensures the interior of every pipette is clean and residue-free. This provides a reliable foundation for subsequent packaging or sterilization processes, helping laboratory consumable manufacturers standardize and optimize cleanliness control.
The equipment automatically feeds pipettes via a vibratory bowl or linked feeder. A precision rotary table then sequentially handles positioning, high-pressure air purging, vacuum-assisted debris removal, and discharge—all without manual intervention. A single operator can monitor multiple units simultaneously, significantly reducing staffing requirements and labor intensity.
Built with a high-rigidity frame and a precision cam indexer, the machine features anti-clogging nozzles and wear-resistant sealing structures. Air pressure and purge duration are digitally adjustable, ensuring thorough cleaning without damaging the pipette body. Key components undergo wear-resistant treatment, enabling continuous 24/7 operation with a failure rate below 0.5%, thereby ensuring stable production line output.
Equipped with a PLC and industrial touchscreen, the system stores parameter recipes (air pressure, purge time, rotation speed) for various pipette diameters and lengths, allowing for one-touch product changeovers. Built-in fiber-optic sensors detect pipette presence and airflow feedback; the machine automatically pauses if material is missing, alarms if a blockage occurs, and signals when the waste bin is full, ensuring safe and controlled production.

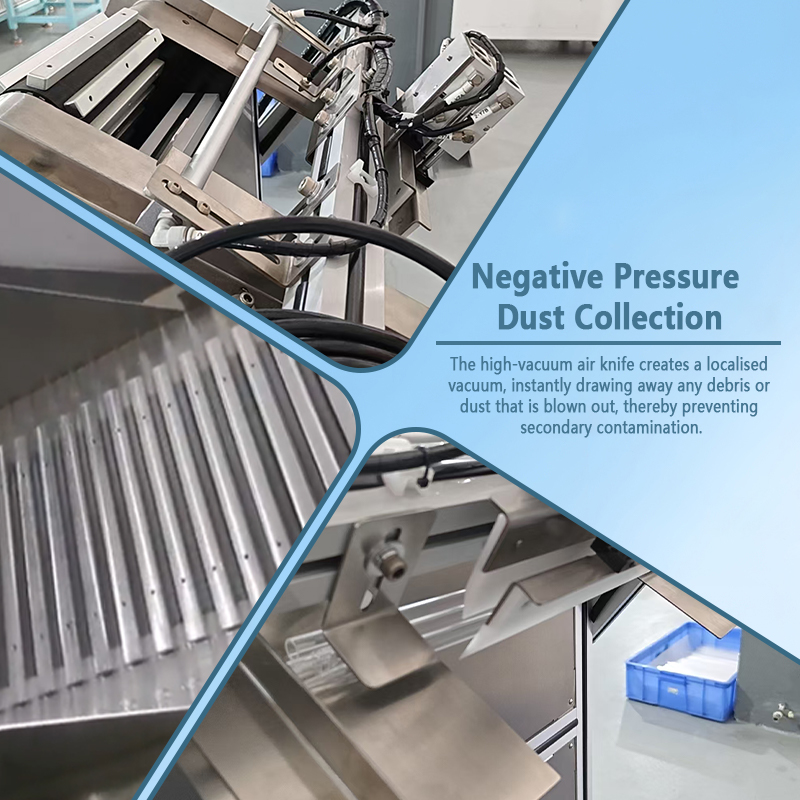

The processing cycle takes just 1–2 seconds per pipette, achieving speeds of 60–120 units per minute—8 to 10 times the efficiency of manual air-gun purging. It also features a sealed waste collection system and high-efficiency filtration to prevent dust dispersion and maintain a cleanroom environment, with a single-unit daily processing capacity easily exceeding 80,000 pipettes.
By replacing tedious manual labor with automated purging, this machine not only boosts efficiency but also ensures consistent, controllable cleanliness standards. Choose it to ensure every pipette arrives at the lab bench free of debris, safeguarding the precision and safety of every pipetting operation.
Technical parameters:
Equipment Model: GST-YYG101A
Pipette capacity: 1-100ml
Sizes: 1500*1000*1500mm
Production Capacities: 300pcs/min
Power (Output): 1.5kw
Customized Support: Yes
