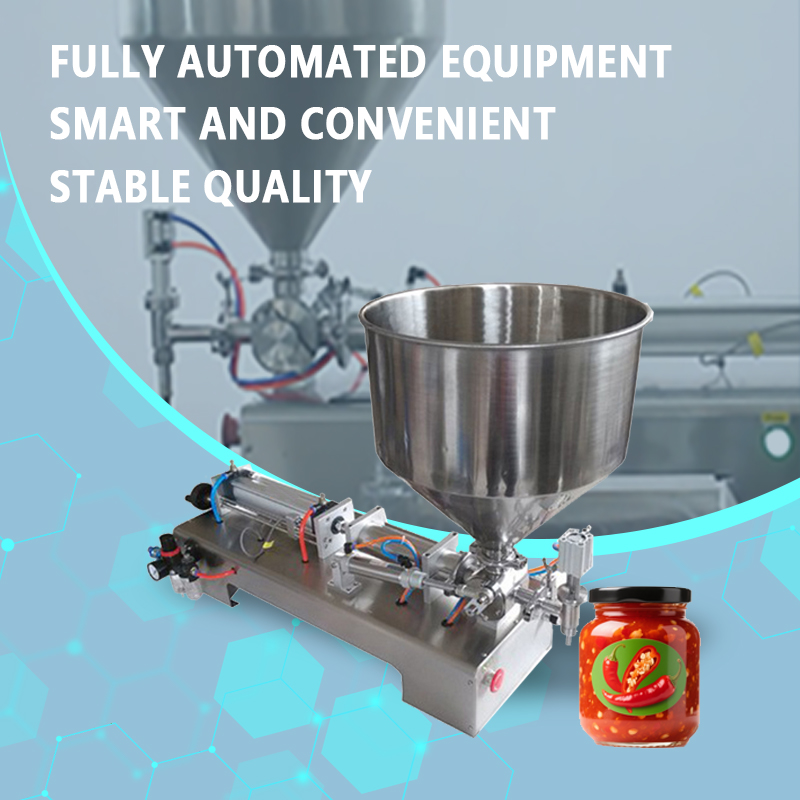

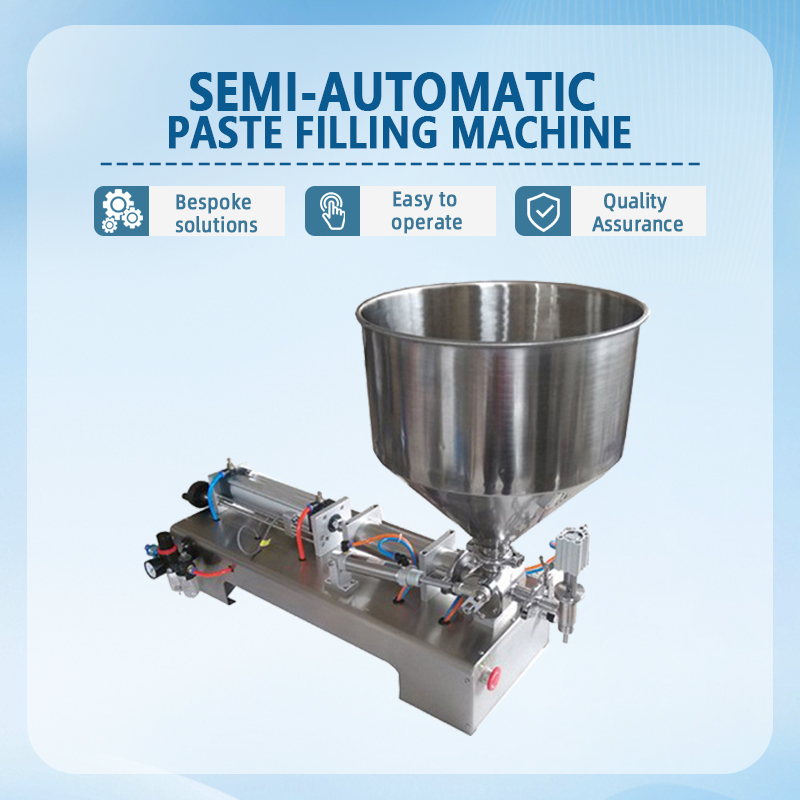

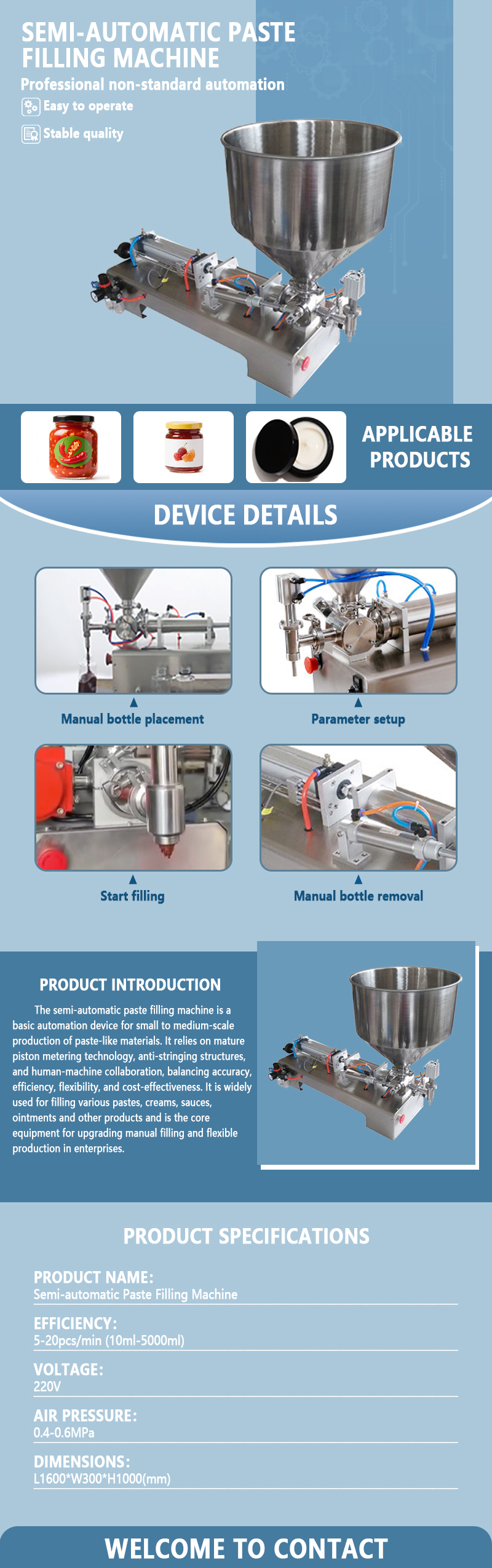

The Guanshentai semi-automatic paste filling machine is specifically designed for the precise dispensing of high-viscosity, high-consistency, and particulate-laden materials. Utilizing a pneumatic piston pump and a check-valve metering system, the machine maintains a filling accuracy of within ±0.5% and supports a filling range of 5g to 5000g. It offers flexible operation via foot pedal or manual trigger, making it ideal for small-batch, multi-variety, and flexible production needs.
Key Advantages of the Semi-Automatic Paste Filling Machine:
Powerful Conveying: Features a large-bore check valve and a reinforced piston rod structure, delivering filling pressures up to 0.6 MPa. It easily handles high-resistance materials—such as pastes, sauces, and gels—without flow interruption or jamming.
Precise Dosing: Combines mechanical hard stops with adjustable-stroke cylinders to ensure excellent dosing repeatability; weights remain consistent from the first to the last unit in a batch, eliminating the need for frequent weighing and recalibration.
Anti-Drip Design: Equipped with a suck-back anti-drip nozzle that automatically retracts residual material after filling. This keeps bottle openings and work surfaces clean, saving material and reducing cleanup time.
Reliable Materials: All product-contact parts are made of SUS316L stainless steel with mirror-polished interior walls. The surface prevents material adhesion and facilitates easy cleaning, meeting GMP hygiene standards for food and pharmaceutical applications.

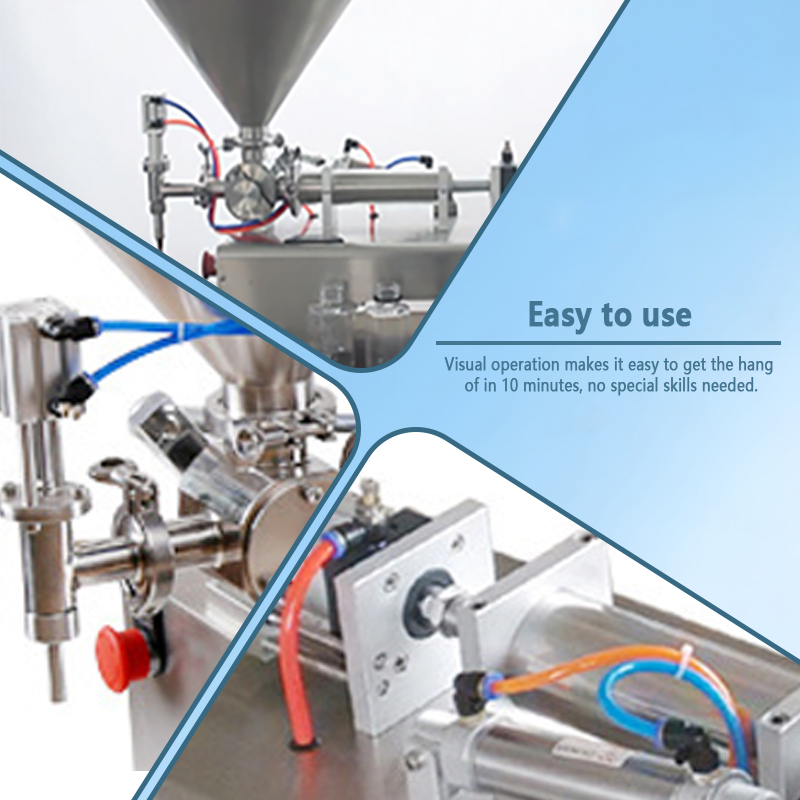

Ease of Operation: The machine requires no complex setup and is ready for use once connected to an air supply. Filling volume and speed can be quickly adjusted via handwheels and flow control valves; general operators can be trained and ready to work in just 10 minutes.
Flexible Mobility: Built on a stainless steel trolley frame with swivel casters, the unit can be easily moved between workstations, saving valuable floor space in the workshop.
Applications for the Semi-Automatic Paste Filling Machine:

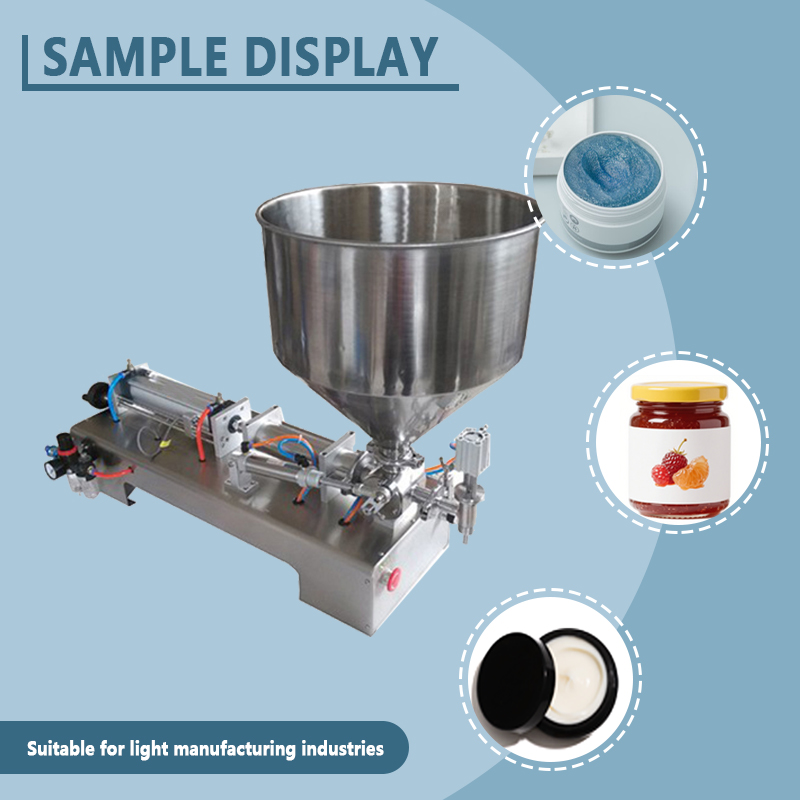

It is widely used for filling bottles, tubes, and jars across various sectors, including the food industry (hot pot base, salad dressing, peanut butter, honey, jam), personal care industry (hand cream, facial cleanser, hair mask, toothpaste), pharmaceutical industry (ointments, gels, medical adhesives), and chemical industry (sealants, grease, AB adhesives). Renowned for its stability, durability, precision, and material efficiency, the Guanshentai semi-automatic paste filling machine is a reliable partner for small and medium-sized enterprises and laboratories handling high-viscosity materials.
Technical parameters:
Model Number: GST-SWYP003A
Sizes: 1600*300*1000mm
Optional models: 10ml -5000ml ;
Power supply: 220/110V 50/60HZ.
Air pressure: 0.4-0.6MPa.
Filling speed: 5-20 bottles/minute (the machine power for the gas source, can meet the large and small enterprises to use);.
Filling precision: ≤±1%.
Customized Support: Yes
