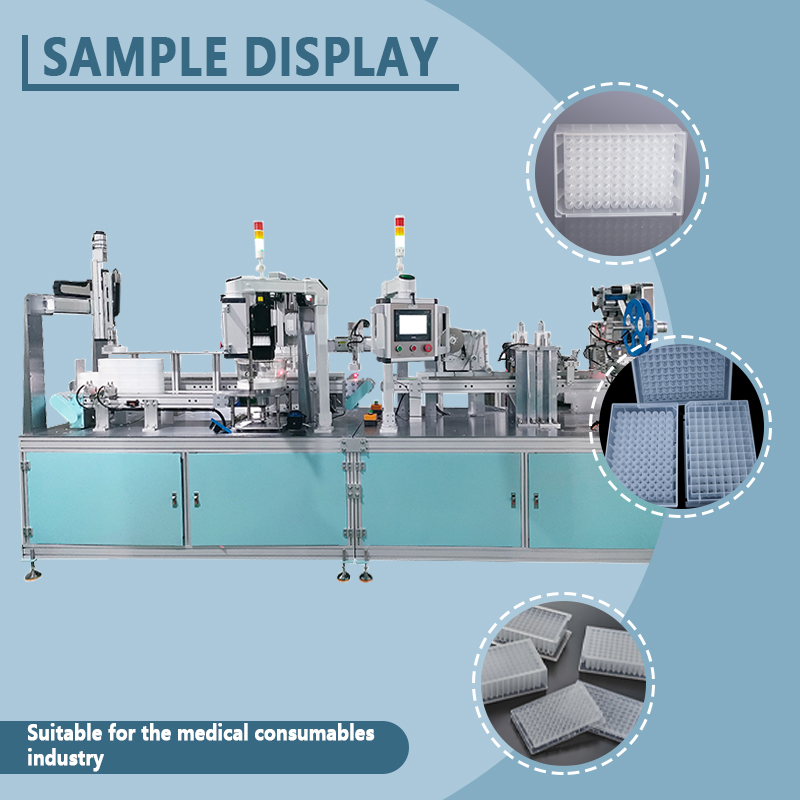

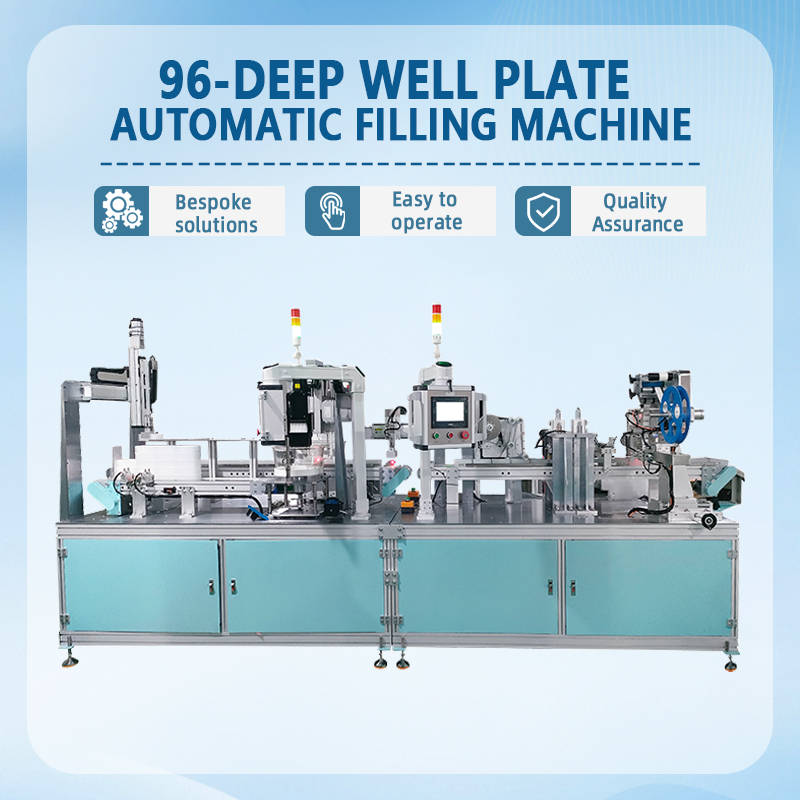

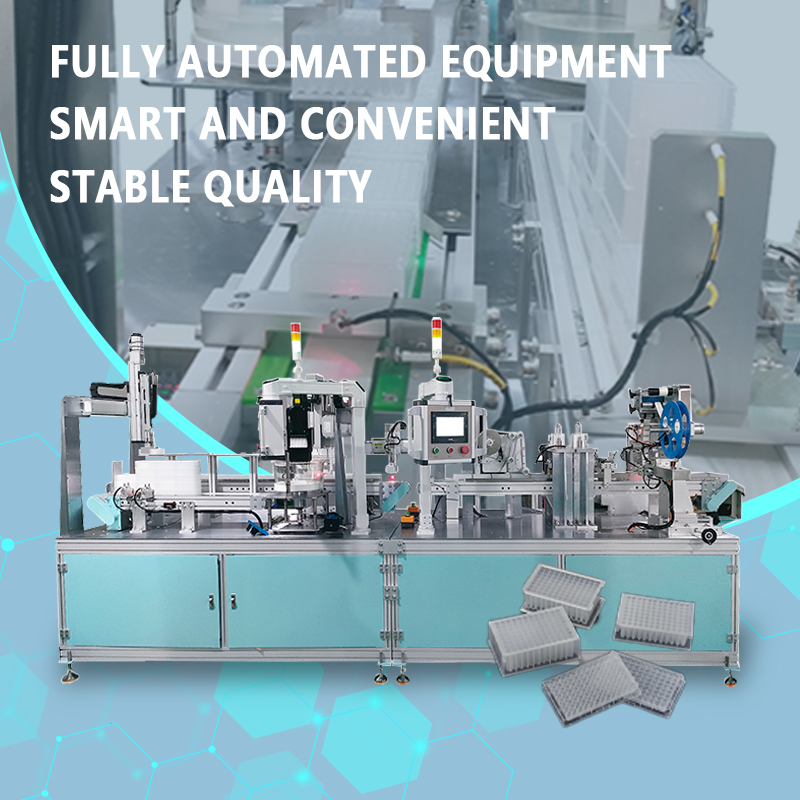

The Guanshentai Automatic Quantitative Dispenser for 96-well Deep-well Plates is a high-throughput, micro-volume liquid dispensing system designed for the biopharmaceutical, in vitro diagnostic (IVD
The Guanshentai Automatic Quantitative Dispenser for 96-well Deep-well Plates is a high-throughput, micro-volume liquid dispensing system designed for the biopharmaceutical, in vitro diagnostic (IVD), and life science sectors. Utilizing high-precision ceramic piston pumps and a multi-channel parallel metering system, the device enables simultaneous filling of an entire 96-well plate in a single cycle. It supports dispensing volumes ranging from 10 μL to 2 mL per well with a stable accuracy of ±1.0%, effectively mitigating risks such as cross-contamination between wells and volume inconsistency.
Key Advantages:
High-Throughput Operation: Fills an entire 96-well plate in a single cycle and processes 80–120 standard deep-well plates per hour, significantly boosting experimental or production efficiency.

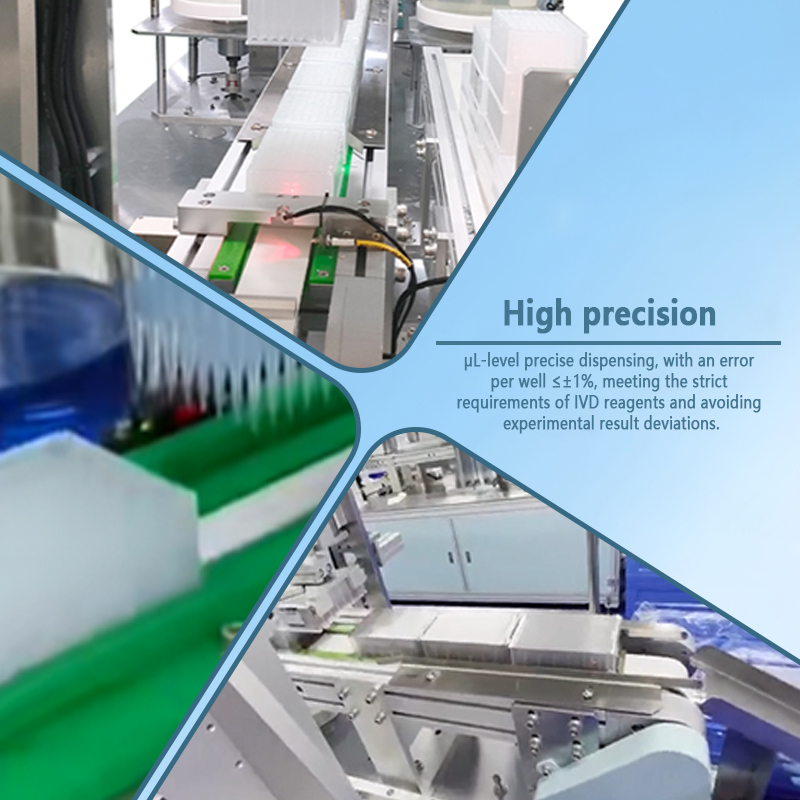

Precision Assurance: Features a ceramic pump with a hard-seal metering structure that is wear- and corrosion-resistant. It maintains consistent dispensing volumes over long-term use without requiring frequent calibration, making it ideal for the precise dispensing of expensive reagents or samples.
Leak and Drip Prevention: Equipped with an independent nozzle lifting mechanism and a suck-back anti-drip system; nozzles automatically retract after dispensing to ensure no liquid clings to well walls or remains on the plate surface, thereby preventing sample waste.
Flexible Adaptability: Compatible with standard SBS-format 96-well and 384-well deep-well plates, as well as various test tube and cryovial racks. Parameters such as dispensing volume, flow rate, and dispensing path can be easily configured via the touchscreen to meet diverse process requirements.
Clean Design: Constructed with a 304 stainless steel housing and seamless fluidic pathways, the unit is suitable for operation within biosafety cabinets or cleanrooms and supports UV and ozone sterilization environments.
Application Scenarios:
Widely applicable in fields such as biopharmaceuticals (vaccine adjuvant dispensing, antibody dilution), IVD (PCR master mix dispensing, nucleic acid extraction kit production), food testing (veterinary drug residue sample preparation, microbial enrichment broth dispensing), and scientific research (compound library preparation, cell culture media dispensing). The Guanshentai 96-well deep-well plate filling machine delivers precise, efficient, and stable performance, enabling laboratories and manufacturing enterprises to achieve standardized, large-scale micro-volume liquid dispensing operations.

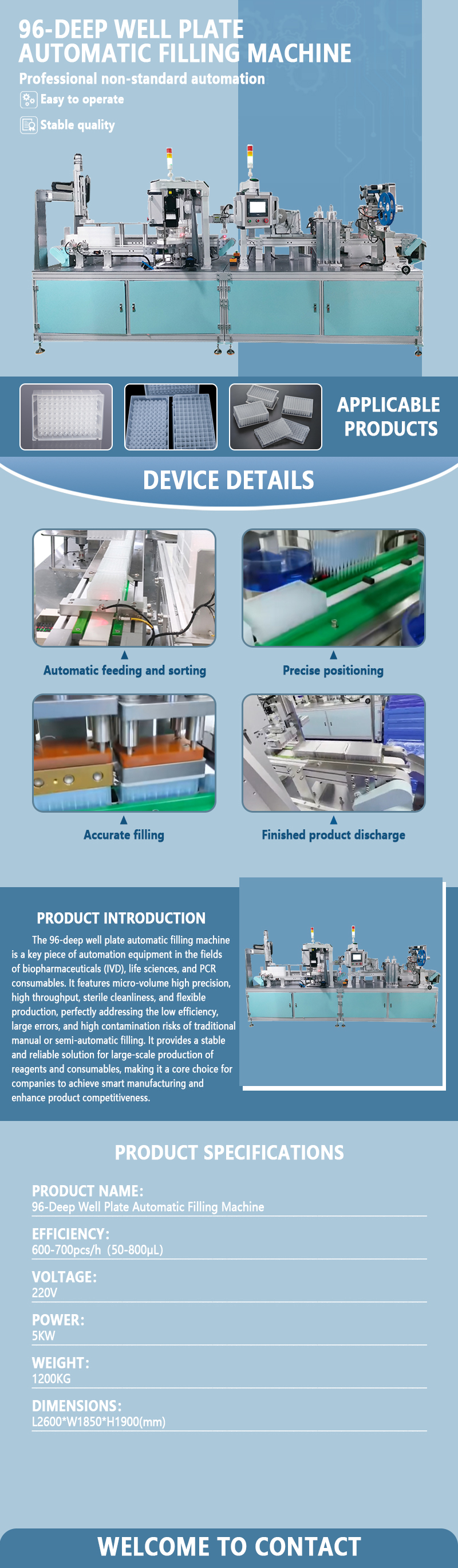

Equipment Details:
Model Number: GST-SWYP004A
Sizes: L4200*W1200*H1800 (mm)
Production Capacities: 600-700 boxes/hour
Filling volume:50-800uL
Total power:5KW
Power supply voltage:220V/50HZ
Weight:1200KG
Customized Support: Yes
