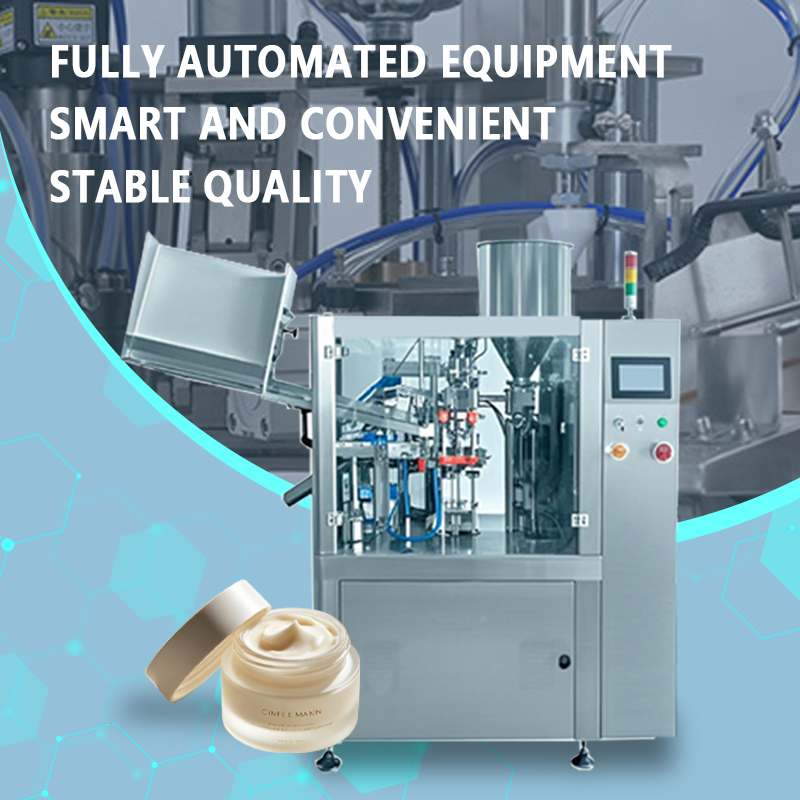

The Guanshentai Automatic Paste Filling Machine is specialized equipment designed for the automated, quantitative filling of high-viscosity, high-consistency, and particulate-laden materials. It utilizes a servo-driven metering system (screw pump or rotor pump) combined with an automatic bottle-handling conveyor and a precision positioning mechanism to achieve a fully automated workflow—from bottle feeding and quantitative filling to discharge. It offers filling speeds of 20–50 bottles per minute and a filling range of 50g to 5000g.
Key Advantages:
Powerful Conveying & Metering: Driven by a high-torque servo motor, the screw or rotor pump delivers pressures up to 0.8 MPa, easily handling high-resistance materials such as pastes, sauces, and gels. The flow remains stable and pulsation-free, eliminating issues like flow interruption or clogging.

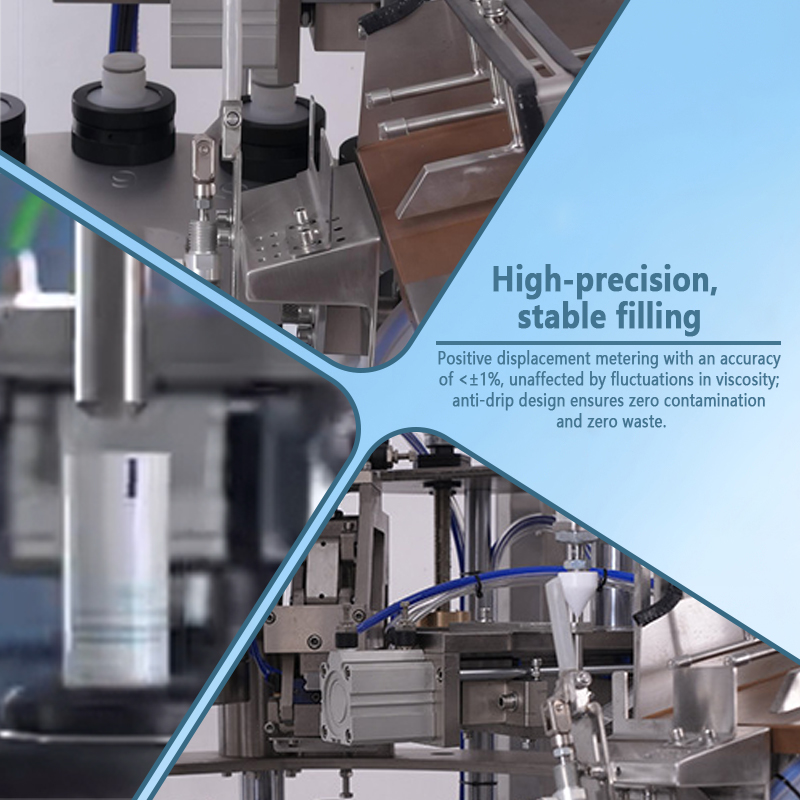

High-Precision Quantitative Filling: Dual verification via servo motor encoders and mechanical hard stops ensures filling accuracy within ±0.5%. Weight consistency is maintained from the first bottle to the last in a batch, eliminating the need for frequent recalibration.
Drip-Proof & Leak-Proof Design: Equipped with a suck-back anti-drip nozzle and an automatic drip-catch mechanism, the system instantly retracts residual material from the nozzle and catches any drips upon completion. This keeps bottle mouths, bodies, and conveyor surfaces clean and uncontaminated, saving material and reducing cleaning time.
Stepless Speed Control: Filling speed and suck-back volume can be freely adjusted via the touchscreen, accommodating materials with varying flow characteristics through intuitive, convenient operation.
Optional Constant-Temperature Hopper: For materials prone to solidification in winter or requiring temperature-controlled filling (e.g., honey, chocolate sauce, hot-melt adhesive), an electrically heated, insulated hopper and jacketed piping are available to maintain optimal material flow throughout the process.
Premium Materials: All product-contact parts are made of SUS316L stainless steel with mirror-polished interior surfaces. These are non-stick and easy to clean, meeting GMP hygiene standards for the food and pharmaceutical industries.
Hygienic Design: The machine features an SUS304 stainless steel frame with smooth, flat conveyor belts and work surfaces that are easy to clean and disinfect, making it suitable for clean production environments in the food, pharmaceutical, and cosmetic sectors.
Suitable Applications:

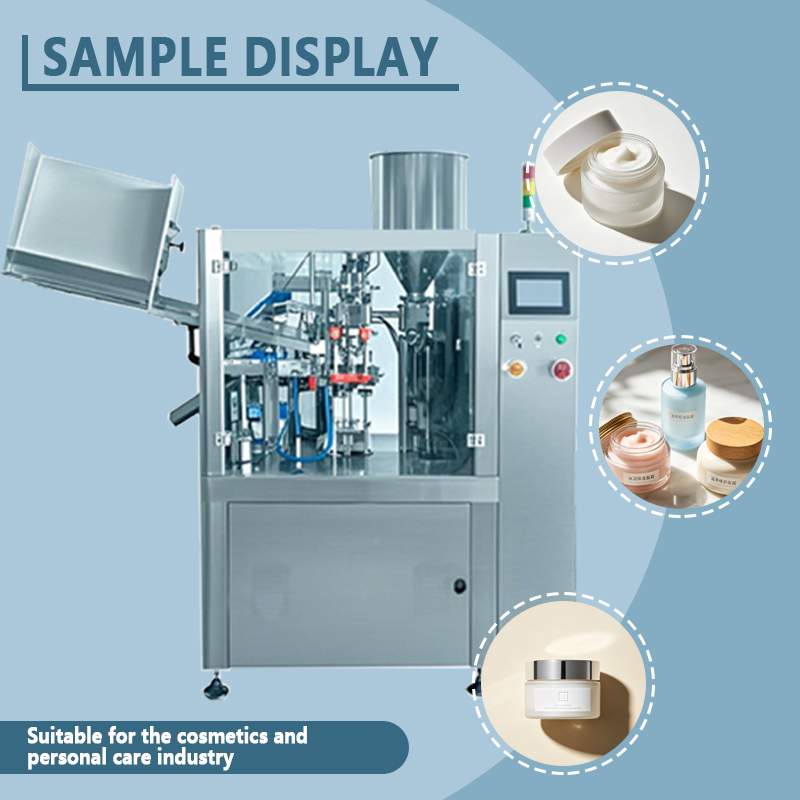

Widely applicable to automated filling operations for bottles, tubes, and jars across various sectors, including the food industry (hot pot base, salad dressing, peanut butter, ketchup, honey, jam, chocolate spread), personal care industry (hand cream, facial cleanser, shampoo, hair mask, toothpaste), pharmaceutical industry (ointments, gels, medical adhesives), and chemical industry (sealants, grease, AB adhesives, coatings). With its exceptional performance—characterized by stability, durability, precision, and high efficiency—the Guanshentai automatic paste filling machine empowers manufacturers to achieve standardized, large-scale, and automated filling production for paste-based products.
Technical parameters:
Model Number: GST-SWYP007A
Filling efficiency: 25-60 bottles/minute;
Filling accuracy: <±1%;
Power supply: 220V 50HZ;
Air pressure: 4-6MPa;
Dimensions: 1800*900*1800mm;
Mass: 550KG.
Customized Support: Yes
