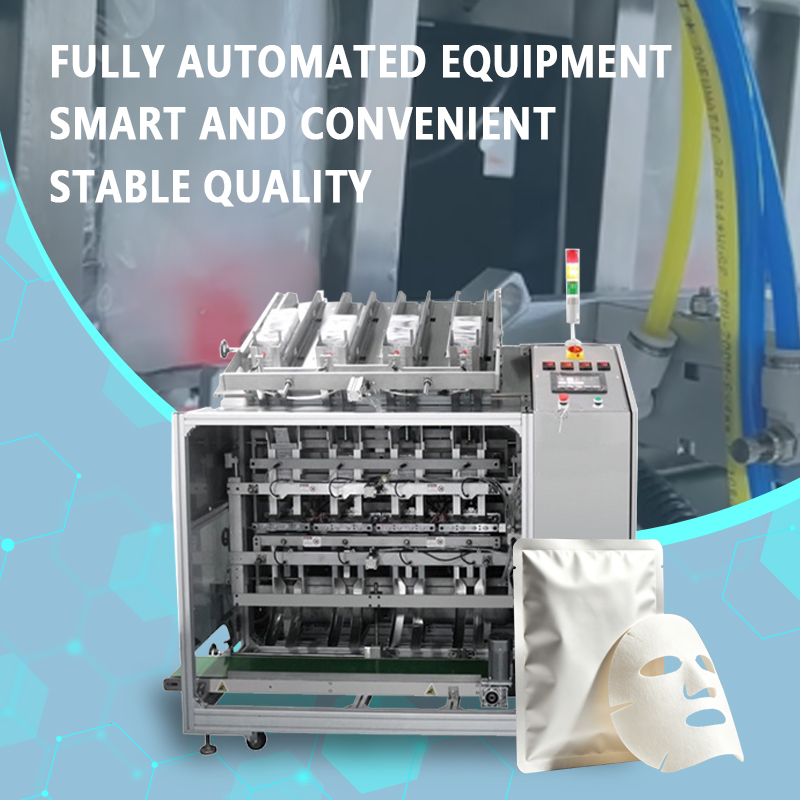

The Guanshentai automatic face mask filling machine is an integrated system designed for the automated filling and sealing of sheet-style skincare products, such as face masks and eye masks. It comb
The Guanshentai automatic face mask filling machine is an integrated system designed for the automated filling and sealing of sheet-style skincare products, such as face masks and eye masks. It combines automatic bag picking, opening, precision filling, air evacuation and shaping, sealing and embossing, and bag discharge with counting into a seamless, continuous production line. With a production speed of 2,500–4,000 bags per hour, it significantly boosts efficiency and product consistency.
Key Advantages:

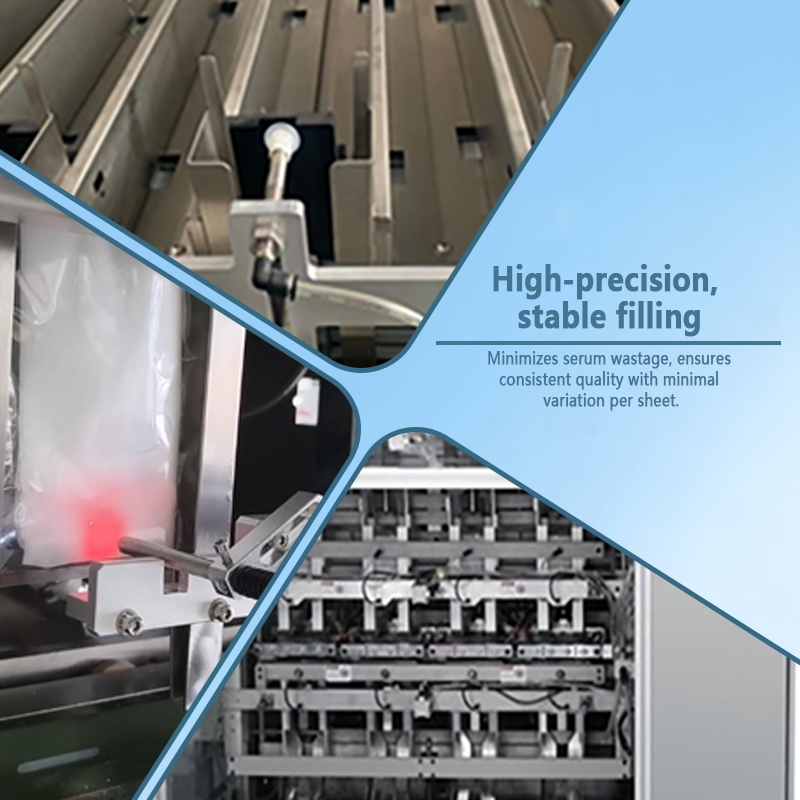

Precision Filling: Utilizes servo-driven ceramic pumps or stainless steel piston pumps for metering, maintaining filling accuracy within ±0.3g. The filling volume is adjustable between 3ml and 50ml to meet the specific liquid requirements of various mask sizes.
Drip-Proof & Leak-Proof: Equipped with a suck-back anti-drip nozzle that automatically retracts residual liquid after filling. This ensures no product residue remains on the bag opening or sealing area, preventing seal failures and surface contamination.
Secure & Aesthetic Sealing: Features a constant-temperature heating system combined with precision serrated embossing. Sealing temperature and time are independently adjustable, ensuring a flat, secure seal with a crisp, attractive pattern and excellent airtightness.
Smart Air Evacuation & Shaping: Includes a compression mechanism to evacuate air before sealing, resulting in a smooth, full-looking bag that enhances shelf appeal while minimizing the risk of bag rupture due to bloating during transport.
High-Quality Materials: Product-contact parts are made of SUS316L stainless steel and food-grade silicone tubing. These materials are acid/alkali and corrosion-resistant, complying with cosmetic GMP hygiene standards; all contact parts are easily disassembled for cleaning.
Low-Level Protection: Equipped with an automatic liquid level detection and alarm system. The machine automatically stops or triggers an alarm when the reservoir level is low, preventing defects such as empty fills or under-filling.
User-Friendly Operation: Controlled via PLC and a touchscreen HMI. Parameters such as filling volume, speed, and sealing temperature can be set with a single touch, and multiple product recipes can be saved for quick and convenient production changeovers.
Applications:

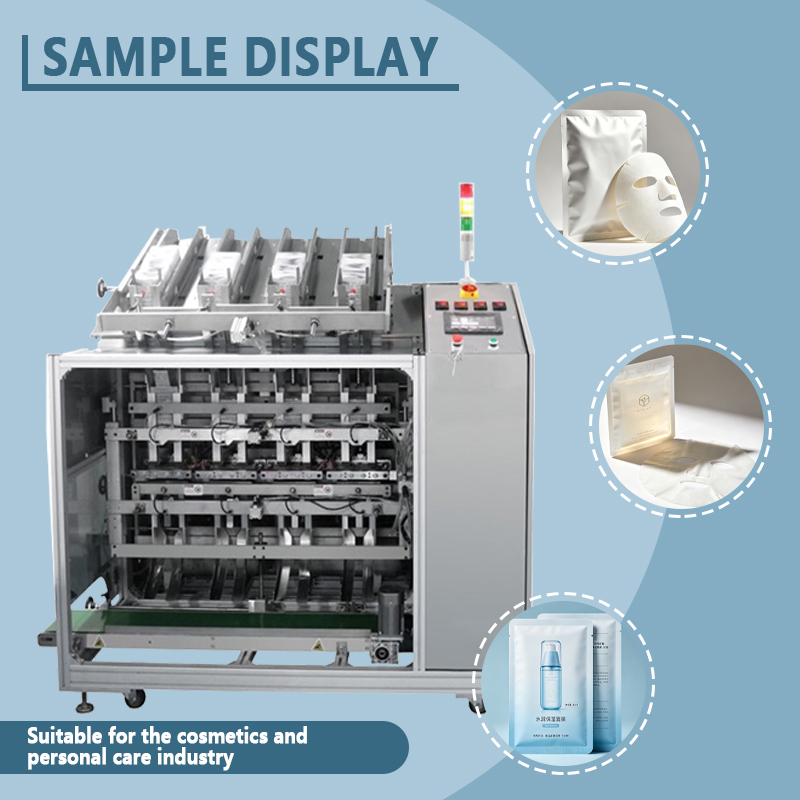

Suitable for the filling and sealing of various sheet-style care products, including those in the cosmetics industry (non-woven, silk, and bio-cellulose facial masks, as well as eye, neck, and breast masks), the personal care industry (foot, hand, and breast masks), and the medical sector (cold compresses and medical hyaluronic acid dressings). With its outstanding performance—characterized by high efficiency, precision, and cleanliness—the Guanshentai automatic mask filling machine empowers manufacturers to achieve standardized, large-scale production.

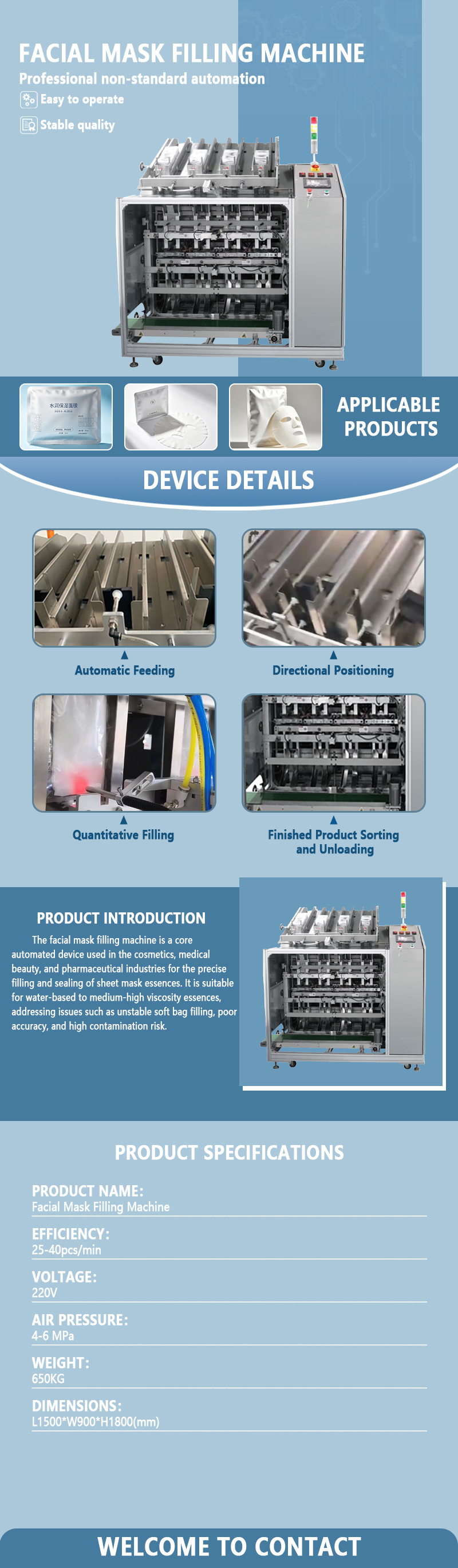

Technical parameters:
Model Number: GST-SWYP006A
Filling efficiency: 25-40 bottles/minute;
Filling accuracy: <±1%;
Power supply: 220V 50HZ;
Air pressure: 4-6MPa;
Dimensions: 1500*900*1800mm;
Mass: 650KG.
Customized Support: Yes
