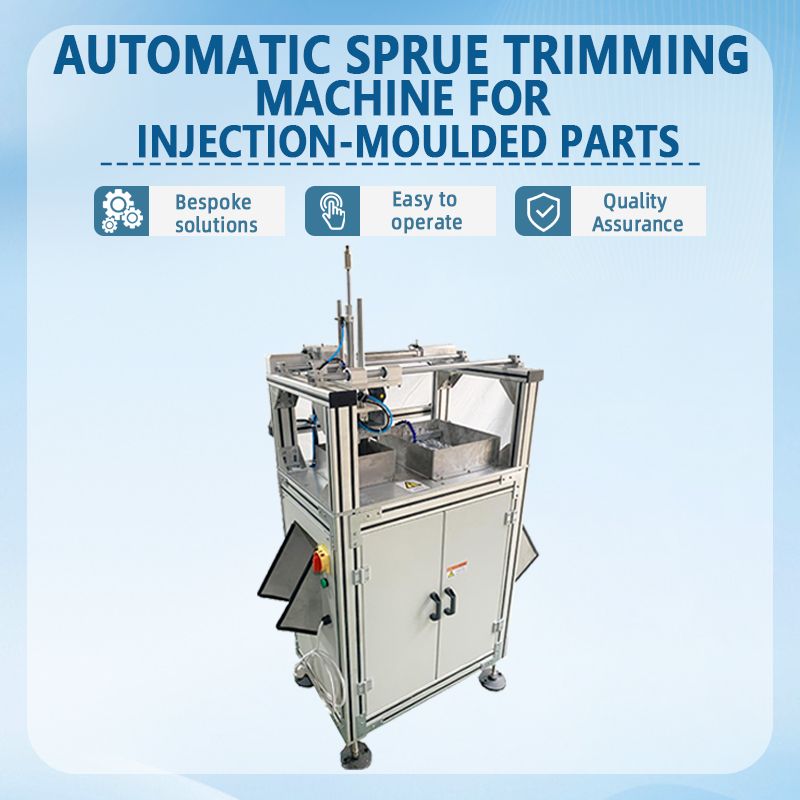

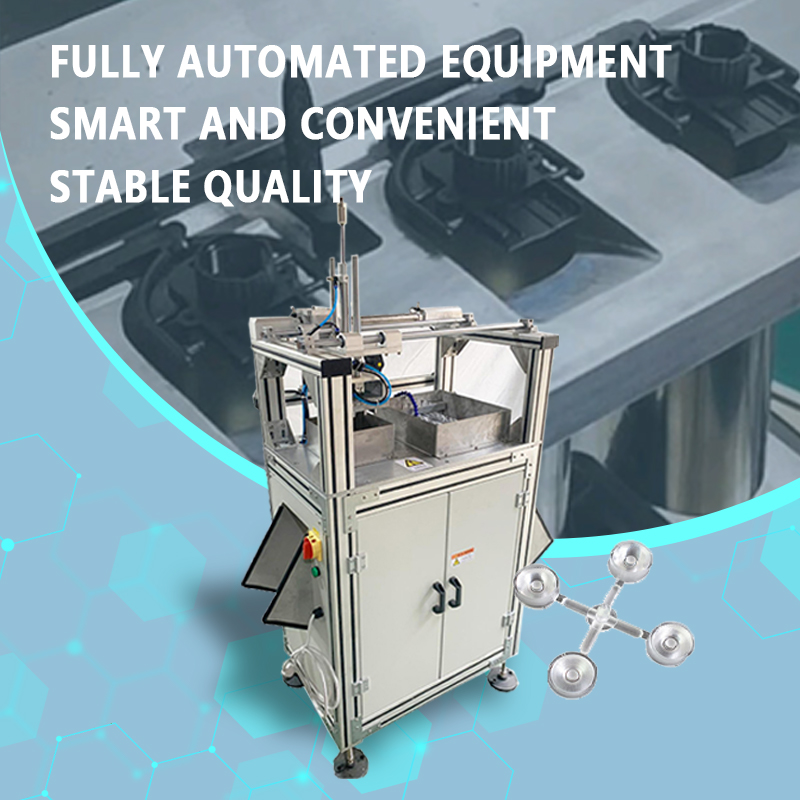

The Guanshentai Automatic Gate-Cutting Machine for Injection-Molded Parts is specialized equipment designed for the automatic removal and separation of gates (runners/sprues) from injection-molded products. Utilizing a pneumatic/servo punching system combined with precision tooling and a conveyor-based positioning mechanism, the machine employs either cold or hot cutting methods to precisely separate the molded part from the runner scrap. It also performs flash trimming and partial assembly tasks. With an operating speed of 600–1,200 pieces per hour, it serves as a highly efficient alternative to traditional manual cutting with pliers.
Key Advantages:

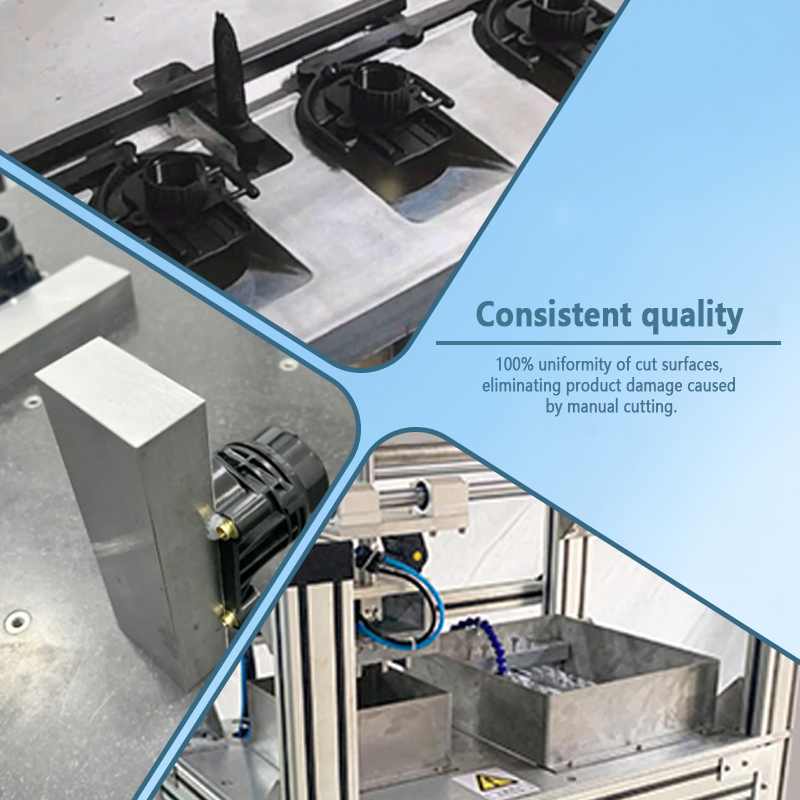

Precision Cutting: Features high-hardness, premium-grade tool steel cutting heads paired with precision guide mechanisms. The cut surface is smooth and flat—free of burrs, stringing, or fracturing—with a cutting accuracy of ±0.05mm, effectively preserving the product's aesthetic integrity.
Flexible Adaptability: Supports both cold and hot cutting modes. Customized cutting solutions are available for various material properties (ABS, PC, PA, PP, POM, PMMA, etc.) and gate locations (side, pin-point, submarine, and fan gates), allowing a single machine to handle multiple types of injection-molded parts.
Scratch-Prevention Design: The inner walls of the product positioning fixtures and the clamping mechanisms are lined with urethane or silicone cushioning layers. This ensures stable positioning while preventing secondary damage—such as pinch marks or scratches—to the part's surface during the cutting process.
Automatic Scrap Discharge: Equipped with independent waste collection channels and a vibration-based discharge device, the machine automatically separates and ejects runner remnants and debris. Finished parts and waste are completely segregated, reducing the need for manual sorting.
In-line Inspection and Rejection: Integrates a post-cutting vision/laser inspection module (based on mechanical gauging and optical comparison principles, rather than AI self-learning). It automatically checks for residual gate material and surface defects, ejecting defective parts via air blast to ensure high product yield.
Cleanliness and Safety: The fully enclosed cutting area features a transparent protective shield to contain dust and debris. It is also equipped with dual-start buttons and an emergency stop mechanism, complying with industrial safety standards.
User-Friendly Operation: Equipped with a PLC and a touchscreen HMI, the system allows for one-touch configuration of parameters such as cutting pressure, stroke, speed, and temperature (for thermal cutting modes). Multiple product recipes can be saved, enabling rapid switching during production changes.
Applications:

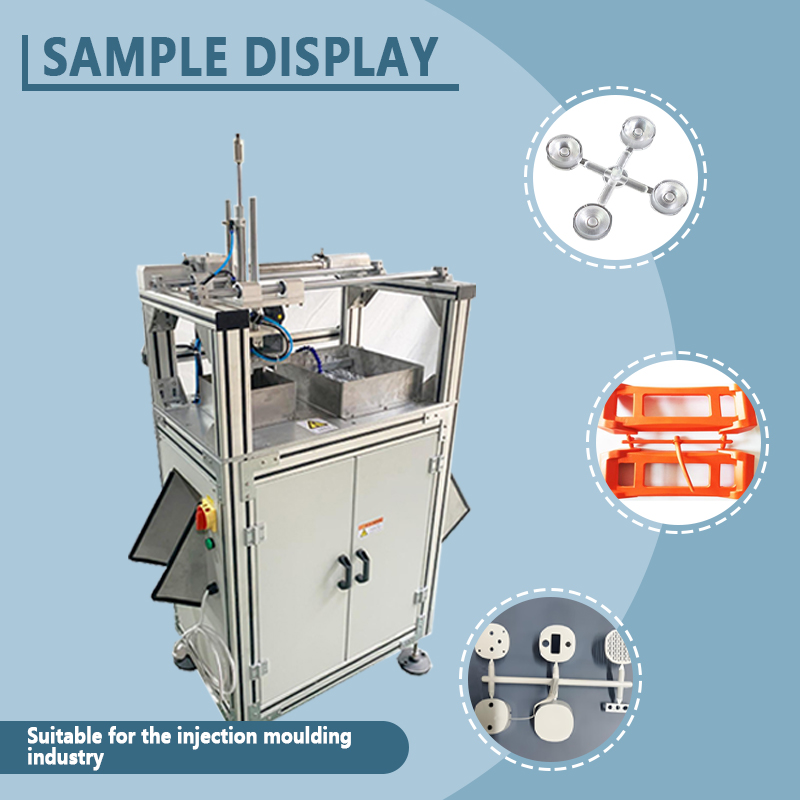

Widely applicable to the automatic gate removal and flash trimming of various injection-molded products across industries such as injection molding (housings for electronics and appliances, automotive trim, medical consumables, and household plastic parts), 3C digital accessories (mobile phone cases, earphone housings, and connectors), medical devices (syringe barrels, test tube racks, and Petri dishes), and toys/stationery. With its efficient, precise, and stable cutting performance, the Guanshentai automatic gate-cutting machine helps injection molding enterprises automate their post-processing operations, effectively reducing labor costs and enhancing product quality consistency.

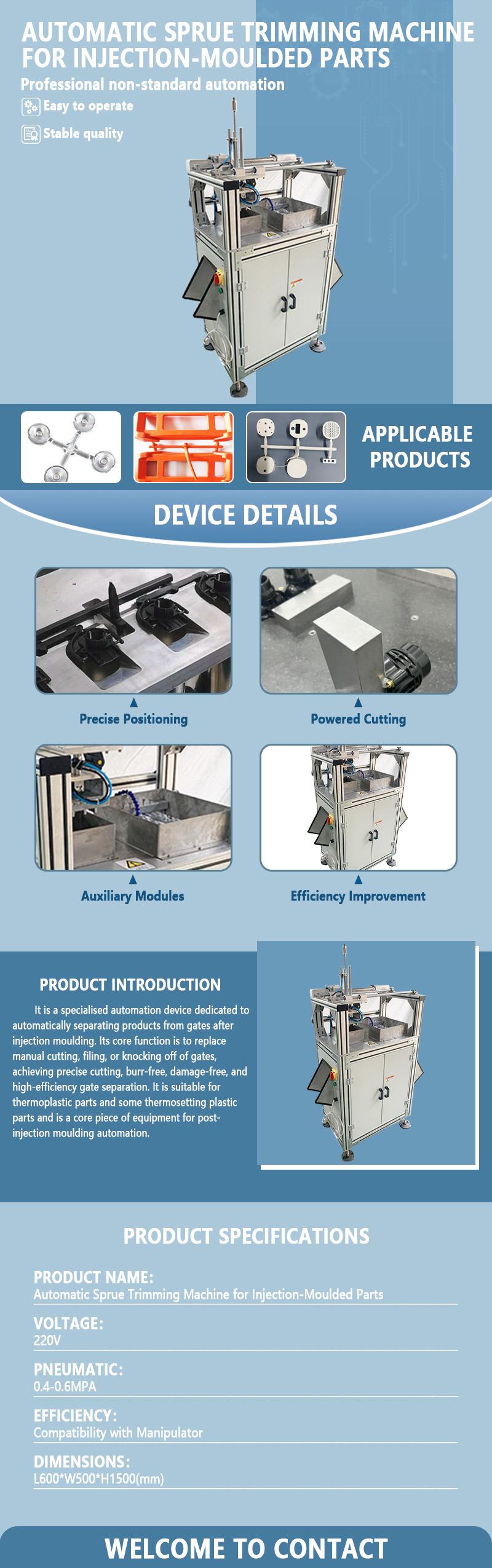

Technical parameters:
Model Number: GST-WJ005A
Production Capacities: 20-60 pcs/min (adjustable)
Voltage: 220V AC
Air pressure: 0.4-0.6MPA.
Sze: L600 * W500 * H1500
Customized Support: Yes
