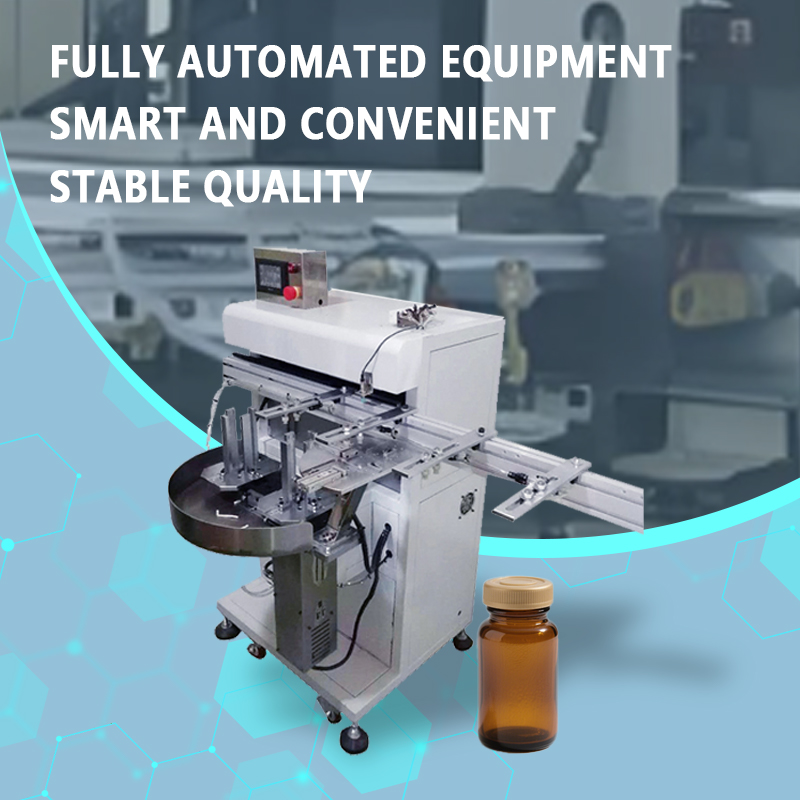

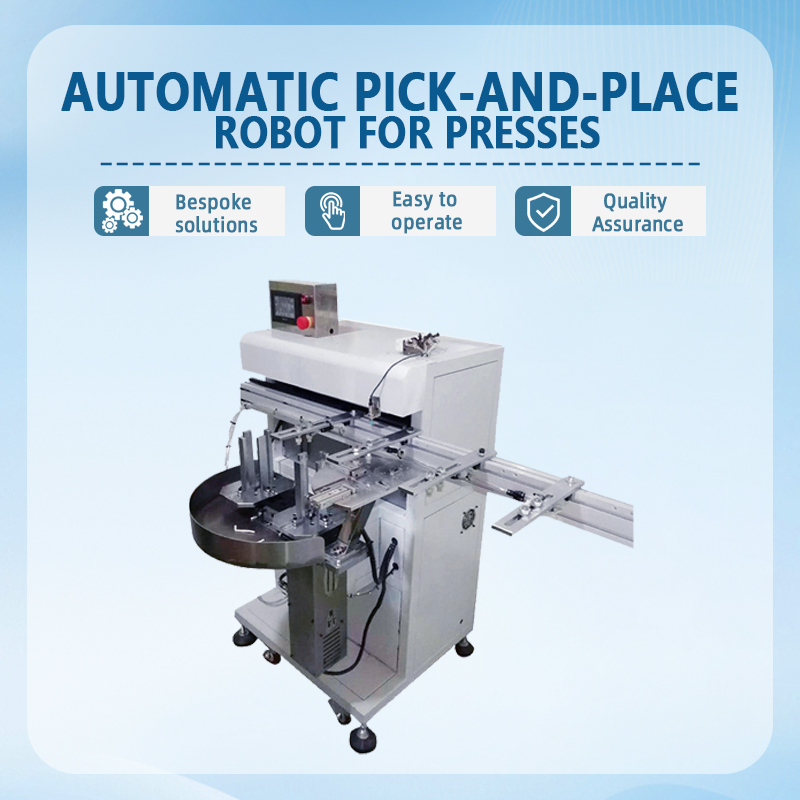

The Guanshentai automatic pick-and-place robotic arm for punch presses is a specialized device designed to automate the loading and unloading processes in stamping operations. Utilizing servo-driven linear modules or articulated robotic arms combined with specialized end-effectors (vacuum cups, pneumatic grippers, or electromagnets), the system automatically grips, transfers, and stacks sheet metal, coil stock, stamped parts, and scrap. With a cycle rate of 5–15 operations per minute, it significantly replaces manual loading/unloading tasks and effectively ensures operator safety.
Key Advantages:
Precision Positioning and Transfer: Driven by high-precision servo motors paired with ball screws or gear reducers, the system achieves a repeatability of ±0.1mm. This ensures accurate gripping and placement, eliminating dimensional deviations or mold damage caused by misalignment.
Flexible End-Effector System: Supports flexible combinations of vacuum cups, pneumatic grippers, and electromagnets. It accommodates various workpiece shapes—including flat parts, irregular components, coils, and tubing—offering multi-purpose versatility.
Rapid Response and Synchronization: Integrated control between the robot and the punch press ensures that pick-and-place actions begin the moment the press slide reaches its upper limit. This synchronization shortens the stamping cycle and boosts overall production line efficiency.
Stamping Safety Protection: Equipped with press interlock signals and multi-zone safety light curtains. The press cannot initiate a downward stroke until the robot has completed the material retrieval, preventing the punch from striking the robot or mold and protecting personnel from entering hazardous areas.
Damage Prevention: Cushioning mechanisms (such as spring-loaded floating mounts or urethane pads) are incorporated into the contact surfaces of the end-effectors to prevent scratches, indentations, or other surface damage during gripping or suction.
Automatic Scrap Separation: Features an integrated scrap collection mechanism that simultaneously grips and transfers offcuts or waste material to a designated recovery area, automatically separating finished parts from scrap and reducing manual sorting time.
Stable and Durable: Key components utilize high-strength aluminum profiles or steel structures, ensuring no deformation during long-term, high-speed operation; industrial-grade servo motors and gear reducers are employed to guarantee stable, continuous 24-hour operation.
User-Friendly Operation: Features a PLC and touchscreen HMI for intuitive parameter setting and real-time status monitoring; supports the storage of multiple product parameter recipes, allowing for one-touch switching during production changeovers.

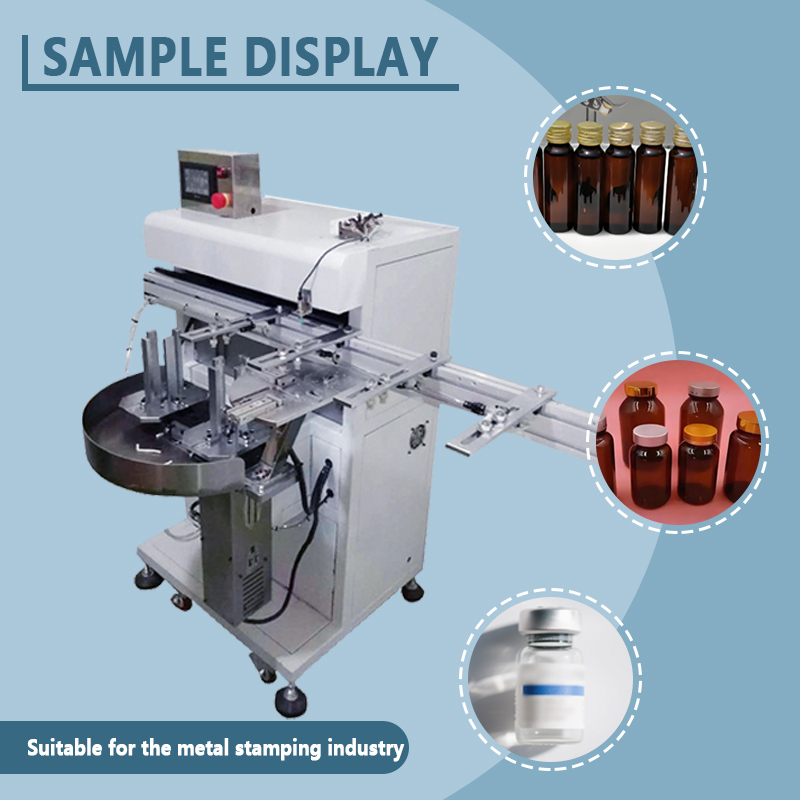

Application Scenarios:
Widely applicable to automated loading and unloading for stamping processes in sectors such as hardware stamping (automotive sheet metal parts, home appliance housings, motor rotor laminations, battery electrode sheets, terminal connectors), electronics manufacturing (shielding cans, heat sinks, mobile phone mid-frames), metal products (kitchenware, locks, hinges), and secondary processing of stamped parts (trimming, coining, and bending operations). With its stable, precise, and safe automated performance, the Guanshentai automatic press handling robot helps stamping enterprises upgrade production lines to replace manual labor with automation, effectively reducing the risk of workplace injuries while enhancing production consistency and efficiency.

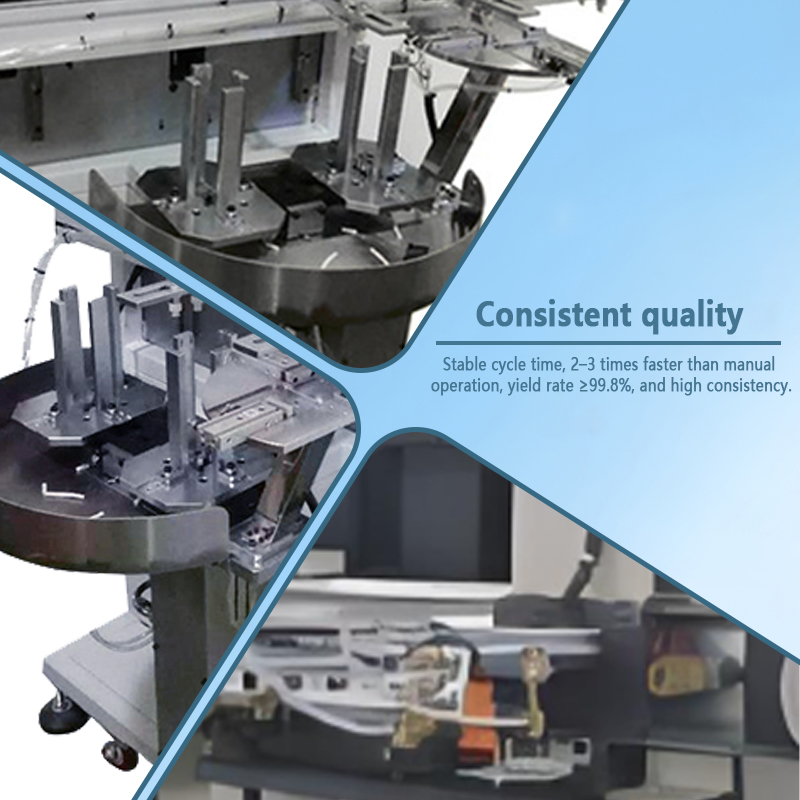

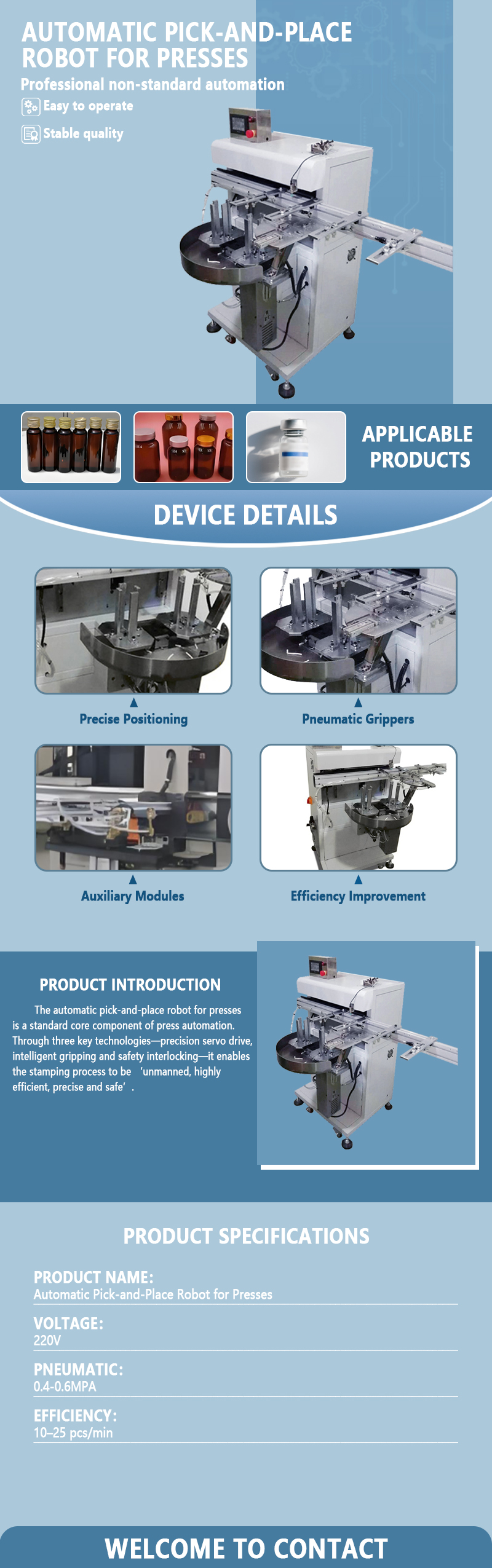

Technical parameters:
Model Number: GST-WJ003A
Sizes: L1250*W1100*H1350(mm)
Voltage: 220VAC, 50HZ.
Pneumatic pressure: 0.4-0.6MPA.
Working efficiency: 10-25 times / min.
Customized Support: Yes
