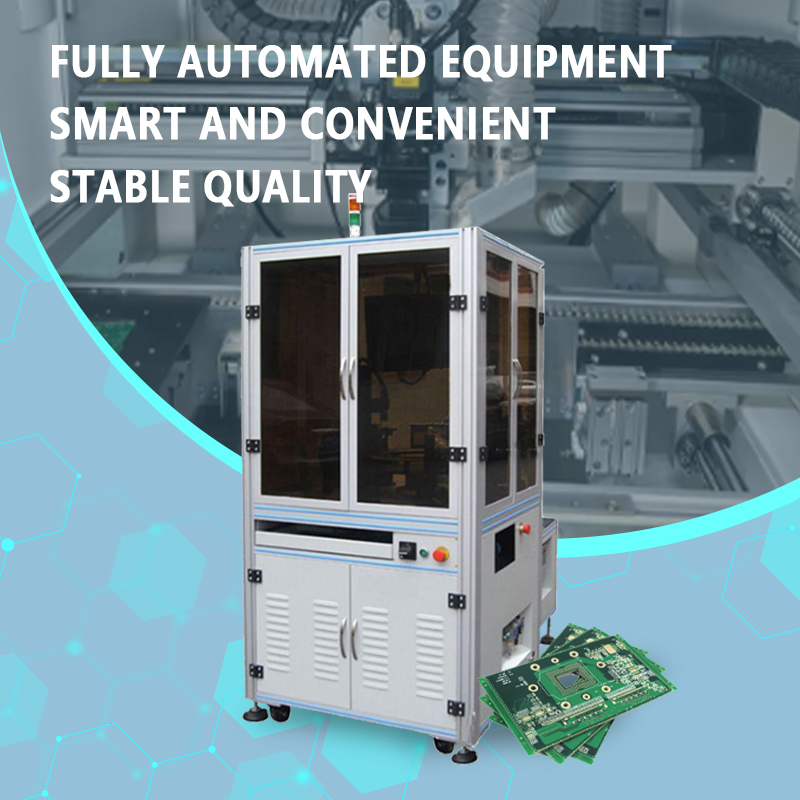

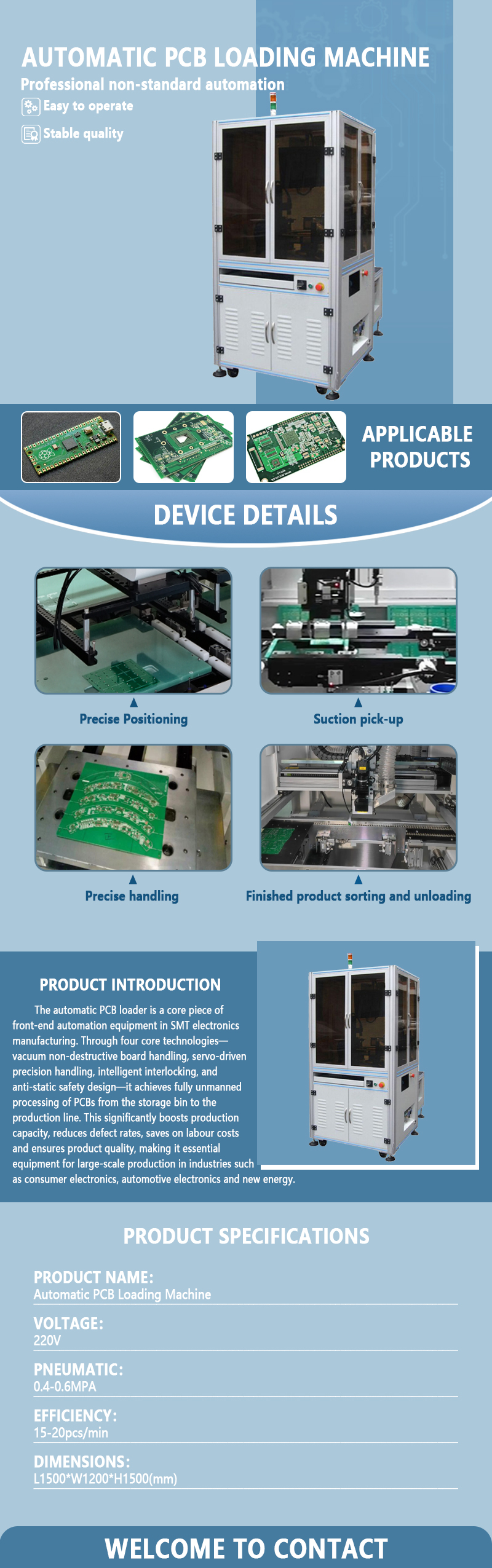

The Guanshentai Automatic PCB Loader is specialized equipment designed for the automatic feeding and precise placement of PCBs (Printed Circuit Boards) at the start of a production line. Integrating
The Guanshentai Automatic PCB Loader is specialized equipment designed for the automatic feeding and precise placement of PCBs (Printed Circuit Boards) at the start of a production line. Integrating a lifting magazine, an automatic board separation module, a positioning/alignment stage, and a transfer platform, the machine separates stacked PCBs one by one and places them accurately onto a transfer stage or production conveyor. It ensures seamless integration with downstream processes such as SMT mounters, printers, and AOI inspection systems. With a loading speed of 6–12 boards per minute, it effectively replaces repetitive manual loading tasks.
Key Advantages:

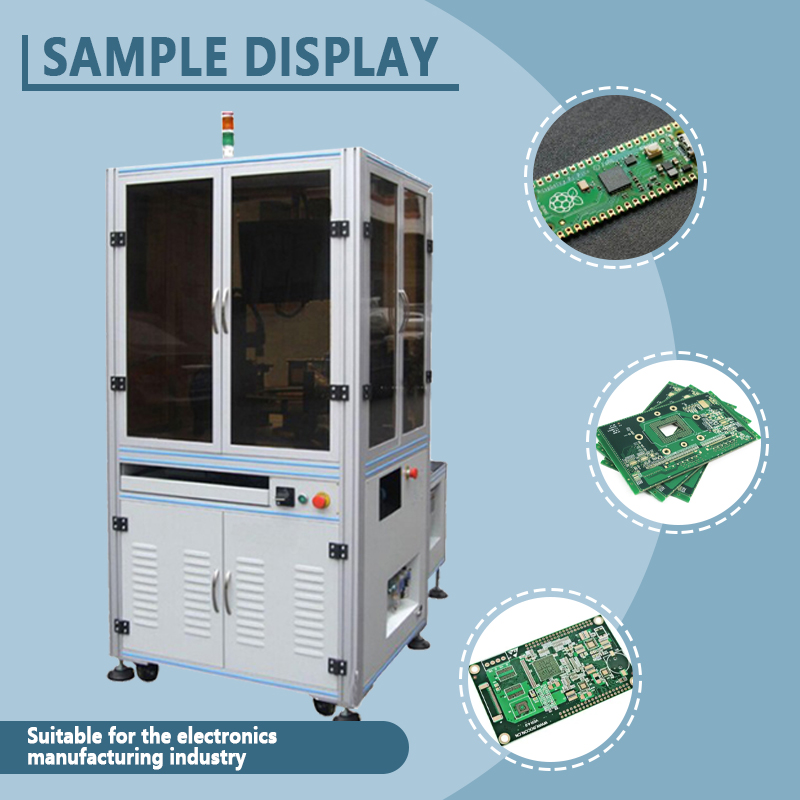

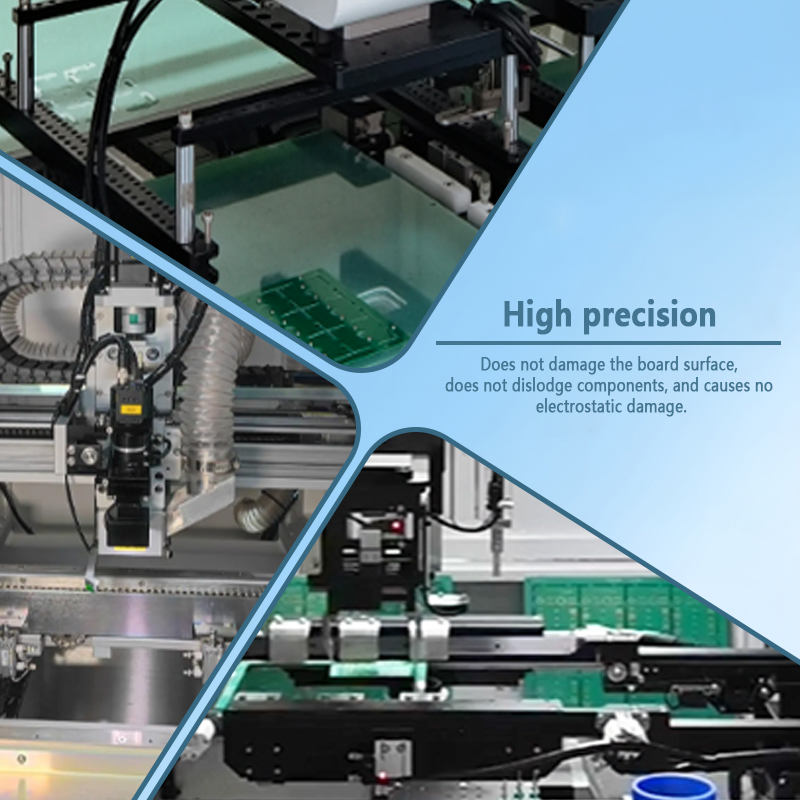

Intelligent, Scratch-Free Separation: Utilizes advanced separation technology combining air-cushioning and lateral air jets to ensure the top PCB is fully separated from the stack before pickup by suction cups, effectively preventing scratches or circuit damage caused by board-to-board friction. It is also equipped with sensors to detect stacked boards, eliminating the risk of feeding multiple boards into the line simultaneously.
Precision Positioning and Placement: Features a built-in X/Y/Z three-axis servo positioning module that automatically centers and aligns the picked-up PCB. It achieves placement accuracy within ±0.5mm, ensuring precise alignment with transfer stage pins or smooth transition to the next process, thereby minimizing defects like placement offsets caused by misalignment.
Anti-Static and Clean Design: The pickup mechanism employs anti-static suction cups and a fully enclosed dust cover to eliminate static interference with sensitive PCB components and block airborne dust. This makes it ideal for high-cleanliness manufacturing environments, such as SMT, high-precision component mounting, and semiconductor packaging.
High-Capacity Magazine: Equipped with a large-capacity lifting magazine capable of holding 150–300 PCBs (depending on board thickness) in a single load, reducing the frequency of manual reloading and enhancing continuous operational efficiency.
Flexible Width Adjustment: Allows for rapid adjustment of the magazine and conveyor track widths via handwheel or servo control, accommodating various PCB sizes (ranging from a minimum of 50×50mm to a maximum of 400×500mm) for flexible and convenient product changeovers.
Comprehensive Safety Protection: Equipped with light curtain safety guards, an emergency stop switch, and an audible-visual alarm system; the machine automatically halts and issues alerts upon detecting anomalies, ensuring the safety of both operators and equipment.
Networked & Interconnected Control: Features a standard SMEMA communication interface (based on dry contact signal exchange, not AI self-learning), enabling signal-based integration with upstream and downstream equipment—such as pick-and-place machines, printers, and reflow ovens—to automatically synchronize production pacing and facilitate collaborative line operations.
User-Friendly Operation: Utilizes a PLC and touchscreen HMI for intuitive parameter settings; includes built-in product recipes that can be recalled with a single touch during product changeovers.
Application Scenarios:
Widely applicable to the automatic board-feeding stage of various PCB production lines, including SMT surface mount lines (automatic PCB loading), electronics manufacturing (mobile phone/computer motherboards, power supply boards, control boards), automotive electronics (ECU control boards, sensor circuit boards), and LED lighting/display sectors (LED light boards, display module boards). With its stable and efficient automatic feeding performance, the Guanshentai automatic PCB loader helps electronics manufacturers automate the front-end board-loading process of SMT lines, effectively reducing manual labor intensity and enhancing overall production line efficiency.
Technical parameters:
Model Number: GST-WJ001A
Power supply: 220VAC, 50Hz/60Hz, 20KW;
Air pressure: 0.4-0.6MPA;
Dimensions: 1500*1200*1500;
Work efficiency: 15-20 times/min;
Applicable industries: SMT electronic products industry.
Customized Support: Yes
