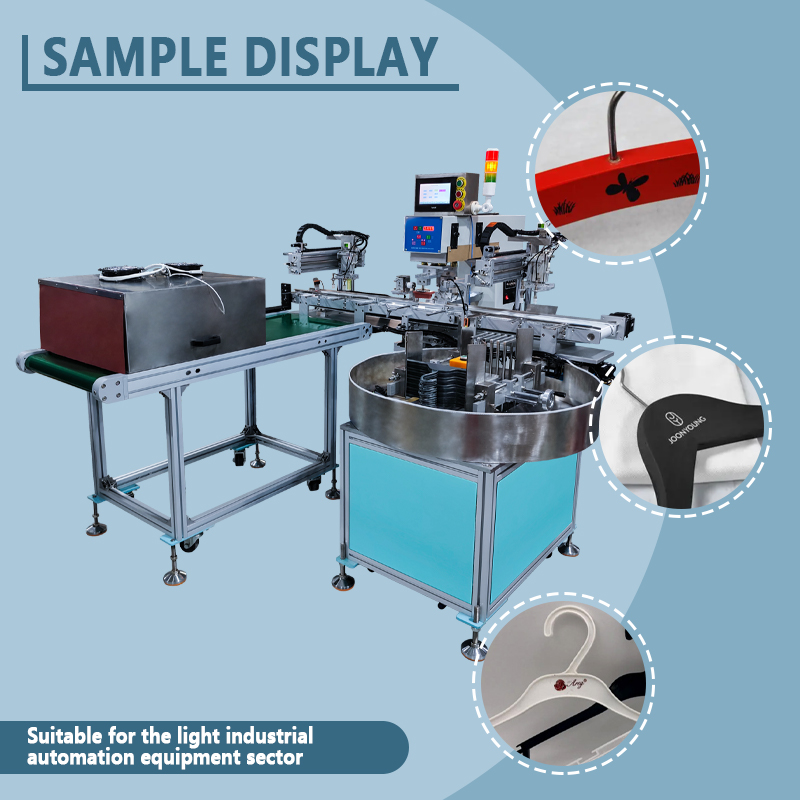

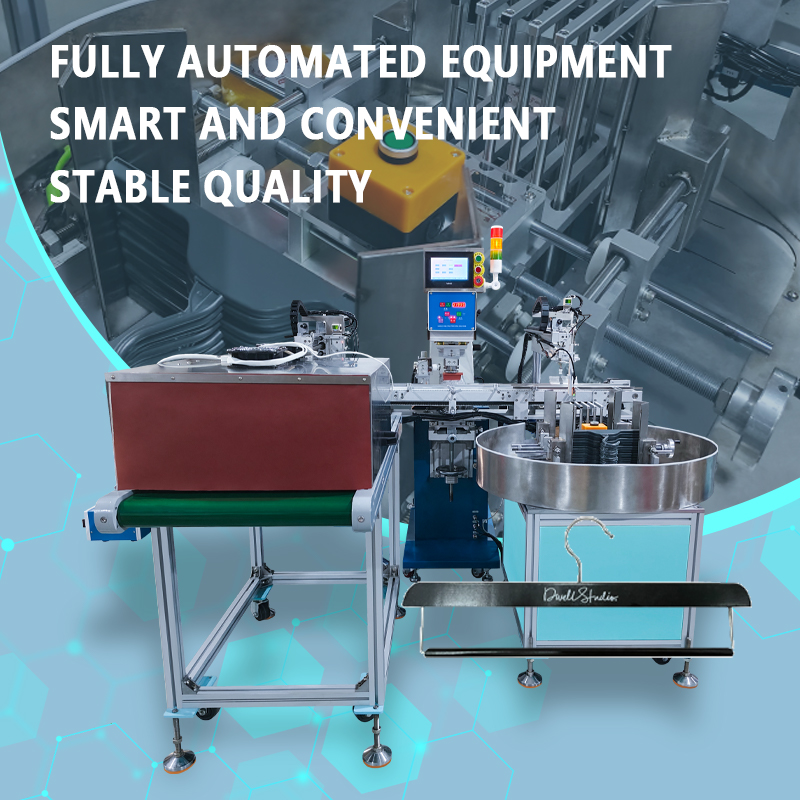

The Guanshentai automatic pad printing machine for hangers is specialized equipment designed for printing markings on the surfaces of plastic, wooden, and metal hangers. Integrating automatic loading, surface pre-treatment, multi-color pad printing, UV curing/IR drying, and automatic unloading, the system automates the entire process—from handling bulk hangers to producing finished, marked products. It achieves printing speeds of 25–50 units per minute and can print brand logos, size labels, barcodes, and decorative patterns on areas such as hanger shoulders, crossbars, and hooks.
Key Advantages:
Adaptability to Curved/Irregular Surfaces: Utilizing pad printing technology that combines an ink tray with a silicone pad, the system leverages the pad's excellent elastic deformation capabilities. This allows it to conform closely to curved shoulders, arched hooks, and various irregular shapes, ensuring high-fidelity image and text transfer across concave, convex, curved, and uneven surfaces. The resulting prints are crisp and complete, with uniform, rich ink coverage.
Precise Multi-Color Registration: Supporting both single-color and multi-color printing, the machine employs a high-precision rotary indexing system. This ensures a registration accuracy of ±0.1mm for multi-color patterns, making it ideal for complex logos and designs with distinct color layering.
Efficient Pre-Treatment: Equipped with optional corona or flame surface treatment stations, the machine effectively increases the surface tension of plastic hangers, significantly enhancing ink adhesion. Post-printing options include infrared hot-air drying or UV-LED cold-light curing systems; the ink dries instantly and offers excellent resistance to friction and scratching, meeting durability requirements for daily use, storage, and transport.

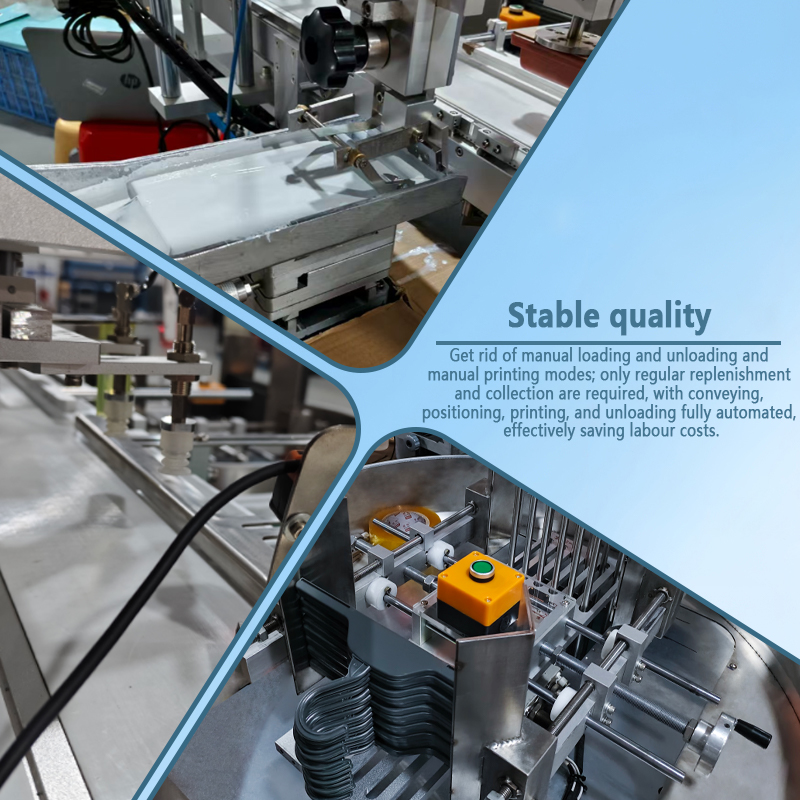

Scratch-Resistant Flexible Conveying: The loading and conveying processes utilize flexible guide rails and pneumatic positioning mechanisms. Contact points are cushioned with silicone or polyurethane layers to effectively prevent surface scratches and deformation, ensuring a pristine finish on the final product.
Automatic Loading and Unloading: Featuring automatic loading mechanisms (such as vibratory bowls or hopper-style feeders) and an automatic unloading/collection system, the machine allows a single operator to manage multiple units, drastically reducing manual labor intensity.
Automatic Ink Supply and Anti-Drying: Equipped with an automatic ink tray stirring and timed ink replenishment system to maintain consistent ink viscosity and prevent surface skinning or drying. The pad cleaning system utilizes an automatic adhesive tape mechanism, ensuring stable and consistent print quality during continuous operation.
Broad Material Compatibility: Compatible with plastic hangers (PP, PE, PS, ABS, PVC), wooden hangers, and coated metal hangers; quick adaptation to various hanger shapes and sizes is achieved simply by swapping positioning fixtures.
User-Friendly Operation: Features a PLC and touchscreen HMI; parameters such as pad printing speed, number of print cycles, and curing temperature can be set with a single touch, with support for saving multiple recipe profiles to facilitate rapid product changeovers.
Application Scenarios:
Widely applicable to product marking and printing in sectors such as garment accessory manufacturing (plastic, wooden, and metal hangers, as well as trouser and skirt hangers), hotel supplies (guest room hanger branding), retail displays (custom-branded hangers), and hanger OEM/ODM processing. With its efficient, precise, and stable performance, the Guanshentai automatic hanger pad printing machine helps manufacturers automate their marking processes, thereby enhancing brand image and production efficiency.

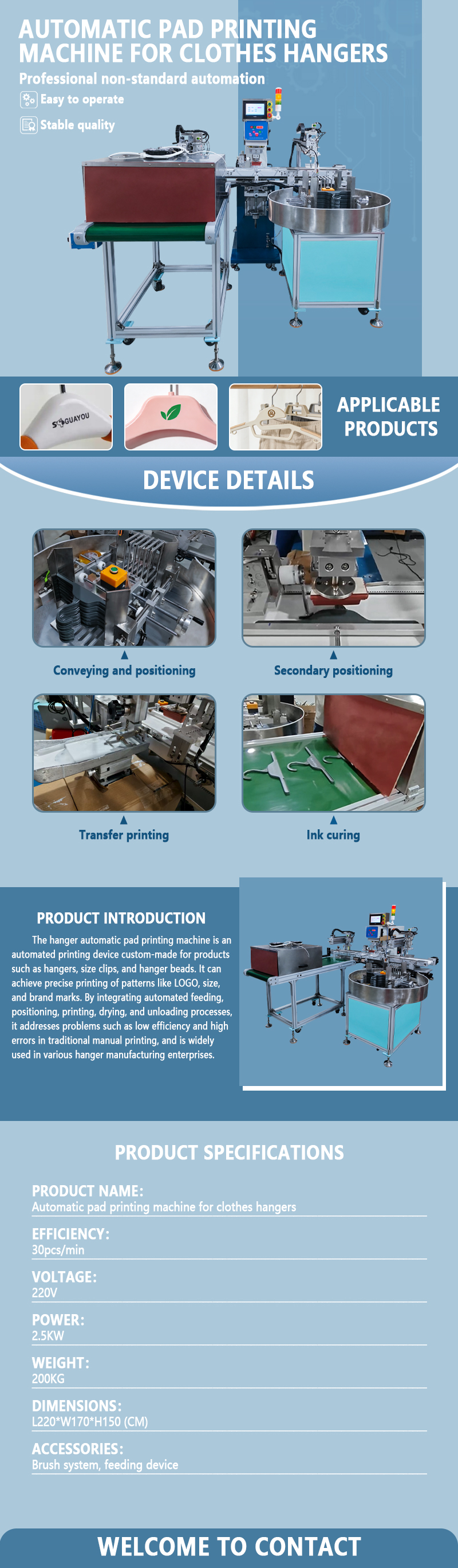

Technical parameters:
Model Number: GST-WJ008A
Sizes: L1500*W800*H1500mm
Voltage: 220V AC
Air pressure: 0.4-0.6MPA.
Work efficiency: 10-20 times / min,
Cylinders, solenoid valves are made of Taiwan Yadek, and electrical appliances are made of Omron.
Customized Support: Yes
