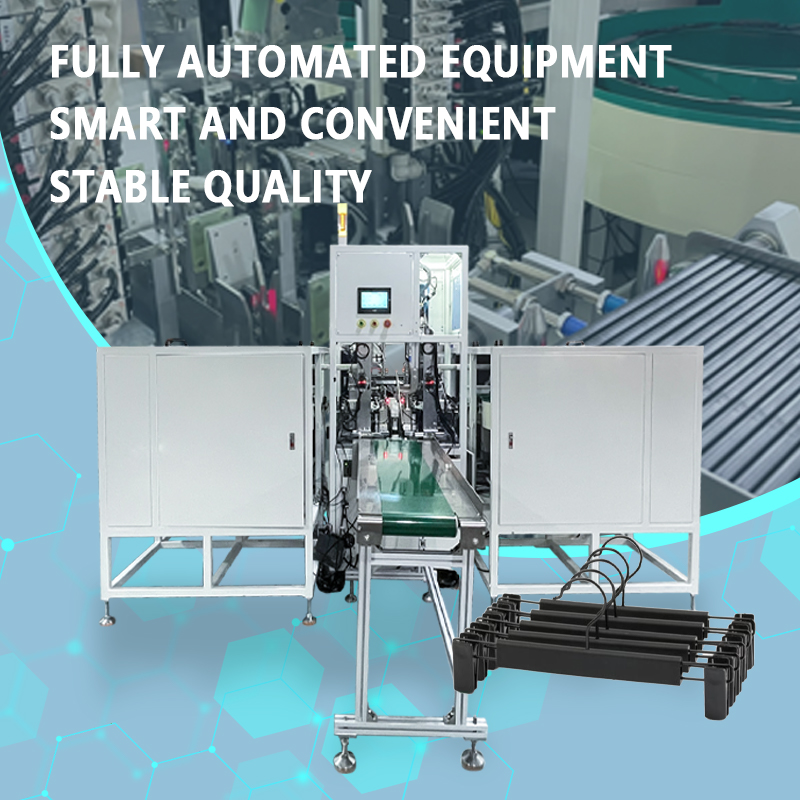

The Guanshentai Automatic Trouser Hanger Assembly Machine is specialized equipment designed for the automated assembly of components for plastic trouser hangers, clothes hangers, and hooks. The machine integrates automatic feeding of the main hanger body, vibratory bowl feeding for hooks and clips, press-fitting/riveting, spring assembly, and finished product inspection and discharge. It achieves a one-stop automated assembly process—transforming loose parts into finished hangers—with a production speed of 800–1,500 units per hour, effectively replacing traditional manual assembly methods.
Key Advantages:
Precision Press-Fitting and Riveting: Utilizes a high-precision pneumatic/servo press-fitting system combined with custom jigs to accurately press or rivet components (hooks, clips, springs, etc.) onto designated locations on the hanger body. Pressing depth and force are controllable, ensuring secure and reliable riveting that eliminates the risk of parts coming loose.

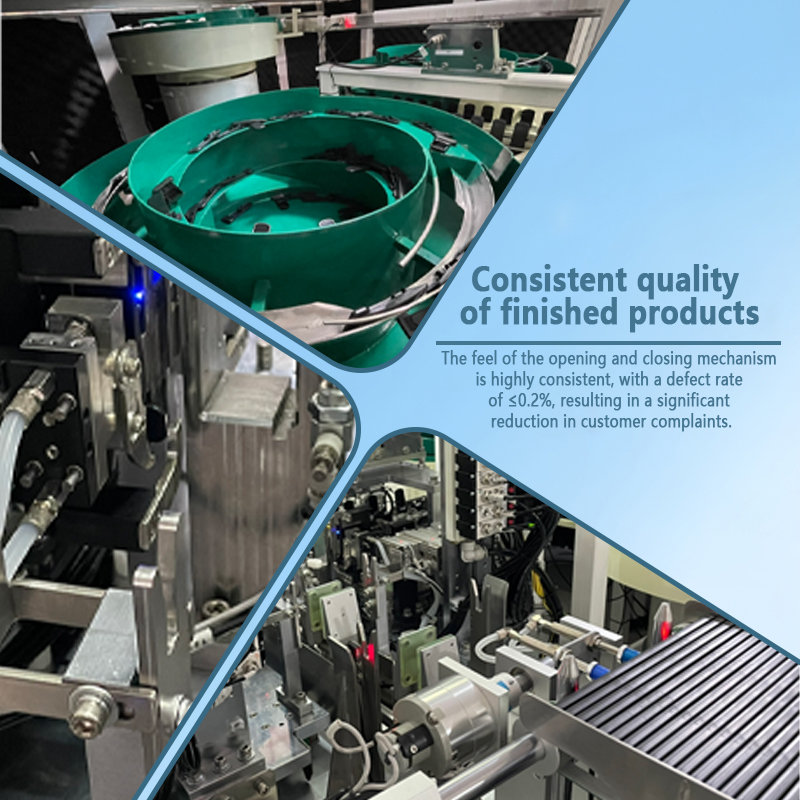

Automatic Spring Assembly: Equipped with a specialized spring dispensing and compression-feeding mechanism. Springs are automatically compressed to a preset length before being pushed into the clip assembly station, overcoming challenges associated with handling small, difficult-to-manage, or "fly-away" springs; the assembly success rate exceeds 99.5%.
Scratch-Resistant Design: Contact surfaces of positioning and clamping mechanisms at all stations are lined with urethane or brush-style cushioning layers. This prevents scratches or indentations on the hanger body's electroplated or painted finishes, preserving the product's aesthetic integrity.
Multi-Specification Compatibility: By swapping out vibratory bowl tracks, press-fitting jigs, and positioning templates, the machine accommodates trouser hangers and clothes hangers of various sizes and structures (e.g., clip-style hangers, non-slip hangers, multi-hook hangers), allowing for flexible and convenient product changeovers.
In-line Inspection and Rejection: Features an integrated inspection system using photoelectric and force sensors (based on mechanical contact and photoelectric signal comparison, rather than AI self-learning). It automatically verifies correct component assembly, checks for missing springs, and ensures secure riveting. Defective products are automatically diverted to a scrap bin, guaranteeing high product quality.
Robust Structure: The machine frame is constructed from welded, high-strength, thickened square steel. Paired with a precision cam indexer (rotary or linear conveyor mechanism), the equipment operates smoothly with precise positioning, making it suitable for continuous, 24-hour production.
User-Friendly Operation: It features a PLC and touchscreen HMI for real-time operational monitoring and fault code alerts that facilitate rapid troubleshooting. A multi-recipe storage function supports quick product changeovers, and general operators can run the machine after minimal training.
Applications:

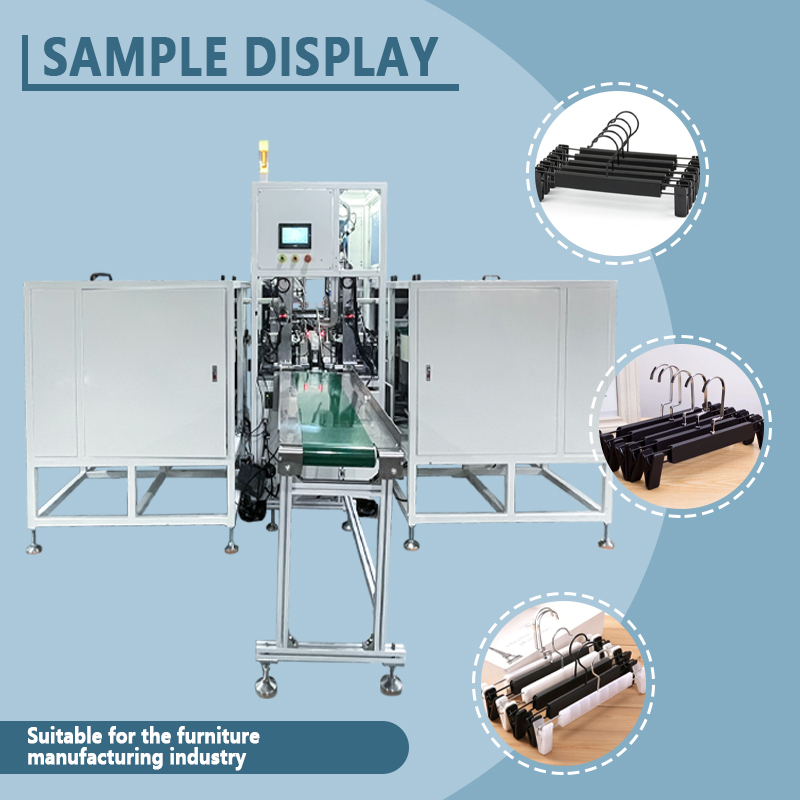

Widely applicable to the large-scale, standardized assembly of garment display accessories (plastic trouser hangers, coat hangers, skirt hangers, suit hangers), household items (drying racks, trouser clips, clothespins), and retail display supplies. With its efficient, stable, and precise assembly performance, the Guanshentai automatic trouser hanger assembly machine helps hanger manufacturers automate their assembly processes, effectively reducing labor costs while enhancing product quality consistency and delivery efficiency.

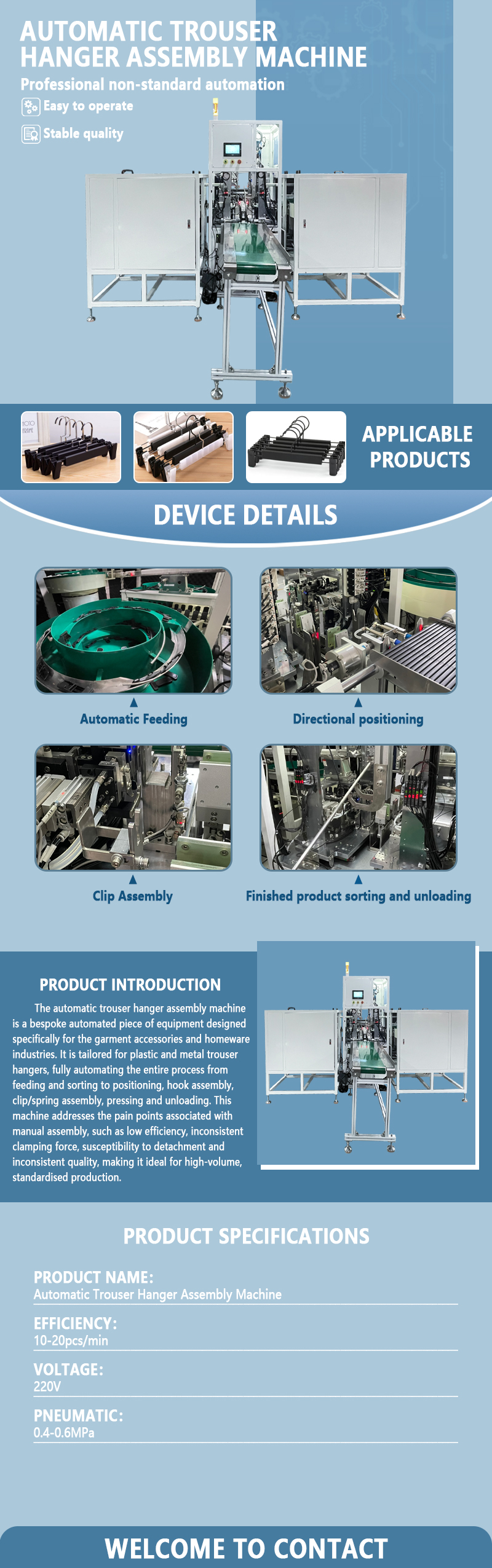

Technical parameters:
Model Number: GST-WJ009A
Voltage: 220V AC 50HZ
Air pressure: 0.4-0.6MPA
Working efficiency: 10-20/minute
Dimension: L2600*W1800*1500H
Customized Support: Yes
