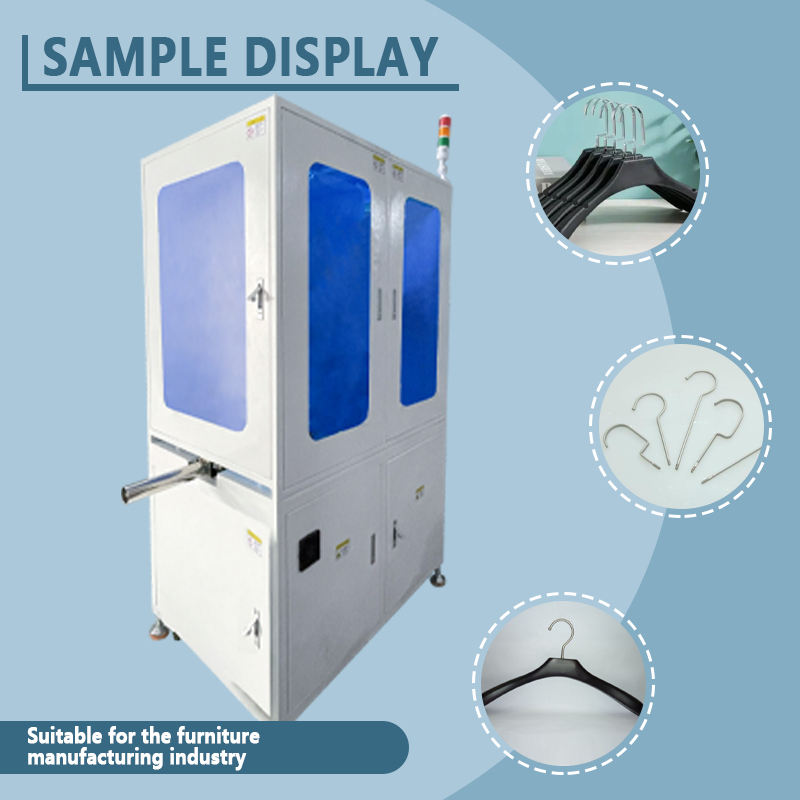

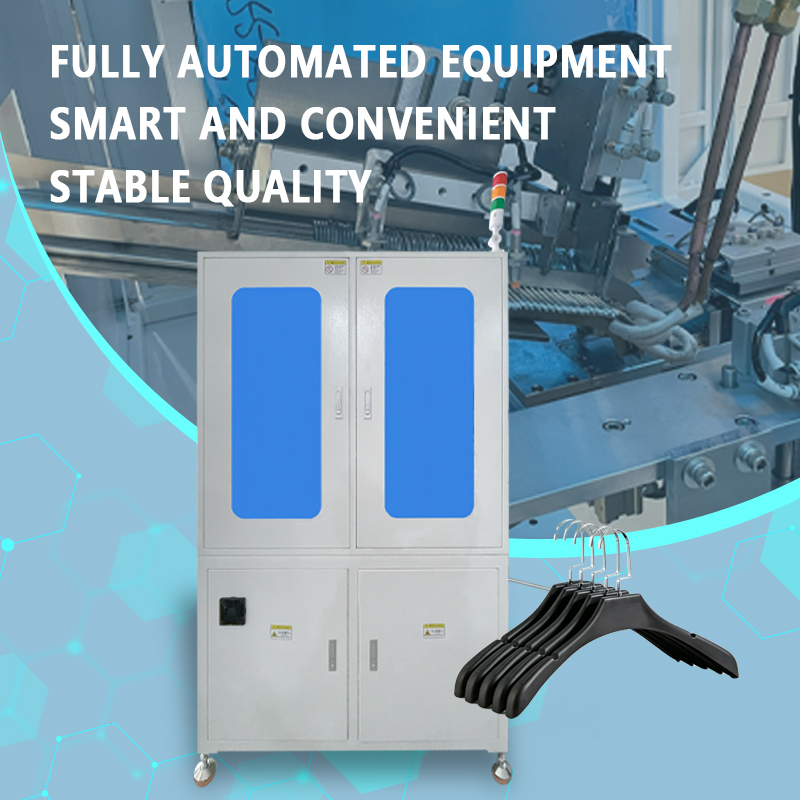

The Guanshentai Automatic Hanger Hook Insertion Machine is specialized equipment designed for the automated assembly of plastic hangers and metal hooks. Integrating automatic hanger feeding, hook sorting and feeding, precise hook press-fitting or screw-in insertion, and automatic finished-product unloading, the system delivers a one-stop, fully automated assembly process—transforming bulk components into finished hangers. With production speeds reaching 2,000–4,000 units per hour, it effectively replaces traditional manual hook insertion methods.
Key Advantages:
Precision Hook Insertion: Utilizes a servo-driven press-fit or rotary mechanism combined with precision guide molds to ensure hooks are accurately inserted into the hanger's designated holes. Insertion depth is consistent, with no misalignment or looseness; assembly precision reaches ±0.2mm, ensuring a secure and durable finished product.

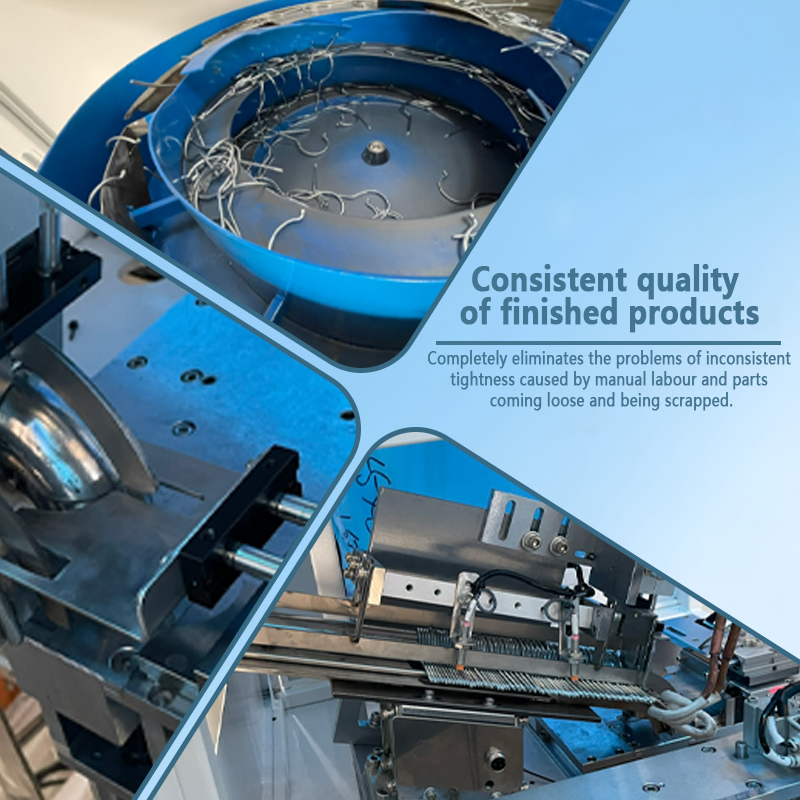

Flexible Feeding System: Hangers are fed via specialized vibratory bowls or hopper-style automatic sorting systems, while hooks are sorted automatically via vibratory bowls and track conveyors. Hook orientation is automatically identified and corrected, eliminating the need for manual pre-sorting and reducing feeding labor time.
Scratch-Prevention Design: Hanger positioning fixtures and clamping mechanism contact surfaces are lined with flexible materials (such as polyurethane or silicone). Adjustable clamping pressure prevents surface damage, scratches, or indentations during assembly, preserving the product's pristine appearance.
Multi-Specification Compatibility: By swapping positioning molds and insertion fixtures, the machine accommodates various hanger styles (adult, child, trouser, and skirt hangers) and metal hook types (thick, thin, swivel, and fixed hooks). This allows for flexible, convenient production changeovers and multi-purpose utility.
Optional Dual/Multi-Station Configurations: Production setups can be configured for single, dual, or multi-station parallel assembly based on capacity requirements. Each station operates independently yet synchronously, effectively boosting per-unit output efficiency.
In-line Inspection and Rejection: Integrated sensors detect hook insertion depth and security. Defective units—such as those with missing hooks, incomplete insertion, or misalignment—are automatically identified and rejected, ensuring a 100% pass rate for finished products.
Low-Material Alarm and Auto-Stop: Equipped with detection for low material levels in the hanger body hopper and hook vibratory bowl, as well as automatic shutdown protection for material jams, ensuring continuous, stable operation and reducing the need for manual monitoring.
User-Friendly Operation: Features a PLC and touchscreen HMI; parameters such as assembly speed, press-fit stroke, and pressure can be set with a single touch. Multiple product recipes can be saved and quickly recalled during changeovers, allowing general workers to operate the machine proficiently after simple training.
Applications:
Widely suitable for large-scale, standardized assembly in the hanger manufacturing industry (including plastic, PVC-coated, flocked, and wooden hangers), as well as in the production of household goods (hanger assembly) and garment accessories. With its efficient, precise, and stable assembly performance, the Guanshentai automatic hanger hook insertion machine helps manufacturers automate the hook assembly process, effectively reducing labor costs while boosting production capacity and product quality consistency.

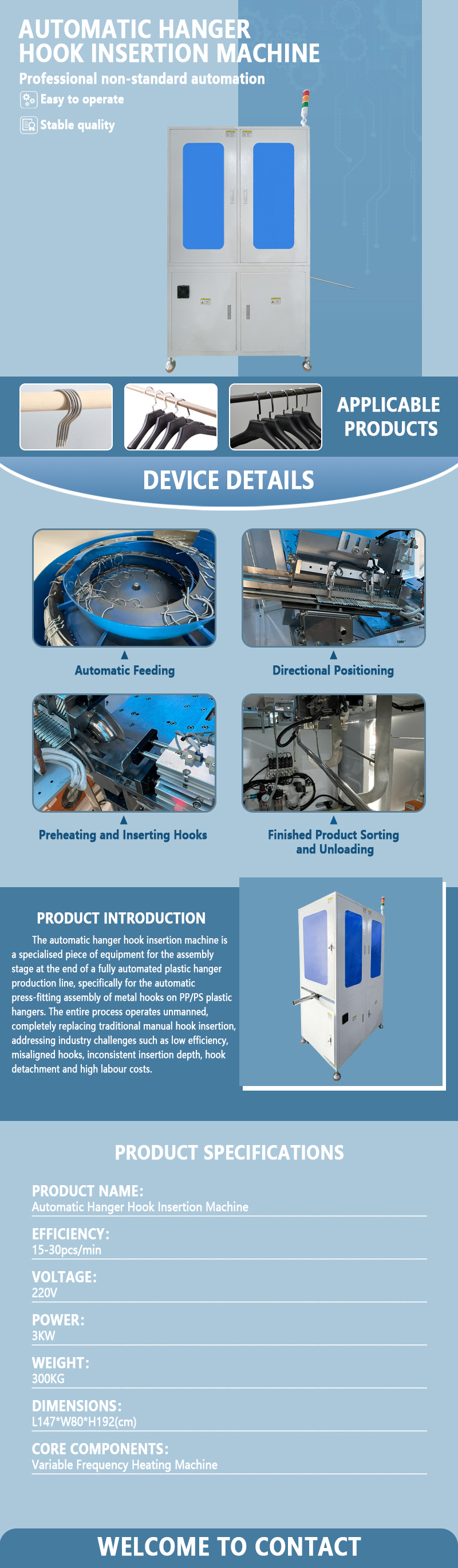

Technical parameters:
Model Number: GST-WJ010A
Sizes: L2000*W1000*H1500(mm)
Production Capacities: 20-40pcs/min
Power (Output): 220V
Customized Support: Yes
