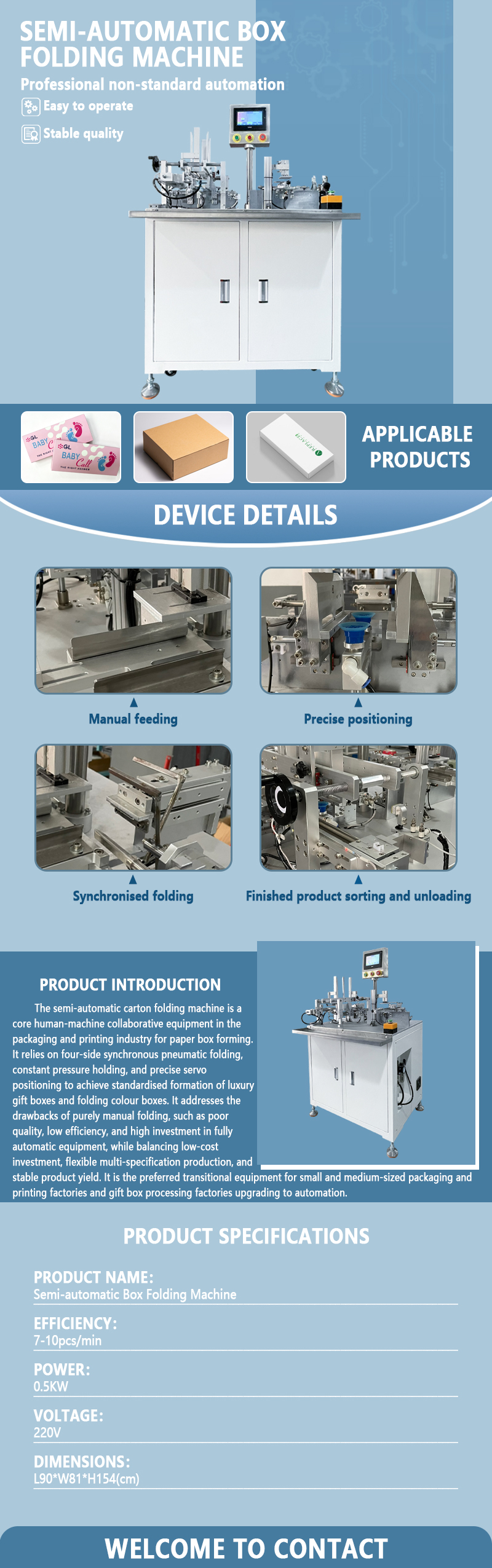

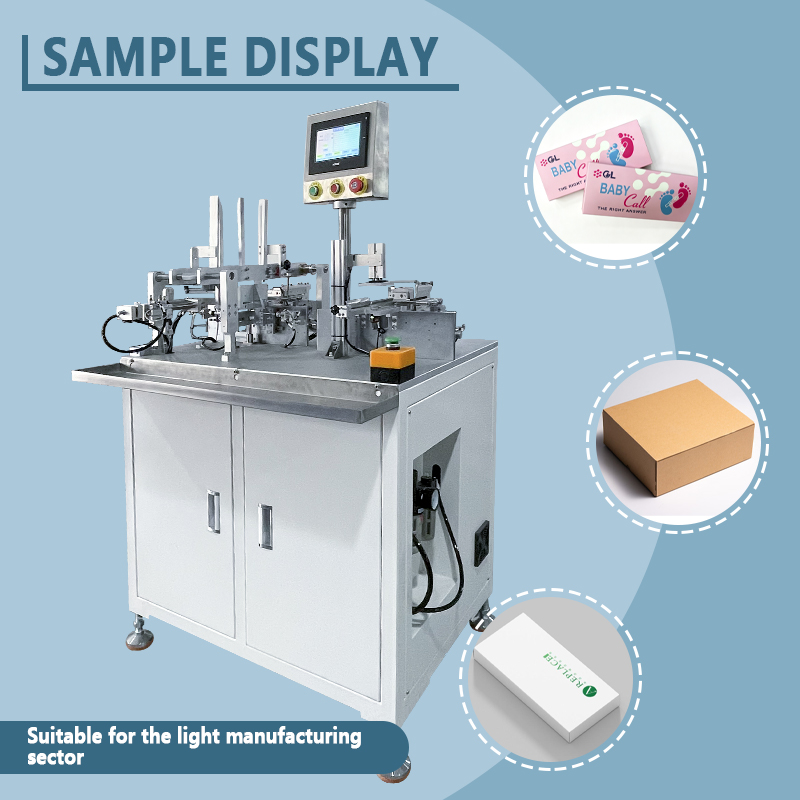

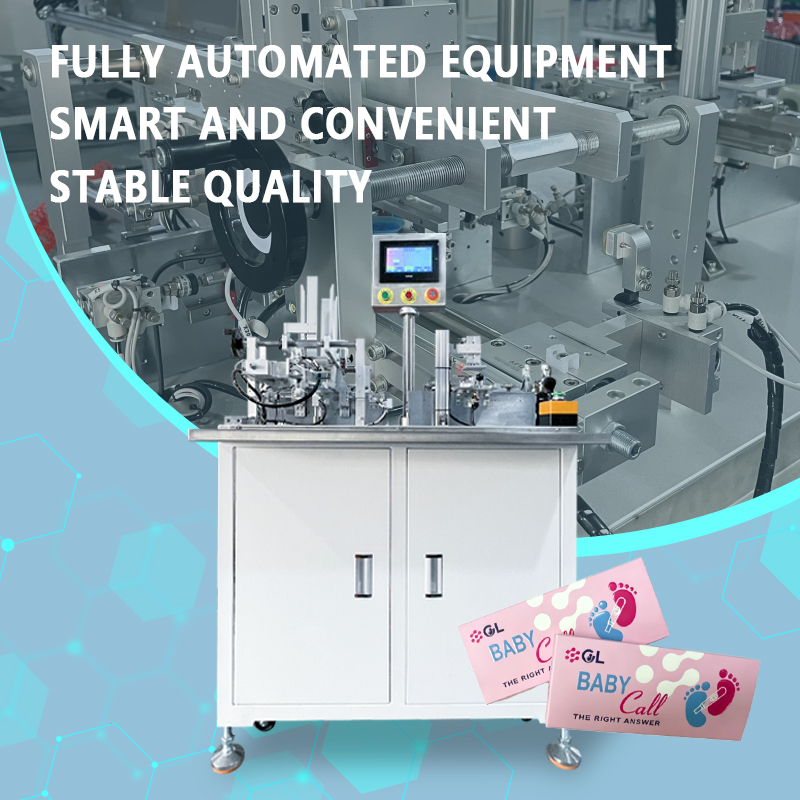

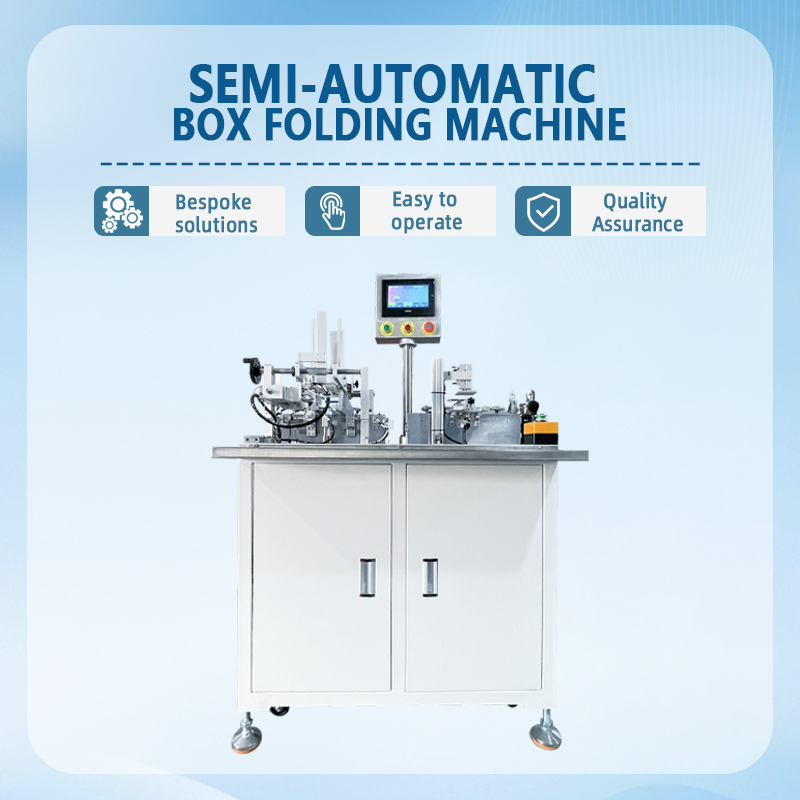

The Guanshentai semi-automatic box folding machine is specialized equipment designed for the automatic folding and forming of various paper packaging boxes. Utilizing precision folding molds and a m
The Guanshentai semi-automatic box folding machine is specialized equipment designed for the automatic folding and forming of various paper packaging boxes. Utilizing precision folding molds and a multi-station mechanism for folding flaps and inserting tabs, the machine automatically performs a series of forming actions—including pre-folding, edge folding, tab insertion, and bottom locking—after the operator manually places the cardboard blank. It accommodates box dimensions ranging from 80–400mm in length, 50–300mm in width, and 20–150mm in height, with a folding speed of 15–35 boxes per minute. It effectively replaces manual folding, significantly enhancing efficiency and consistency.
Key Advantages:
Versatile Box Compatibility: Supports the folding of various box types, including mailer boxes (airplane boxes), standard RSC boxes, lock-bottom boxes, auto-lock bottom boxes, lid-and-base boxes, and irregular shapes. Switching between box types is achieved through quick mold changes and positioning component adjustments, allowing one machine to handle multiple applications.

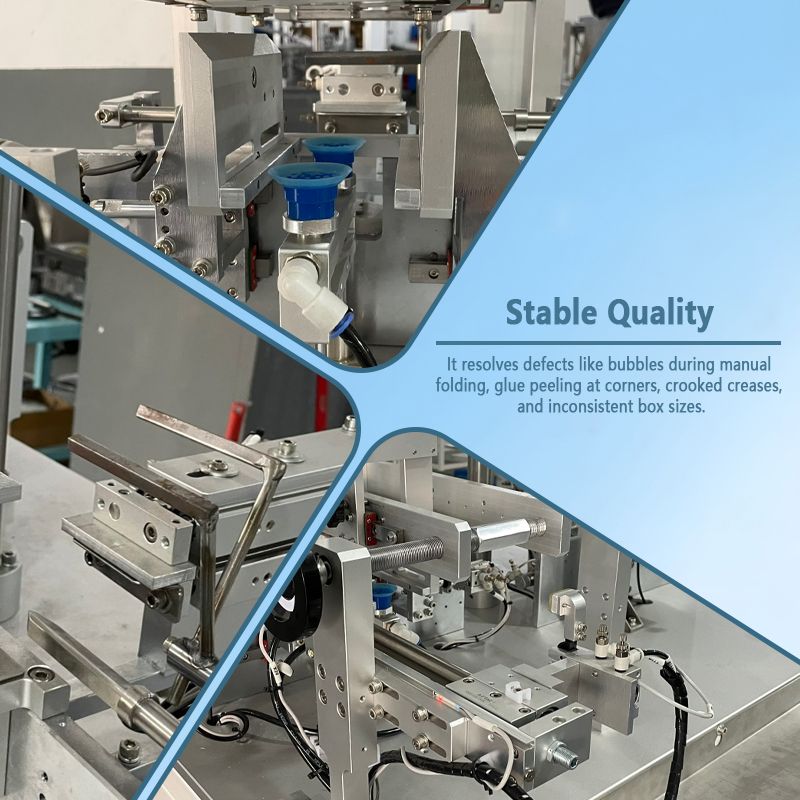

Precision Mold Forming: Employs high-precision folding molds to ensure accurate folding angles and precise tab insertion without unwanted creases. The formed box is square, flat, and free from skewing or curling corners, delivering a finish comparable to high-quality manual folding.
Stable Pneumatic Operation: The machine is pneumatically driven (operating pressure: 0.4–0.6 MPa) with adjustable folding pressure. Movements are rapid yet gentle, preventing cardboard cracking or damage to surface finishes such as lamination, hot stamping, or UV coating.
Counting and Error Prevention: Features a built-in high-precision counter for real-time production tracking. Users can set a target output for automatic shutdown, facilitating shift management and eliminating manual counting errors.
Simple and Safe Operation: Operators simply place the cardboard flat into the positioning area and activate the process via a foot pedal or start button. Safety features include two-hand start controls, an emergency stop, and protective guards to ensure safe and reliable operation.
Space and Effort Saving: Compact design with lockable swivel casters allows for flexible movement and stable positioning. No fixed installation is required; the unit can be easily relocated to different workstations, making it ideal for flexible production scenarios involving diverse product varieties and small batch sizes. Applications:
Suitable for semi-automatic folding and forming operations across a wide range of paper packaging products, including those for the food industry (mooncake, chocolate, and pastry boxes), cosmetics (serum, makeup, and perfume boxes), electronics (mobile phone, earphone, and wearable device boxes), pharmaceuticals (medicine and health supplement boxes), e-commerce shipping (mailer boxes and corrugated carton forming), and gift bags. With its efficient, flexible, and stable performance, the Guanshentai semi-automatic box folding machine helps packaging printers and end-users upgrade to semi-automated box forming, effectively reducing the labor intensity of manual folding and ensuring consistent packaging quality.
Technical parameters:
Model Number: GST-WJ018A
Sizes: L90*W81*H154(cm)
Production Capacities: 7-10pcs/min
Power (Output): 0.5KW
VOLTAGE:220V
Customized Support: Yes
