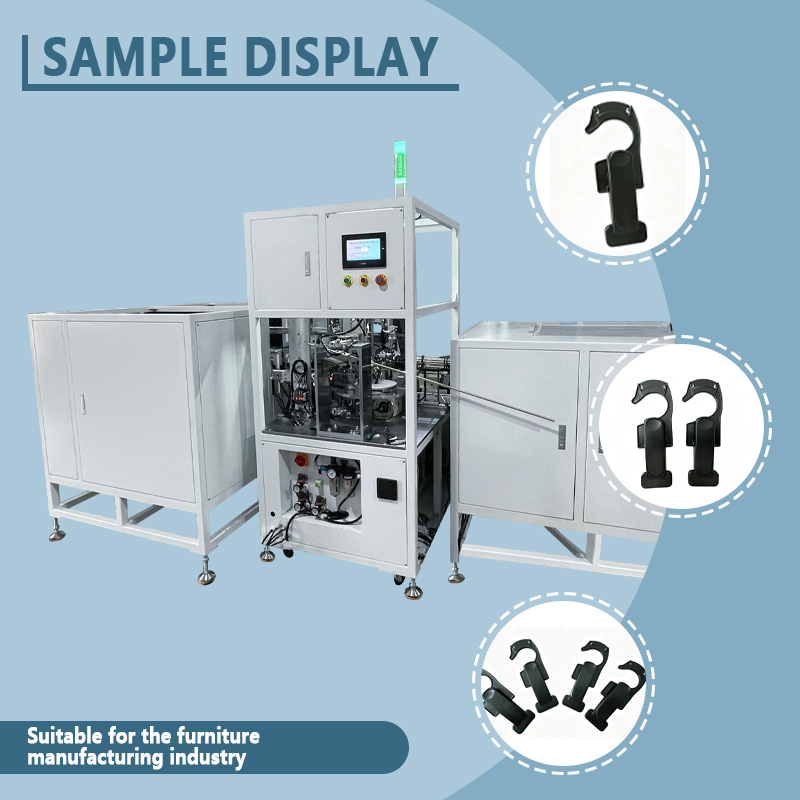

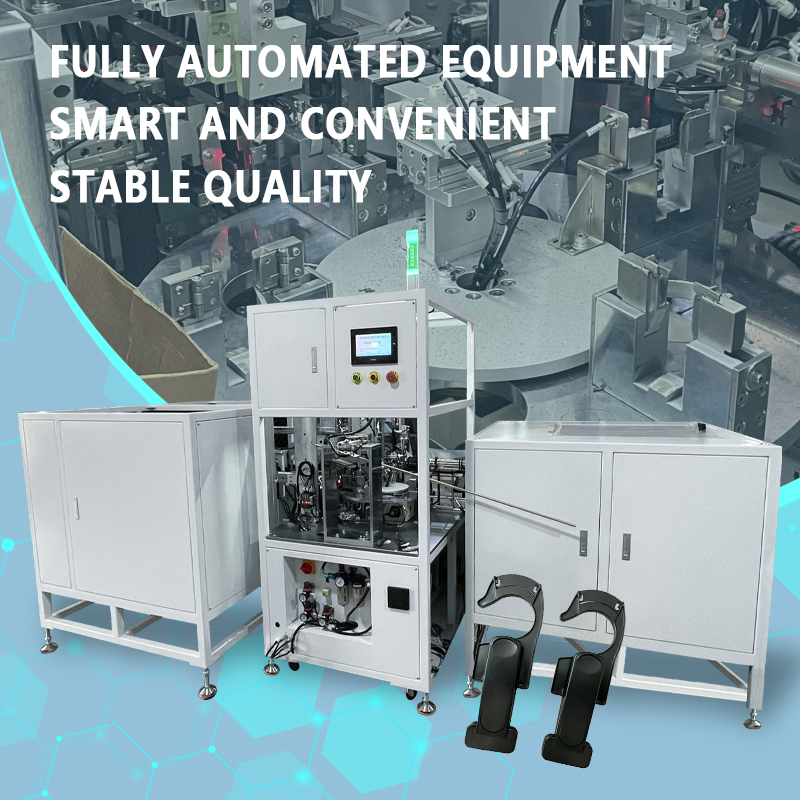

The Guanshentai Single-Hook Clothespin Automatic Assembly Machine is specialized equipment designed for the fully automated assembly of single-hook clothespin components. Integrating automatic feeding of hook bases, automatic sorting and feeding of left and right clip bodies, automatic supply of elastic clips, precision press-fitting, and finished product inspection and unloading, the entire line achieves a one-stop, fully automated assembly process—transforming bulk parts into finished clothespins at speeds of 40–50 units per minute—effectively replacing traditional manual assembly.
Key Advantages:
Automated Multi-Component Assembly: Utilizes a multi-station collaborative platform to sequentially execute processes such as hook base positioning, alignment of left and right clip bodies, and press-fitting of elastic clips into connection slots. Synchronized station linkage ensures a stable and efficient assembly cycle.
High-Precision Positioning and Press-Fitting: Equipped with precision guide slots and side-pressure mechanisms to ensure accurate alignment of the left and right clip bodies with the hook base's connection pivot. A precision press-fitting mechanism inserts the elastic clip prongs into the connection slots accurately, ensuring proper seating without misalignment or damage.

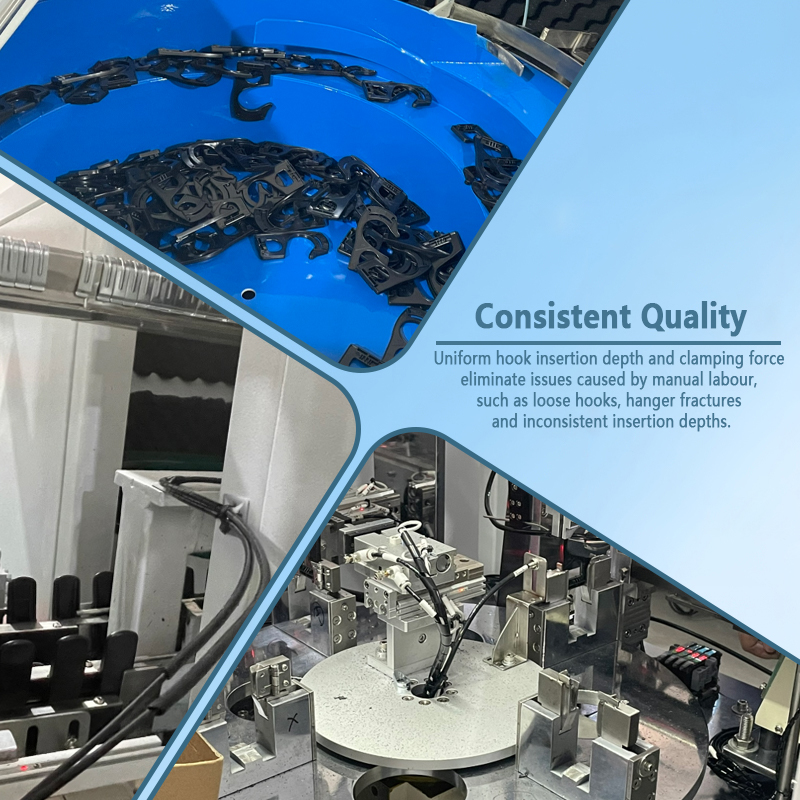

Automated Feeding System: Each component features automatic sorting via vibratory bowl feeders and linear vibratory tracks. A specialized feeding device automatically picks up hook bases and places them into the positioning template slots, ensuring continuous, stable material transport without the need for manual placement.
Error Prevention and Safety Protection: Equipped with sensors to detect component presence at each station; the system automatically stops and triggers an alarm if materials run out. It pauses and issues alerts during anomalies, ensuring continuous, stable operation.
Multi-Specification Compatibility: Accommodates various sizes and styles of single-hook clothespins by simply changing feed rails, positioning templates, and press-fitting jigs, allowing for flexible and convenient production changeovers.
Robust and Durable Construction: Features a heavy-duty structural steel frame and a stainless steel work surface. The structure is stable and vibration-resistant, designed to withstand long-term, high-intensity workshop operations.
User-Friendly Operation: Controlled via PLC and a touchscreen HMI, the system offers real-time operational monitoring and intuitive parameter settings, allowing general operators to master the machine with minimal training.
Application Scenarios:
Widely applicable to large-scale, standardized automated assembly in sectors such as the manufacture of daily necessities (single-hook clothespins, hook-style clothespins, and standard drying clips), the processing of household goods (plastic clothespins and metal-hook clothespins), and the production of hardware and plastic products. With its efficient, precise, and stable assembly performance, the Guanshentai automatic single-hook clothespin assembly machine helps manufacturers upgrade their assembly processes through automation, effectively reducing labor costs while boosting production capacity and product consistency.
Equipment Details:

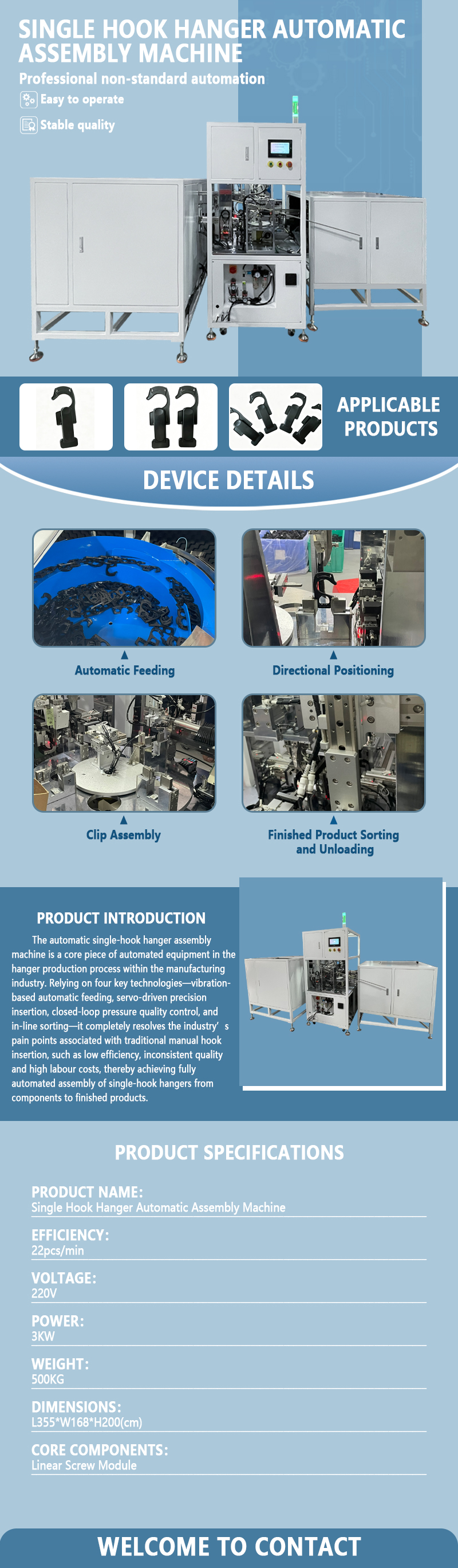

Model Number: GST-WJ019A
Sizes: L355*W168*H200(cm)
Production Capacities: 22pcs/min
VOLTAGE:220V
POWER:3KW
WEIGHT:500KG
CORE COMPONENTS:Linear Screw Module
Customized Support: Yes
