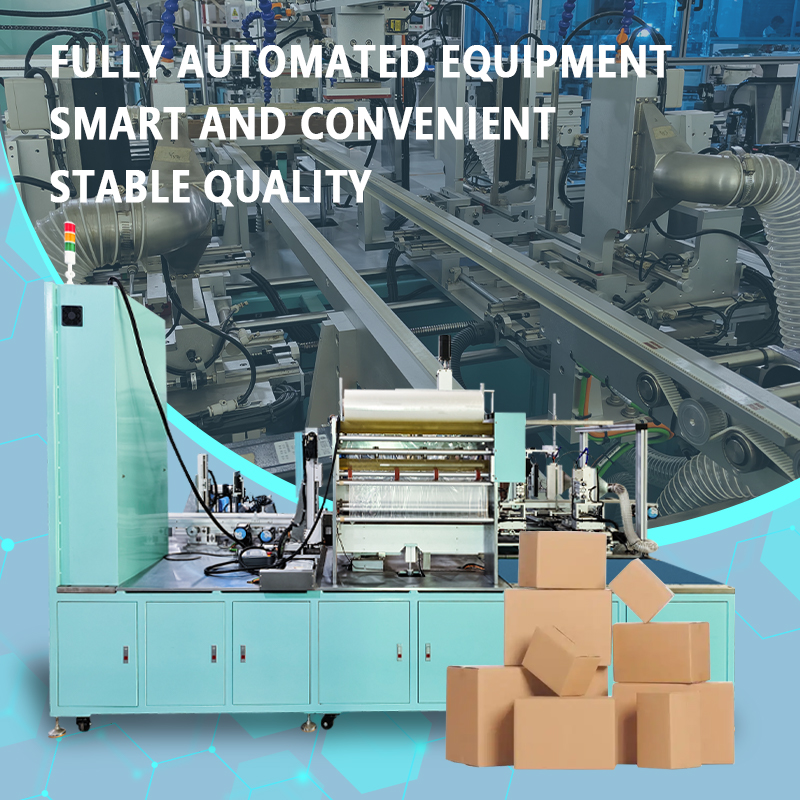

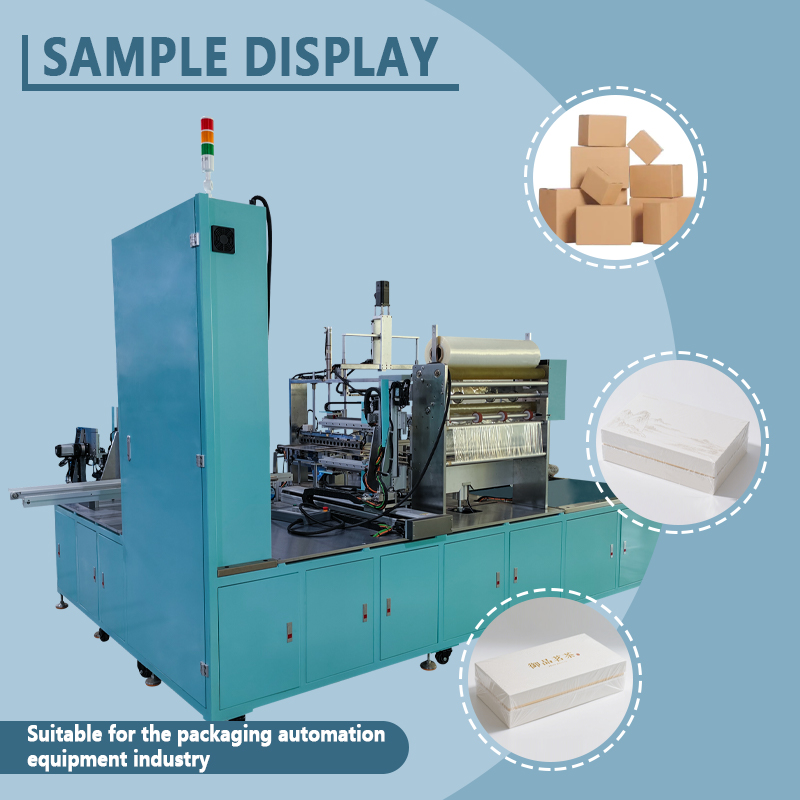

The Guanshentai automatic laminating machine is specialized equipment designed for the automatic application of protective films to the surfaces of various flat products. Integrating an automatic feeding platform, anti-static and dust-removal units, precision laminating rollers, an automatic cutting system, and a finished product output mechanism, the machine applies protective films (such as PE, PET, or PVC) smoothly and evenly using either cold or hot lamination methods. With lamination speeds ranging from 5 to 20 meters per minute, it effectively replaces manual application and is widely used for surface protection on boards, panels, and casings.
Key Advantages:

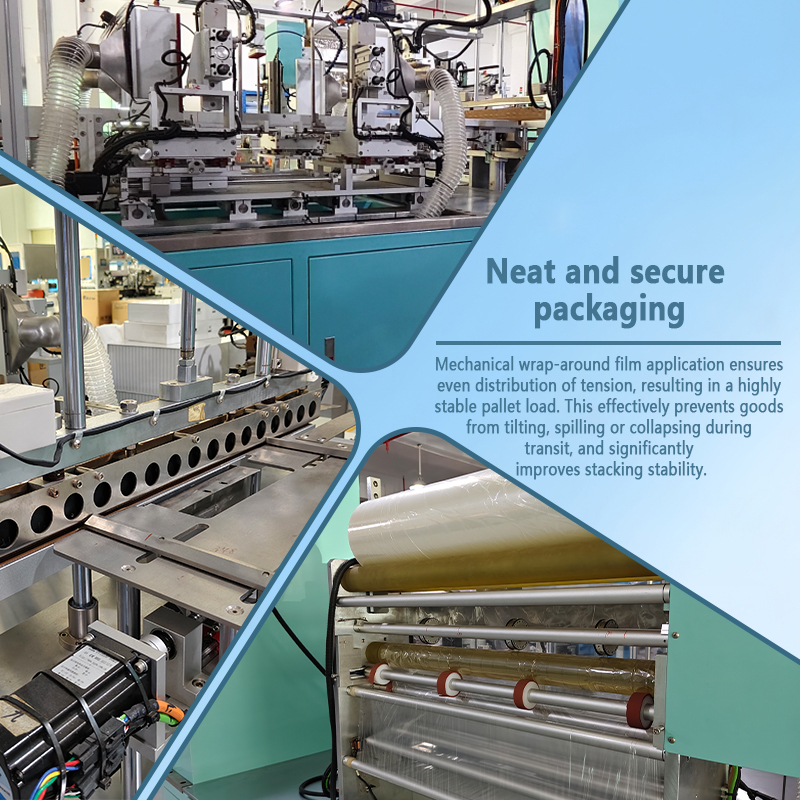

Precision Lamination and Pressing: Equipped with a combination of high-precision silicone pressure rollers and steel rollers, the system uses adjustable air pressure to ensure stable, uniform force. This results in a secure bond free of bubbles, wrinkles, or misalignment. The pressing pressure is digitally adjustable (0.1–0.6 MPa) to accommodate various material thicknesses and types.
Automatic Anti-Static and Dust Removal: Before lamination, the machine employs high-efficiency anti-static ion bars and adhesive dust-removal rollers. This effectively eliminates surface static and removes microscopic dust particles, ensuring a clean finish and preventing defects—such as trapped dust or bubbles—that would otherwise require rework.
Synchronized Automatic Cutting: An integrated automatic cutting system at the output end (featuring both cold and hot cutting modes) automatically severs the protective film at preset lengths. It delivers clean, burr-free edges with a cutting precision of ±0.5 mm. The cutting process is synchronized with the lamination speed, eliminating the need for secondary trimming.
Dual Cold/Hot Lamination Modes: The machine supports both cold and hot lamination. Cold lamination is suitable for standard protective films and PE electrostatic films, operating at room temperature without heating. Hot lamination utilizes independently temperature-controlled heating rollers (adjustable from room temperature to 120°C); this is ideal for PET protective films and specialty functional films that require heat to activate the adhesive layer, thereby enhancing bonding strength and adhesion.
Compatibility with Various Specifications: By adjusting the guide mechanisms and the gap between pressure rollers, the machine accommodates a wide range of flat products—handling widths of 50–800 mm and thicknesses of 0.5–50 mm—making product changeovers quick and convenient.
Safety Features: Equipped with an emergency stop button, overload protection, and anti-entrapment safety devices; the machine automatically halts upon detecting anomalies to ensure operator safety. The roller assembly area features a transparent protective cover, allowing for clear visibility of the operating status.
Counting and Statistics: Features a built-in high-precision counting system that records the number of laminated units and the length of material processed in real-time, facilitating production statistics and management.
Ease of Operation: Utilizes a PLC and touchscreen HMI for intuitive parameter settings—such as lamination speed, cutting length, and heating temperature—and supports the storage of multiple job recipes that can be recalled with a single touch during product changeovers; general operators can run the machine after minimal training.
Applications:
Widely applicable to surface lamination and protection for various flat products, including sheet materials (acrylic, PC, PVC, and aluminum-plastic composite panels), electronics (mobile phone panels and display screen films), building materials (decorative panels and door panels), advertising (light box panels), and hardware products (stainless steel and color-coated steel sheets). With its efficient, precise, and clean lamination performance, the Guanshentai automatic laminating machine helps manufacturers automate their surface lamination processes, effectively reducing labor costs while enhancing the quality and consistency of surface protection.
Technical parameters:
Model Number:GST-GST-WJ023A
Sizes:L3.5*W2.2*H2.2(M)
Production Capacities: 5 pcs/min (large cartons)
VOLTAGE:380v
POWER:13KW
ACCESSORIES:Omron, Schneider
WEIGHT:1500KG
Customized Support: Yes
