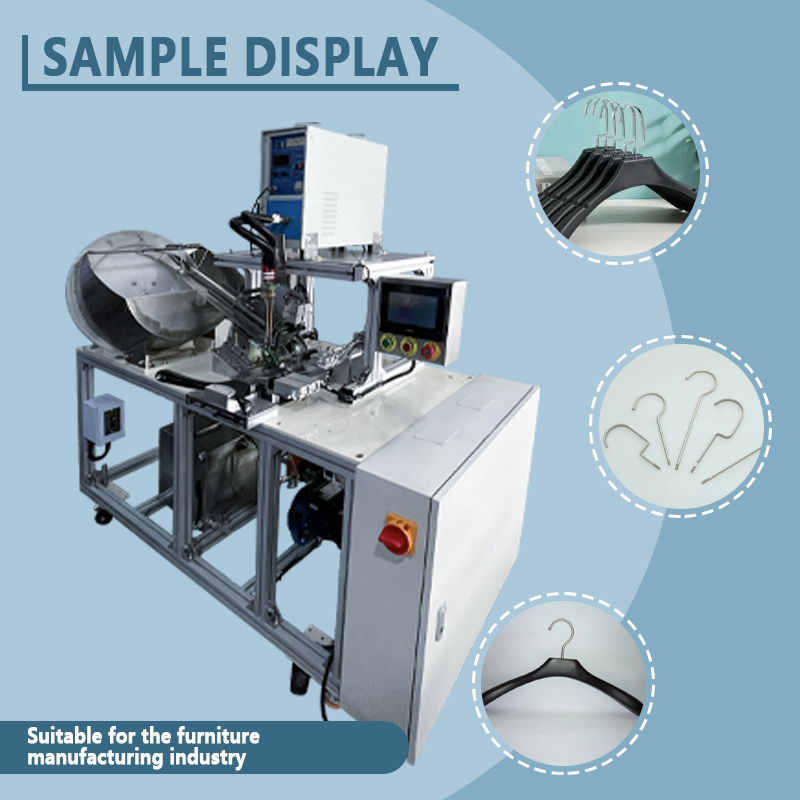

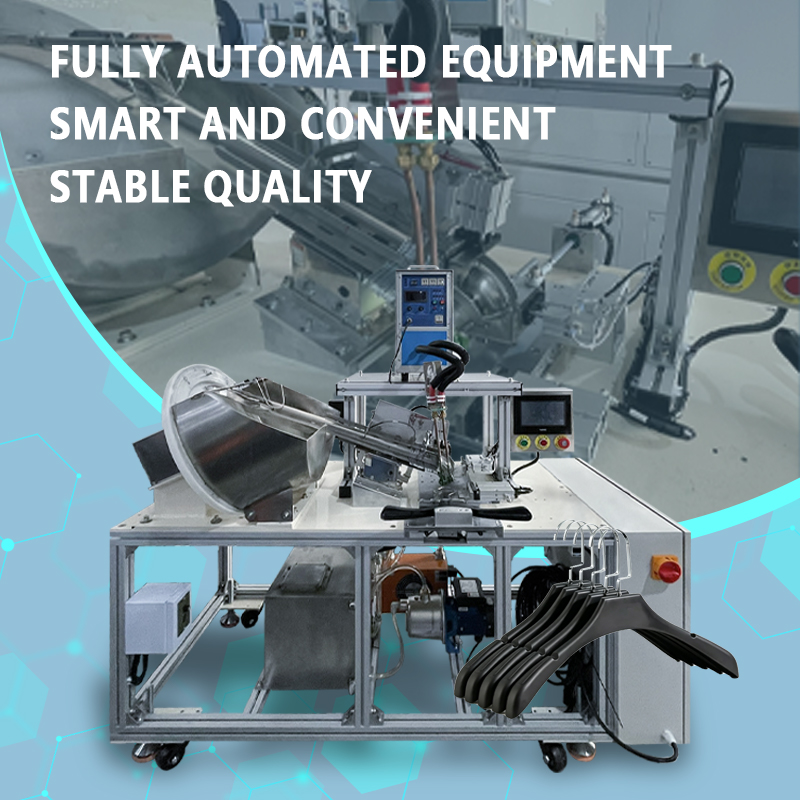

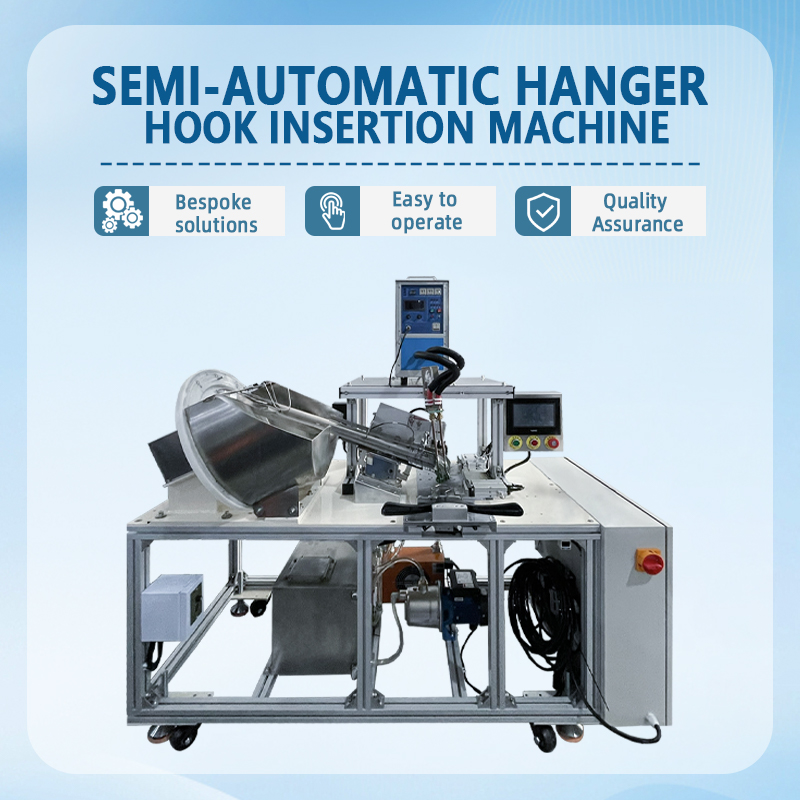

The Guanshentai semi-automatic hanger hook insertion machine is designed for the automated assembly of hooks onto plastic, wooden, and metal hangers. Utilizing a pneumatic drive system and precision positioning fixtures, the machine automatically handles hook feeding, orientation, press-fitting, and seating verification after the operator manually loads the hanger body. With an insertion speed of 15–25 units per minute, it significantly replaces traditional manual labor, effectively enhancing efficiency and consistency in the hook assembly process.
Key Advantages:
Precision Hook Press-Fitting: A cylinder-driven press mechanism works with precision guide channels to automatically orient and insert hooks into the hanger's designated slots. Press-fitting depth is precisely controlled via hard stops (deviation within ±0.3mm), ensuring hooks are seated correctly without misalignment or looseness.

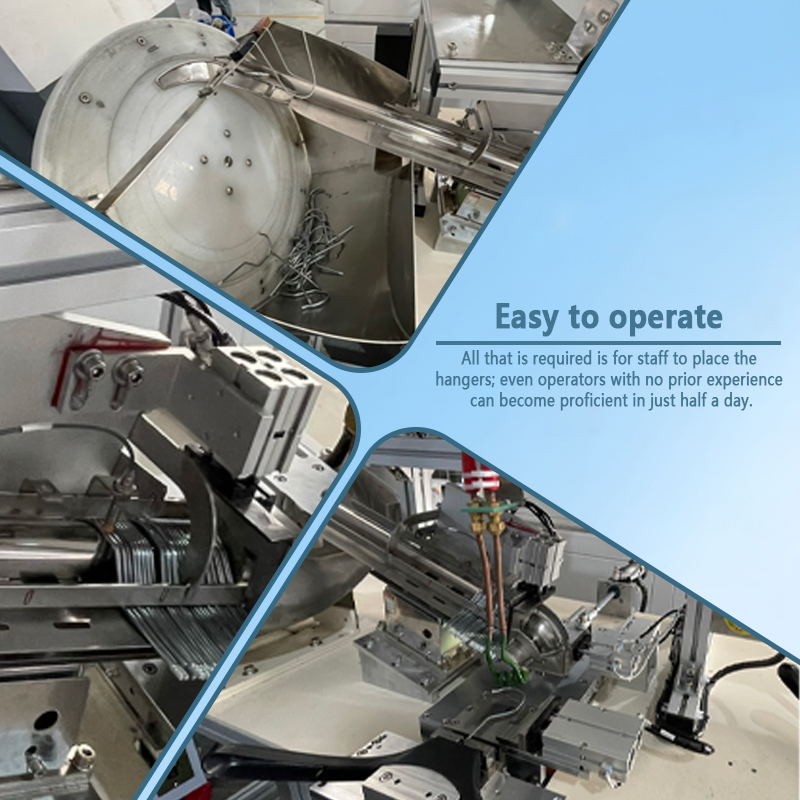

Automatic Hook Feeding: Equipped with a vibratory bowl feeder for automatic sorting and a linear vibratory track for transport, the system ensures a continuous, stable supply of hooks to the pickup station. This eliminates the need for manual handling and alignment, thereby reducing operator fatigue.
Error Prevention and Seating Detection: Features sensors for hook presence and press-fitting depth; the machine automatically stops and alarms if a hook is missing, and pauses if a hook is not seated correctly, preventing defective products—such as those with missing or misaligned hooks—from proceeding down the line.
Flexible Adaptation to Specifications: By swapping out hook feed rails, press-fitting jigs, and positioning templates, the machine accommodates various hanger sizes and styles (children's, adult, trouser hangers, etc.) and hook types (plastic, metal, swivel hooks, etc.), offering versatility and flexible production switching.
Ease of Operation and Safety Design: Utilizes a dual-start system (two-hand buttons and a foot pedal) combined with a light curtain safety guard to ensure operator hand safety. It is also equipped with an emergency stop button and overload protection for rapid response to abnormal conditions.
Robust and Durable Structure: The machine features a heavy-duty steel frame and a stainless steel work surface, ensuring structural stability and vibration resistance. High-quality pneumatic components are used to ensure reliability during continuous, long-term operation in a workshop environment.
Intuitive Interface: Equipped with a compact HMI or touchscreen panel, the system displays real-time operating status and allows for easy parameter settings. General workers can master its operation after minimal training.
Application Scenarios:
Widely applicable to small-to-medium and large-scale hanger hook assembly operations across various sectors, including hanger manufacturing (assembly of hooks for plastic, wooden, and metal hangers), household goods processing (hooks for trouser and skirt hangers, children's hangers), and the production of general consumer goods. With its outstanding performance—characterized by precision, efficiency, and ease of use—the Guanshentai semi-automatic hanger hook insertion machine helps manufacturers upgrade their hook assembly processes to semi-automation, effectively reducing labor costs while enhancing assembly consistency and product quality.

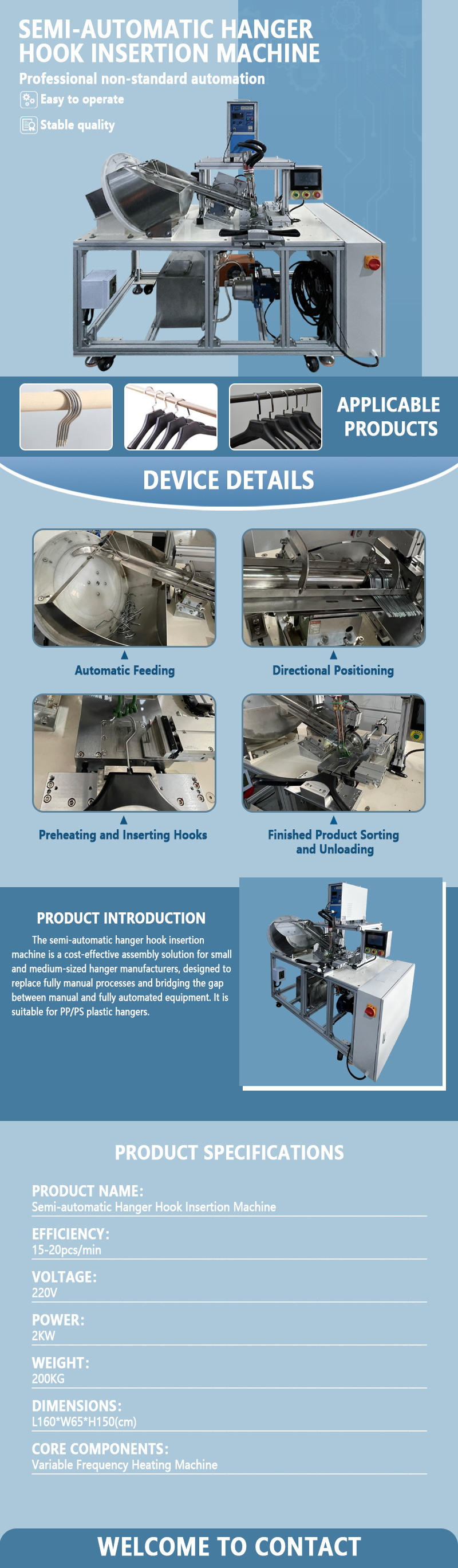

Technical parameters:
Model Number: GST-GST-WJ022A
Sizes:L160*W65*H150(cm)
Production Capacities: 15-20pcs/min
POWER:2KW
VOLTAGE:220V
WEIGHT:200KG
CORE COMPONENTS:Variable Frequency Heating Machine
Customized Support: Yes
