The Guanshentai Automatic Tube Filling and Sealing Machine is an integrated system designed specifically for the quantitative filling and automatic sealing of various tube packaging types (aluminum, plastic, and laminate tubes). It combines automatic tube feeding, tube mouth positioning, quantitative filling, automatic sealing (heating/folding/embossing), batch coding, and finished product discharge into a single unit. The system enables a fully automated, one-stop workflow from empty tubes to finished filled tubes, achieving speeds of 20–60 tubes per minute (depending on tube diameter and fill volume) with stable filling accuracy within ±0.5%. It is widely used for filling and sealing tube products across the personal care, pharmaceutical, food, and chemical industries.
Key Advantages:

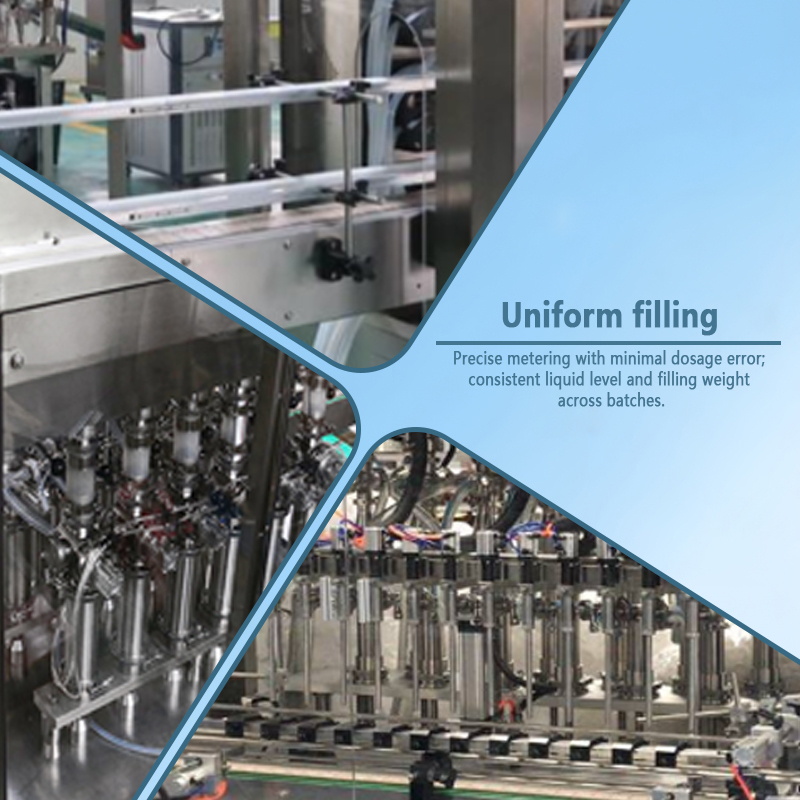

Precision Quantitative Filling: Utilizes a high-precision servo-driven metering system (piston or rotary pump). Fill volumes can be freely set between 1ml and 500ml with high repeatability, ensuring consistent fill levels across all tubes and eliminating issues with under- or over-filling.
Automatic Tube Feeding and Positioning: Equipped with a tube hopper and automatic pick-and-place mechanism, the machine extracts empty tubes individually and places them accurately into the filling station molds. Precise tube mouth positioning ensures the filling nozzle inserts smoothly without misalignment or damage to the tube threads.
Multi-Mode Sealing System: To accommodate various tube materials and sealing requirements, the machine offers multiple sealing modes—including heat sealing (for aluminum and plastic tubes), folding (for laminate and plastic tubes), and embossing (to enhance aesthetics and seal integrity)—meeting diverse process needs with a single unit. The resulting seals are flat, secure, and airtight, featuring clear, well-defined patterns.
Automatic Coding and Batch Numbering: An integrated automatic coding mechanism applies information such as production dates, batch numbers, and expiration dates to the tube tail or body immediately after sealing. This allows the entire process—filling, sealing, and marking—to be completed on one machine without the need for additional coding equipment.
"No Tube, No Fill" Functionality: Photoelectric sensors detect the presence and position of tubes at the station. If a tube is missing or misaligned, the filling and sealing operations automatically pause, preventing material waste and unnecessary equipment idling.
High-Quality Materials: All product-contact parts are made of SUS316L stainless steel and food-grade seals. The interior walls feature a mirror-polished finish to prevent material adhesion and facilitate easy cleaning, meeting GMP food and pharmaceutical hygiene standards. It is suitable for filling various materials, including pastes, liquids, and creams.
Clean and Safe Design: The machine features an SUS304 stainless steel frame and enclosed safety doors, ensuring a clean, controllable filling zone suitable for operation within cleanrooms. It is equipped with safety light curtains and emergency stop devices to provide comprehensive operator safety.
User-Friendly Operation: Controlled by a PLC with a touchscreen HMI, the system allows for one-touch parameter settings—such as filling volume, speed, sealing temperature/time, and coding position—and supports the storage of multiple product recipes. This enables quick and easy product changeovers, allowing general operators to run the machine after minimal training.
Applications:
Widely applicable to automated tube filling and sealing for various industries, including personal care (tube filling for facial cleansers, hand creams, toothpaste, hair masks, and sunscreen), pharmaceuticals (ointments, eye creams, and gels), food (condensed milk, ketchup, honey, and salad dressings), and chemicals (sealants, lubricants, and A/B adhesives). Guanshentai’s automatic tube filling machine delivers efficient, precise, and hygienic performance, helping tube packaging manufacturers achieve full automation in their filling operations.
Technical parameters:
Model Number:GST-SWYP010A
Sizes:L3800*W1250*H1700(mm)
Production Capacities:40-60pcs/min
VOLTAGE:220V
FILLING ACCURACY:±97% depending on the material
WEIGHT:~1300KG
Customized Support: Yes
