In the fields of modern medicine, cell culture, biological experiments, etc., culture bottles, as a key consumable, are widely used in high-end scientific research and industrial applications such as cell culture, microbial research and vaccine preparation. Its structure needs to have good sealing, sterility and physical strength, and the connection process between the bottle body and the bottle cap and bottle bottom directly affects the safety of use and product quality. Traditional hot pressing, gluing and other methods have problems such as residue, deformation and uncleanliness. As an advanced non-contact heat source welding equipment, the culture bottle ultrasonic welding machine has become an important tool for culture bottle manufacturers to move towards high-quality manufacturing.
I. The importance and challenges of culture bottle welding

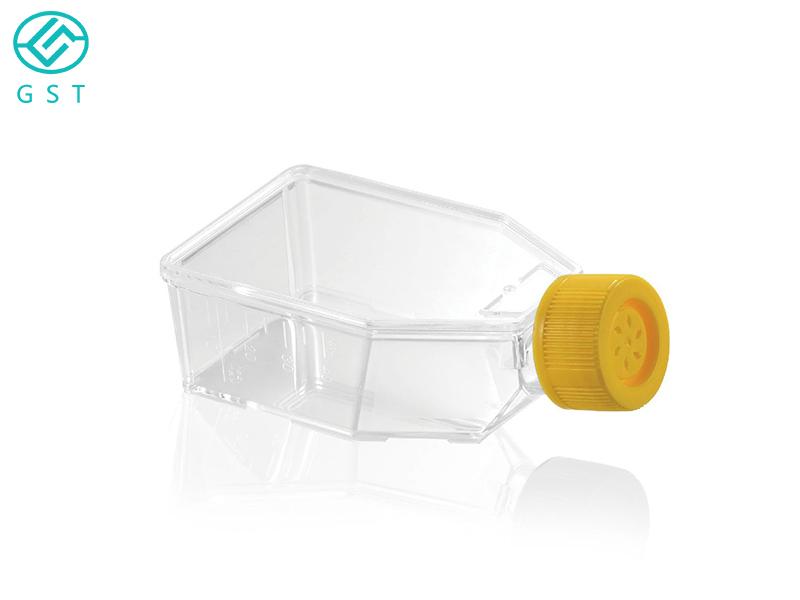

Culture bottles are mostly made of transparent plastic materials such as polystyrene (PS) and polypropylene (PP). During the manufacturing process, the bottle cap, bottle body or bottle bottom needs to be sealed and connected by welding technology to ensure that it does not leak, leak or produce particles under conditions of sterilization, high temperature and high pressure.
Traditional welding methods such as hot melt, hot plate or glue bonding have the following problems: the welding area is easy to deform, affecting the appearance and function; the bonding is not strong or aging and falling off, there is a risk of leakage; chemical residue pollution is not conducive to cell culture; the processing cycle is long and it is difficult to achieve automated mass production.
Therefore, the introduction of ultrasonic welding technology has become an ideal solution to improve welding quality, achieve pollution-free connection and improve production efficiency.
2. Principle and system composition of culture bottle ultrasonic welding machine
Ultrasonic welding is a technology that transfers heat energy to the plastic joint through high-frequency mechanical vibration, causing it to melt instantly and then complete fusion. It does not require the addition of any adhesive or screws, and relies entirely on the friction between molecules to generate heat to achieve a firm connection.

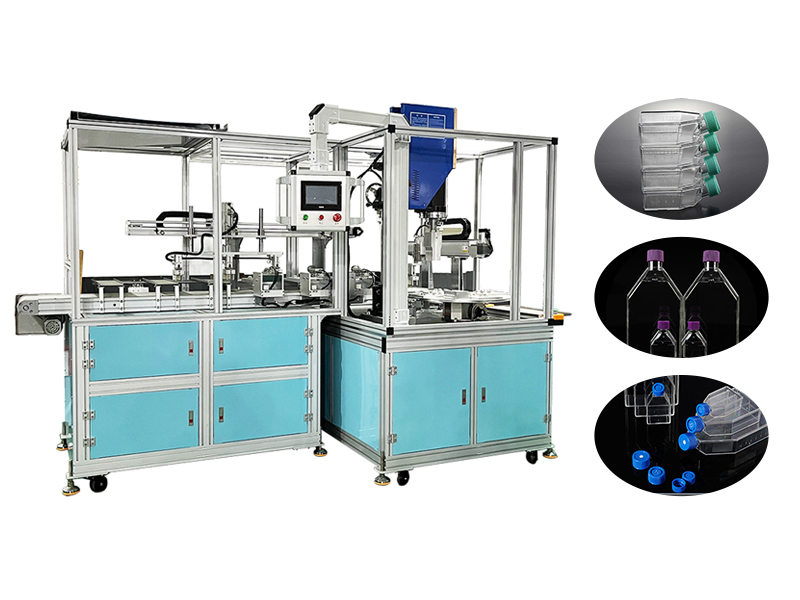

Ultrasonic welding machines for culture bottles usually consist of the following core systems:
Ultrasonic generator: responsible for converting electrical energy into high-frequency electrical oscillation signals and transmitting them to the transducer to form ultrasonic vibrations ranging from 20kHz to 40kHz.

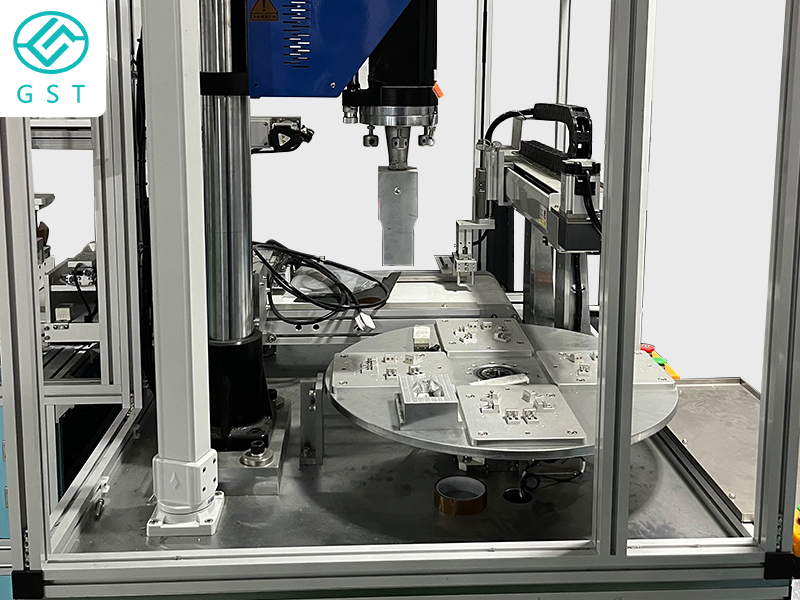

Transducer and welding head system: convert the electric vibration signal into mechanical vibration, and precisely act on the welding area through the customized welding head to transfer energy to the bottle body interface.
Presser structure system: control the welding pressure and time through pneumatic, servo or electric to ensure uniform force and firm bonding of the welding parts.

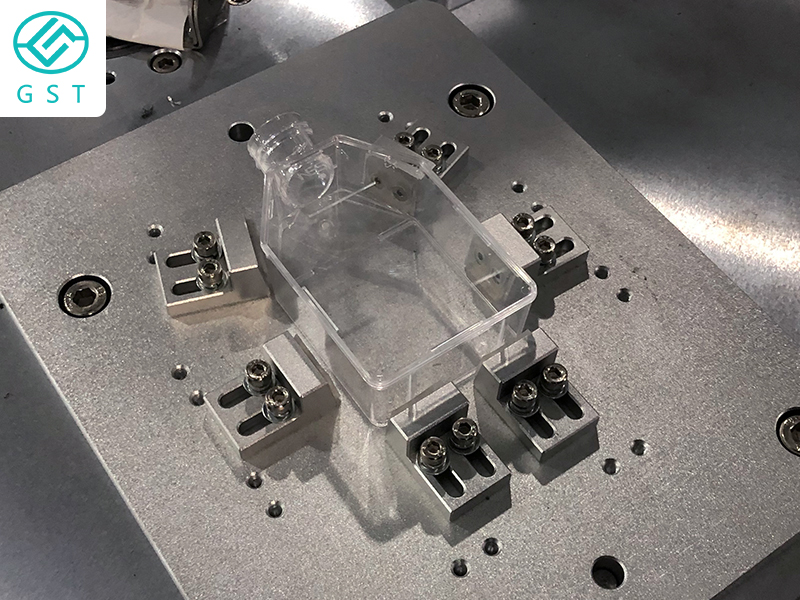

Fixture positioning system: customize special fixtures to ensure the precise and consistent position of the culture bottle during the welding process to avoid dislocation or offset.
Control system: equipped with PLC and touch screen to set welding parameters (time, energy, pressure, etc.) to achieve automatic control and data recording.
3. Technical Advantage Analysis
Clean and pollution-free: Ultrasonic welding is a physical fusion, without the need to add chemical adhesives, and meets the standards of non-toxic and residue-free medical-grade consumables.
Firm welding and good sealing: the weld is flat and has high bonding strength to avoid leakage or gas seepage, which is suitable for vacuum and sterile use requirements.
Fast welding speed and high efficiency: the single welding time is generally between 0.5 seconds and 2 seconds, which is suitable for continuous and batch production.
Strong adaptability: It can adapt to culture bottles of different sizes and structures, and has flexible switching capabilities.
Environmental protection and energy saving: There is no open flame, no smoke and dust in the process, and the energy consumption is low, which is conducive to green manufacturing and energy conservation and emission reduction.
High degree of automation: It can be integrated into the entire packaging or assembly production line to achieve full-process automated operation and intelligent monitoring.
The culture bottle ultrasonic welding machine is replacing traditional welding methods with its high efficiency, cleanliness and precision, and has become the mainstream technology in the field of culture bottle manufacturing. It not only optimizes the welding process and reduces manual errors, but also provides strong technical support for enterprises to achieve large-scale and high-standard production. With the continuous improvement of the process and the improvement of the level of intelligence, ultrasonic welding technology will provide more reliable, efficient and green solutions for the high-end manufacturing of plastic consumables such as culture bottles.
