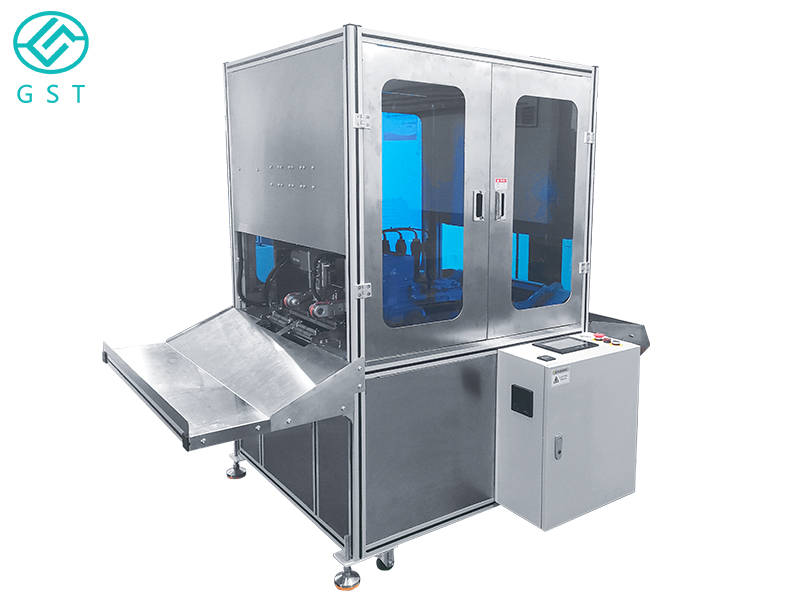

Product Overview: The automatic pipette stretching machine is an automated device developed specifically for laboratory consumables manufacturers, primarily used for the stretching and shaping of p
Product Overview:
The automatic pipette stretching machine is an automated device developed specifically for laboratory consumables manufacturers, primarily used for the stretching and shaping of plastic tubing for disposable pipettes. Through precise heating and stretching control, this machine achieves stable elongation and uniform shaping of the tubing, ensuring dimensional accuracy and batch consistency across the entire pipette. It significantly improves production efficiency and reduces labor costs, making it a vital piece of equipment in the manufacturing of medical and laboratory consumables.
Core Advantages:
High-Precision Forming: Utilizing an intelligent temperature control system and high-precision stretching dies, this machine ensures dimensional stability and uniform stretching of pipettes.
Fully Automatic Operation: Integrates automatic loading, heating, stretching, shaping, and unloading, enabling continuous production.
Improved Efficiency: High production speeds allow a single machine to replace multiple manual operators, significantly reducing production costs.
Intelligent Control: Equipped with a PLC control and touchscreen interface, it allows for easy parameter settings and supports switching between multiple specifications.
Quality Assurance: Finished pipettes are transparent and free of stretch marks, meeting the stringent quality standards of medical devices and laboratory consumables.
Technical Features:
Automatic constant temperature heating ensures uniform heating of the pipe, preventing deformation and defects.
Multiple simultaneous workstations improve production efficiency.
Flexible adjustment of drawing length and speed allows for production of pipettes of varying specifications.
Customizable designs are available to meet specific production capacity and process requirements.
This stretching machine is used for automatic positioning, automatic heating, automatic stretching, automatic cutting and automatic unloading of plastic tubes or PS tubes.
Applicable pipettes:
Plastic tubes, PS tubes and pipettes, etc.
Equipment features:
1) Automatic loading;
2) Automatic stretching of pipettes;
3) Automatic cooling of finished products and automatic cutting and molding;
4) Standard accessories for well-known brand machines;
5) All parts are surface treated, exquisite and generous;
Technical parameters:
Equipment model: GST-YYG102A
Pipette capacity: 1-10ml (1 device can only process a pipette of one capacity)
Production efficiency: 3000-3600 pieces/hour
Equipment size: length 227 * width 125 * height 4500px
Equipment weight: about 300KG
power (output): 3KW
Customized Support: Yes
