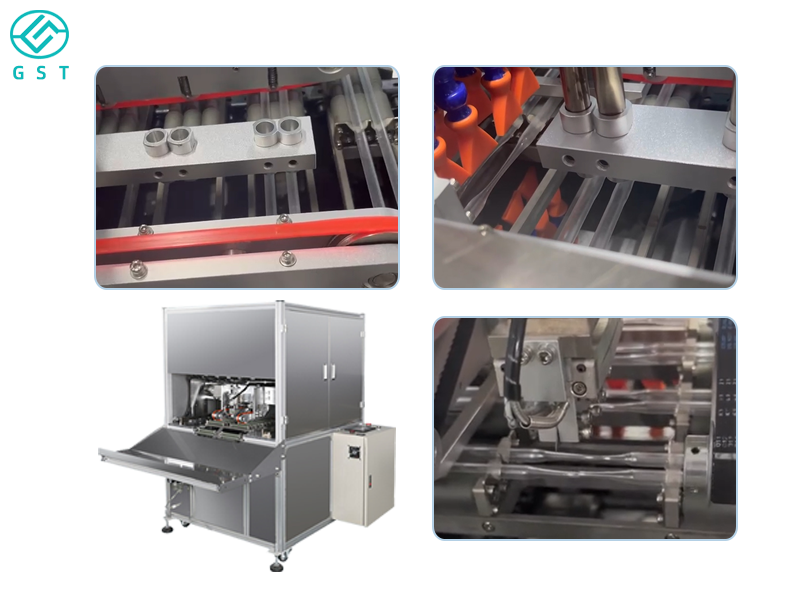

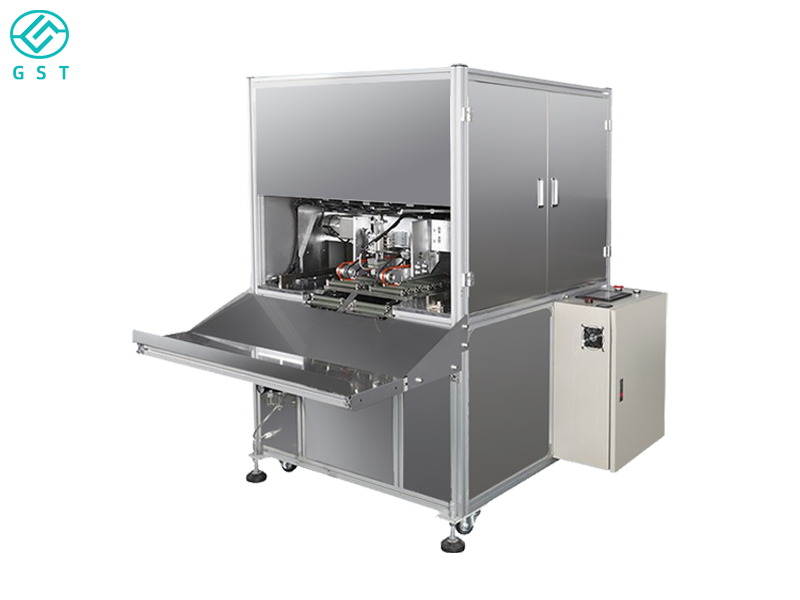

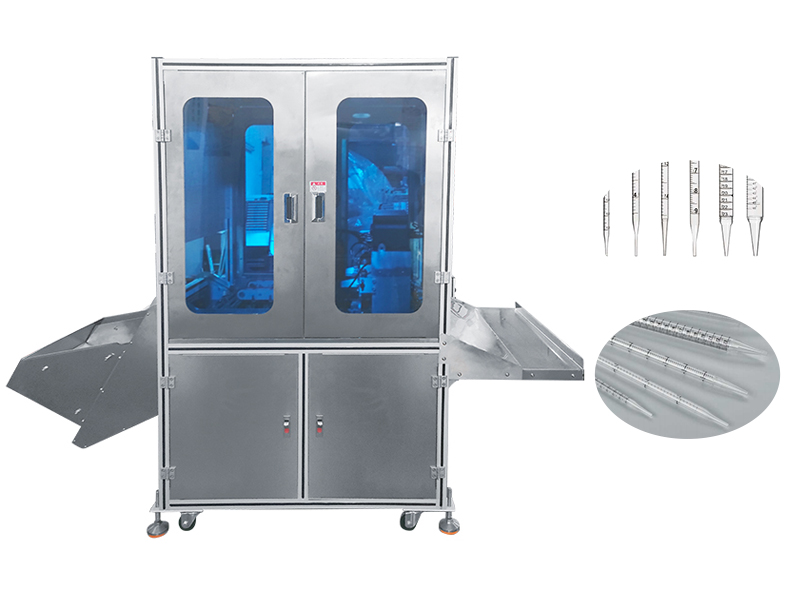

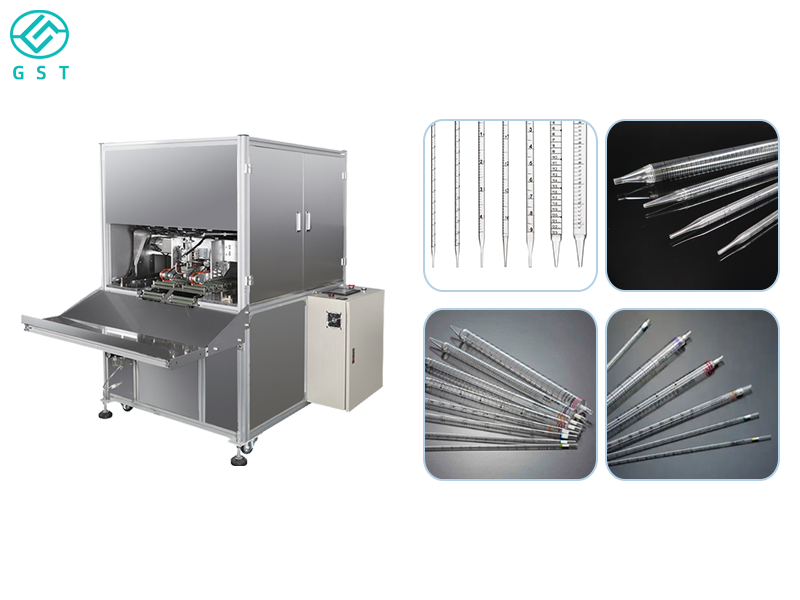

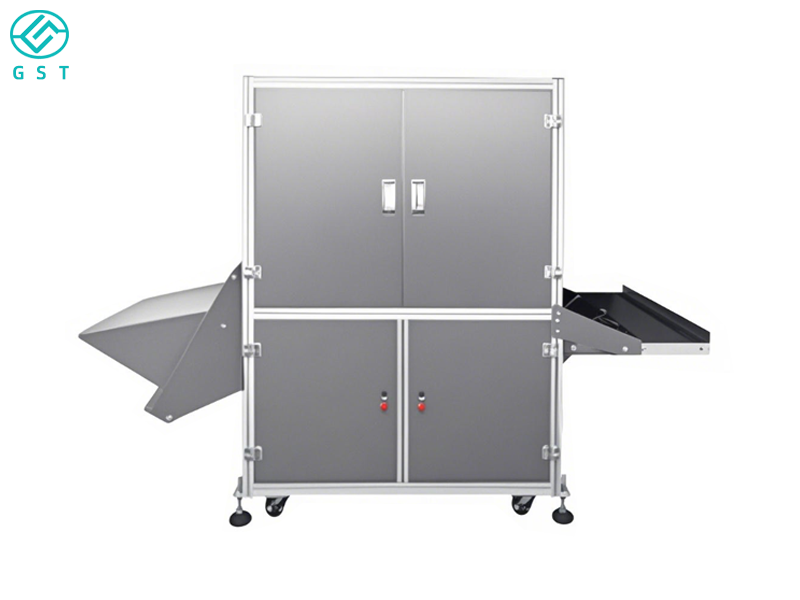

The automatic pipette stretch-forming machine is a highly efficient, automated machine designed specifically for plastic and PS tubing and pipettes. It performs the positioning, heating, stretching, cutting, and forming processes for pipettes. Its automated mechanical structure enables a continuous process from heating and stretching to cutting, cooling, and unloading, eliminating the need for manual intervention.
Automatic Loading and Positioning: The machine features an automatic feeding function, accurately feeding the pipette to be stretched into the stretching station for positioning.
Heating and Stretching: The heating module softens the pipette and then performs a controlled stretching process to achieve the desired length and wall shape.
Automatic Cutting and Forming: After stretching, the machine automatically cuts and forms the pipe, ensuring consistent dimensions.
Cooling and Unloading: After forming, the pipe is cooled to ensure a stable shape before being automatically unloaded from the production line.
High Efficiency and Consistency: The automated process ensures consistent performance for each pipe during stretching, significantly reducing labor and error rates.
Stability and Reliability: The rational structural design and precise process control ensure long-term, continuous operation.
Modularity and compatibility: Simply replace fixtures or adjust parameters to accommodate different tubing specifications, flexibly meeting production needs.
Strong line integration capabilities: Seamlessly connect with upstream equipment such as tube cutting, chip blowing, welding, printing, and testing to create a complete automated pipette production line.
Technical parameters:
Equipment model: GST-YYG102A

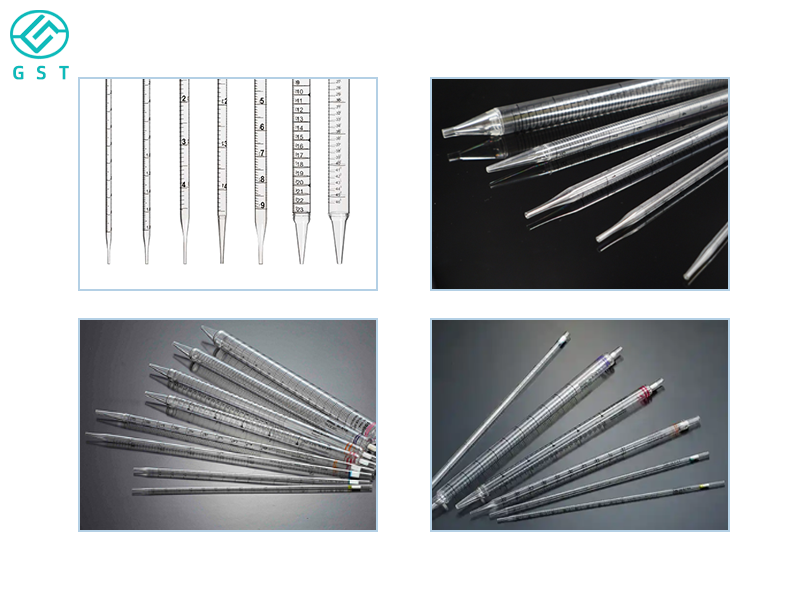

Pipette capacity: 1-10ml (1 device can only process a pipette of one capacity)
Production efficiency: 3000-3600 pieces/hour
Equipment size: length 160 * width 100 * height 170cm
Equipment weight: about 750KG
power (output): 3KW
Customized Support: Yes
