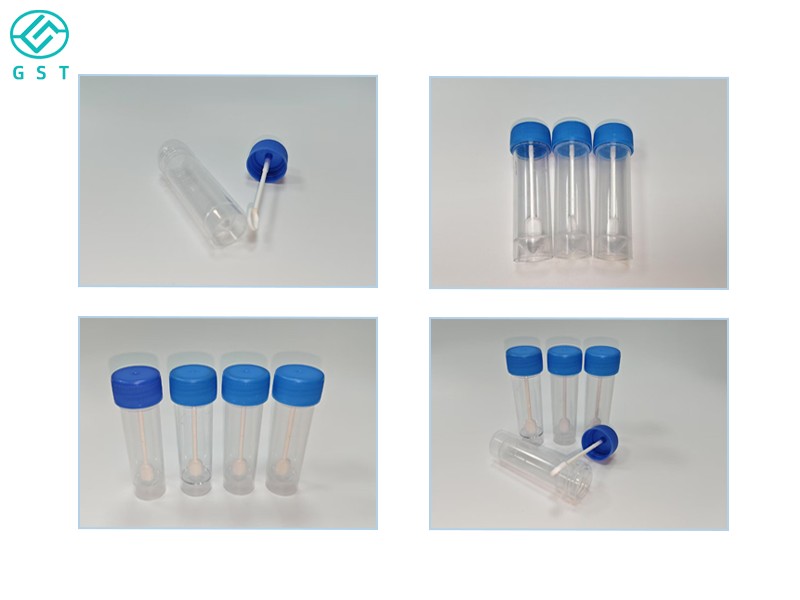

The automatic fecal test tube assembly machine is a highly efficient, automated device designed specifically for the medical testing industry. It assembles fecal test tubes and related accessories (

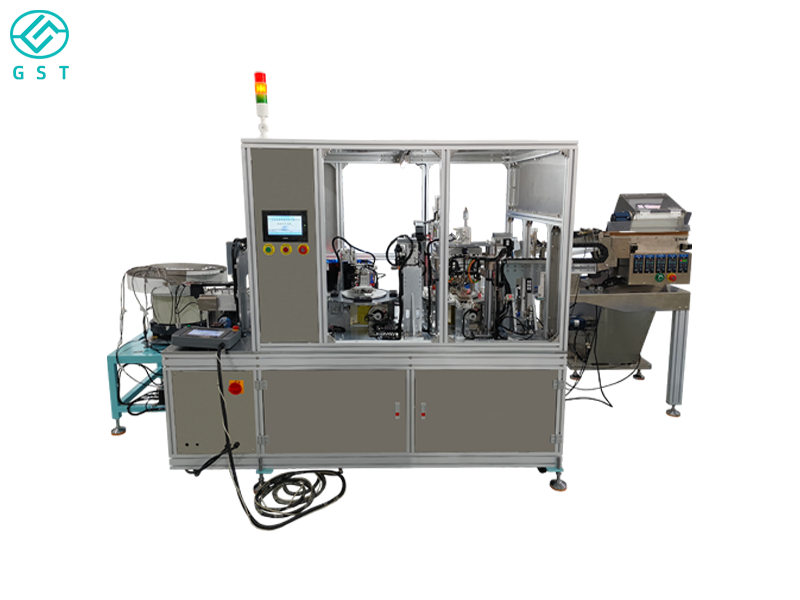

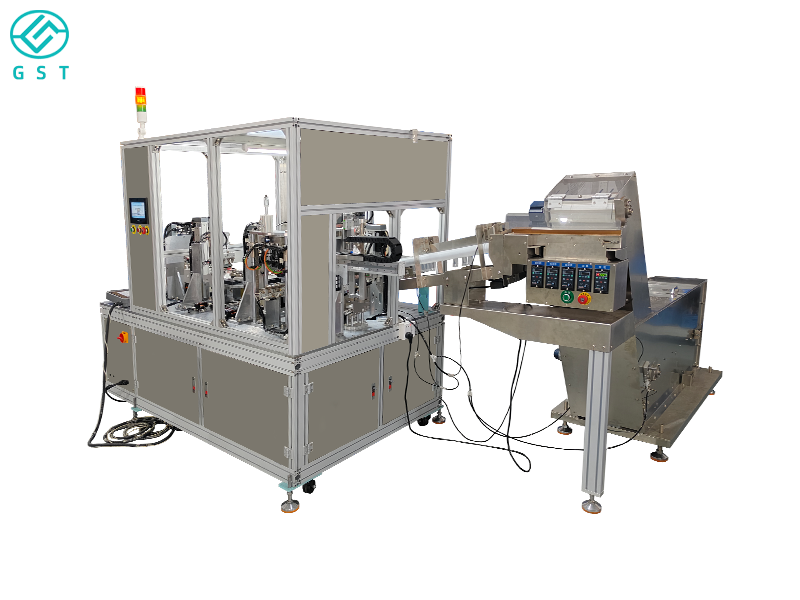

The automatic fecal test tube assembly machine is a highly efficient, automated device designed specifically for the medical testing industry. It assembles fecal test tubes and related accessories (such as caps, seals, and brackets). It integrates material loading, positioning and assembly, capping or plug-in connection, online inspection, and discharge, significantly improving production efficiency and assembly consistency.

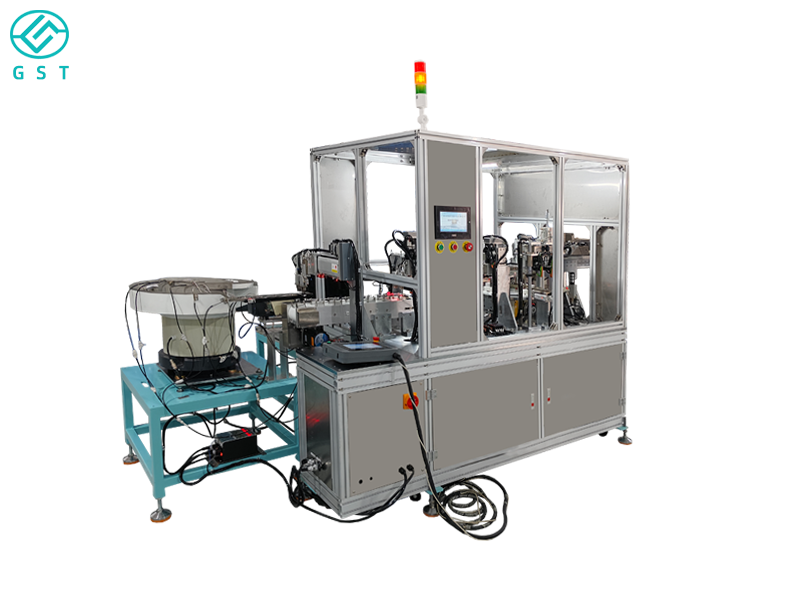

Automatic loading and sorting: Using a vibrating plate or hopper feed method, fecal test tubes and accessories are automatically sorted and directed to the assembly location.

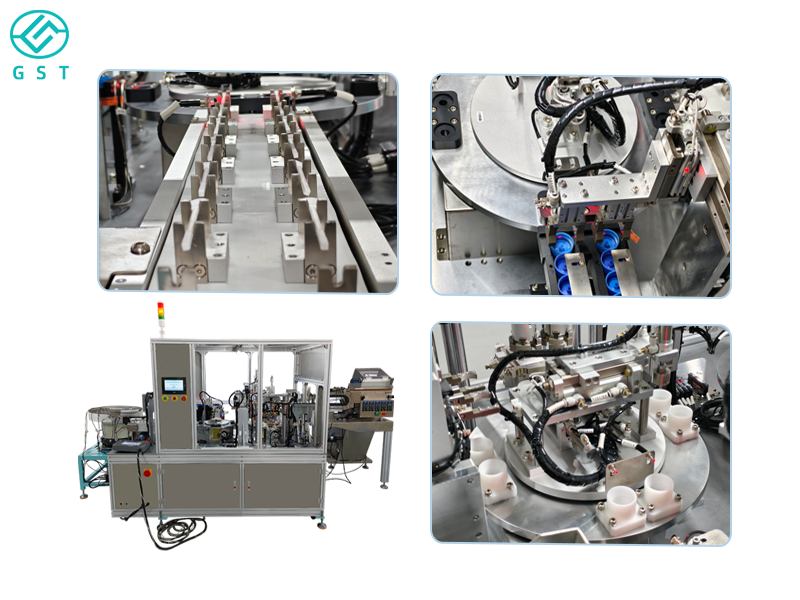

Precise positioning and assembly: Mechanical positioning fixtures and visual or photoelectric inspection systems ensure accurate alignment and stable assembly of tubes and accessories, including plug-in connection, capping, and press-fitting.
Inline inspection and rejection: Equipped with inspection devices (such as optical, pressure, and torque sensors), each assembled fecal test tube is quality-checked and rejected.
Strong flexibility and compatibility: The machine's modular design allows for quick changes in fixtures or parameters to accommodate different fecal test tube specifications, sizes, and shapes, enabling adaptability to multiple specifications.
Intelligent Control System: Utilizing a PLC + touch screen (HMI) interface, the system synchronizes the operation of each module and provides real-time monitoring of device status and alarm notifications.
High Stability and Durability: The system is constructed from high-quality structural components, and moving parts are precision-machined and lubricated, ensuring long-term stable and reliable operation.
Dust-Free Design: The device housing and product-contact parts are constructed from stainless steel or corrosion-resistant materials, resulting in a compact, easy-to-clean structure suitable for cleanroom production environments.
Full-Line Integration: The system seamlessly integrates with front-end chip blowing, cleaning, and printing equipment, as well as back-end packaging, labeling, and sealing equipment, to form a complete automated fecal test tube production line.
In use, the automated fecal test tube assembly machine replaces manual insertion and capping operations, significantly reducing human error, improving production cycle times, and ensuring the seal and consistency of assembled products. It is a crucial piece of equipment for manufacturers of in vitro diagnostic and clinical testing equipment and reagent and consumables companies in hospitals, aiming to improve production capacity and quality.
Equipment Details:
model number: GST-YBG001A
Sizes: L380cm*W270cm*H170cm
Weight: 1200kg
Power: 2.5kW
Production Capacity: 2200 pieces/hour
Voltage: 220V
Customized Support: Yes
