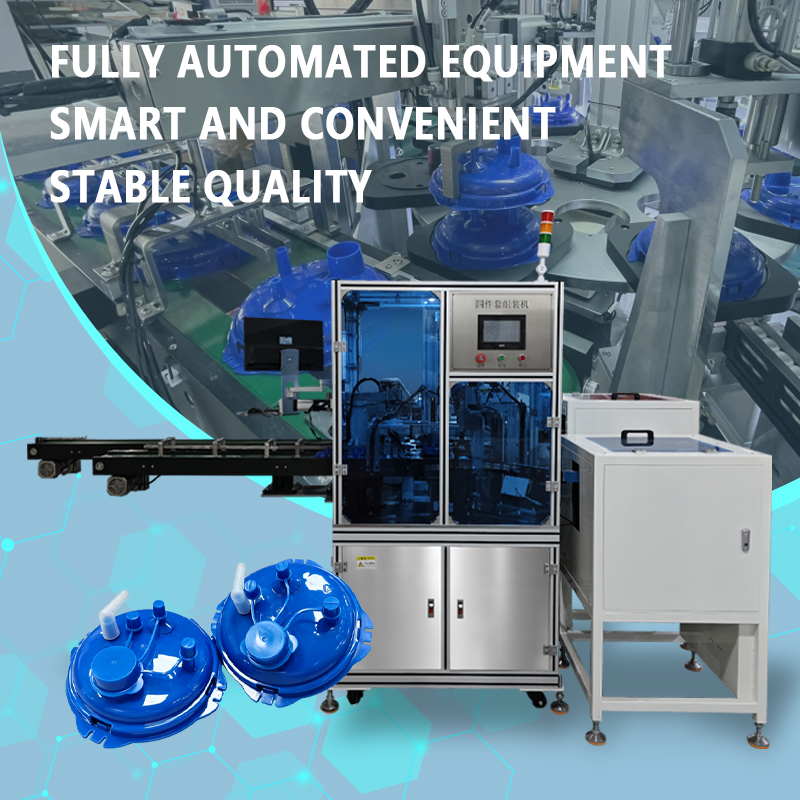

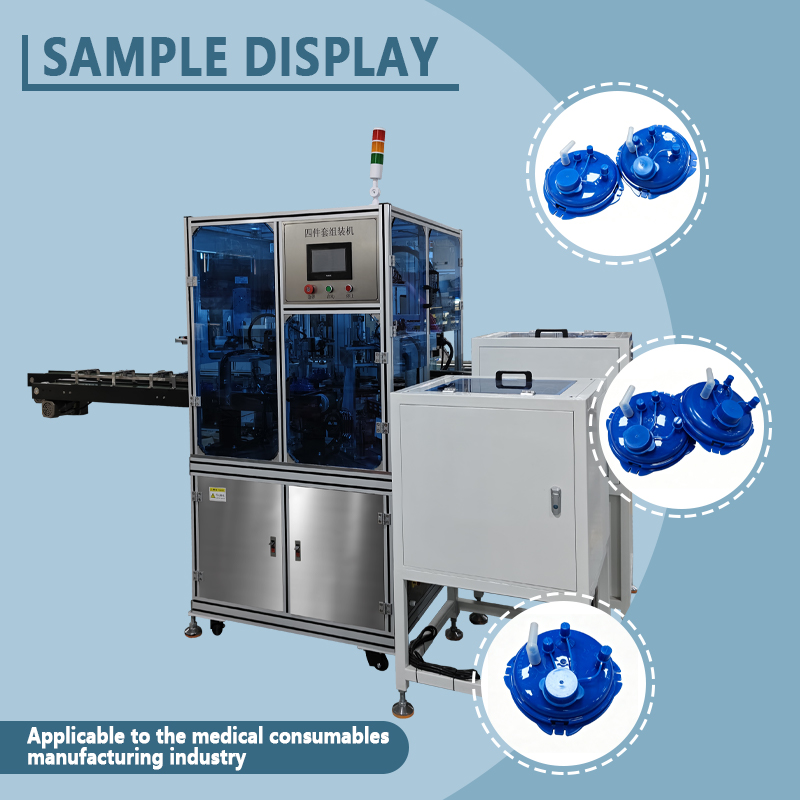

The Guanshentai Automatic Waste Container Cap Assembly Machine is specialized equipment designed for the fully automated assembly of waste container caps (comprising multiple components such as the inner plug, outer cap, and sealing ring). The system integrates automatic feeding of the cap body, precision pressing of the inner plug, automatic fitting of the sealing ring, screwing or pressing of the outer cap, and inspection and unloading of finished products. It delivers a one-stop, fully automated assembly process—transforming bulk components into finished caps—with a production rate of 600–1,200 units per hour, effectively replacing traditional manual assembly methods.
Key Advantages:
Multi-Component Collaborative Assembly: The machine features a multi-station collaborative platform that utilizes a synchronous rotary table or linear conveyor mechanism for efficient transfer between stations. It sequentially executes critical processes—such as precision-pressing the inner plug into the cap body, automatically expanding and fitting the sealing ring, and screwing or pressing the outer cap into place—ensuring high assembly precision and stable cycle times.
Automatic Sealing Ring Fitting: Utilizing a mechanism that combines a conical guide sleeve with expansion grippers, the system uniformly expands O-rings or gaskets before precisely releasing them into the cap's sealing groove. The expansion range is adjustable and controlled, ensuring the sealing ring seats perfectly without twisting or rolling, thereby guaranteeing the cap's sealing performance.
Precision Screwing/Pressing Mechanism: For threaded caps, the machine is equipped with a servo-driven screwing mechanism; rotation count and torque can be precisely set to ensure the outer cap is securely fastened to the body with optimal tightness, preventing stripped threads or slippage. For snap-fit caps, a servo-controlled press-fitting mechanism ensures precise assembly with stable, controllable pressing force.

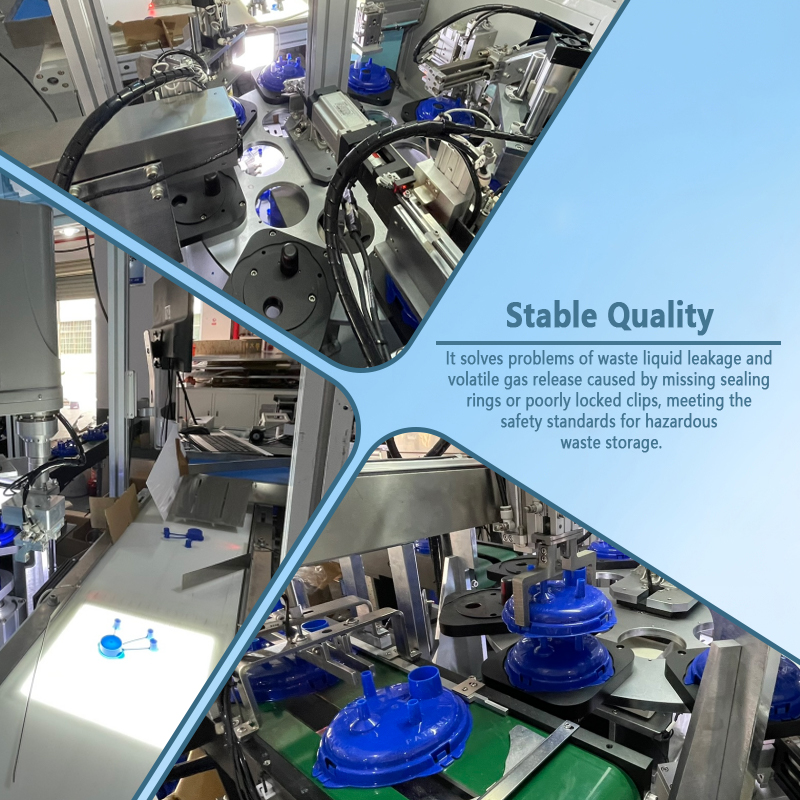

Error Prevention and Inspection: Equipped with fiber-optic sensors and pressure-sensing devices, the system offers multiple error-prevention functions, including alarms for material shortages, monitoring of inner plug press-in depth, detection of missing sealing rings, and verification of proper screwing or pressing. Defective products are automatically separated to ensure a high yield of qualified finished products.
Multi-specification Compatibility: By swapping positioning fixtures, seal expansion guides, and screwing/press-fitting molds, the machine accommodates the assembly needs of waste liquid drum lids with various diameters (20–120mm) and structures (threaded or snap-fit), ensuring flexible and convenient product changeovers.
Clean and Safe Design: The machine features an enclosed protective structure that effectively isolates particulate contamination generated during assembly, making it suitable for both standard industrial environments and cleanroom-grade workshops. It is equipped with safety light curtains and emergency stop devices to ensure comprehensive operator safety.
Parameter and Recipe Management: Utilizing a PLC and touchscreen HMI, key parameters—such as press-fit stroke, screwing rotations/torque, and seal expansion stroke—can be precisely configured. Multiple product recipes can be saved and recalled with a single touch during changeovers, significantly reducing setup time.
Application Scenarios:
Widely applicable to the large-scale, standardized automated assembly of various industrial and consumer drum lids, including those for hazardous waste treatment (waste liquid and chemical drums), industrial packaging (paint, lubricant, and chemical raw material drums), environmental protection/sanitation (trash and wastewater collection drums), and daily chemical/food industries (large-capacity liquid containers). With its efficient, precise, and stable performance, the Guanshentai automatic waste liquid drum lid assembly machine helps manufacturers upgrade their assembly processes to automation, effectively ensuring sealing reliability and product consistency.
Technical parameters:
Model Number: GST-FYTG103A
Sizes: L1800*W1550*H2100(mm)
Production Capacities: 15pcs/min
VOLTAGE:220v
Power (Output): 3KW
Customized Support: Yes
